Wilwood Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox Front Brake Conversion, Red Calipers and Plain Rotors (2024)

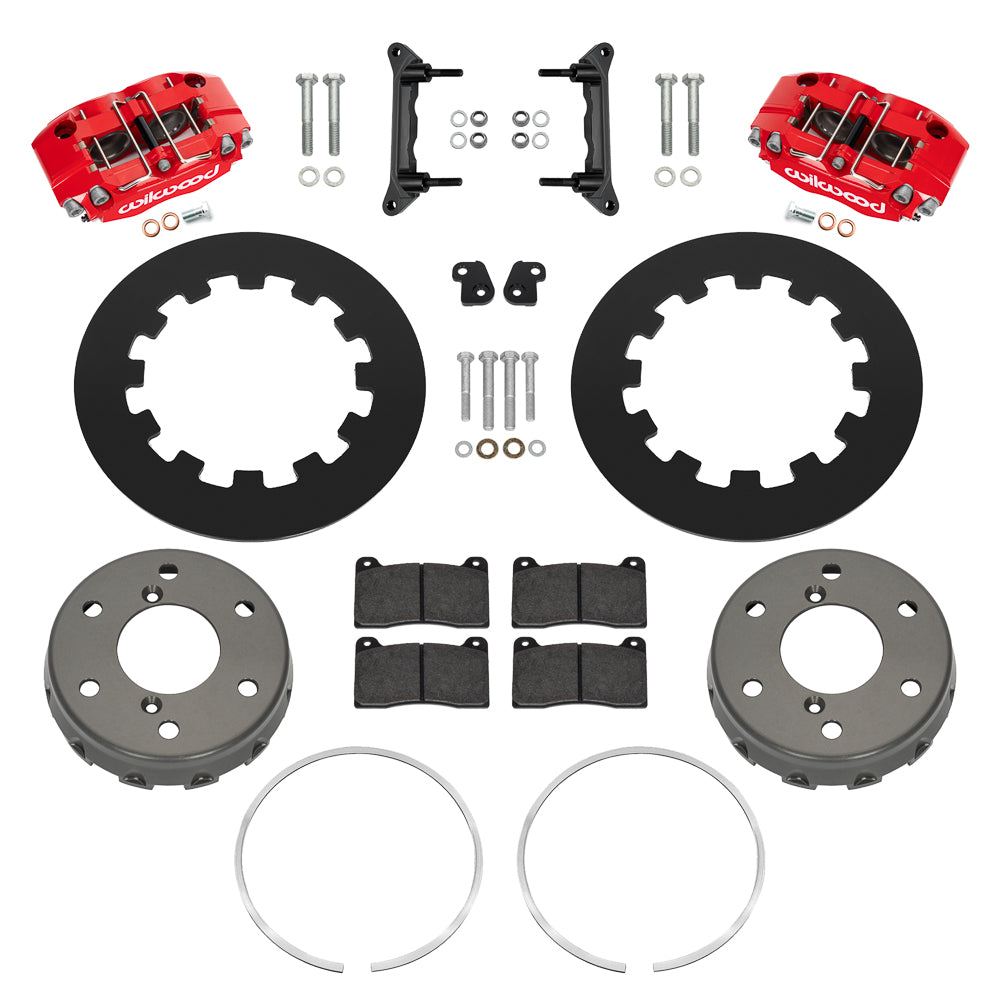

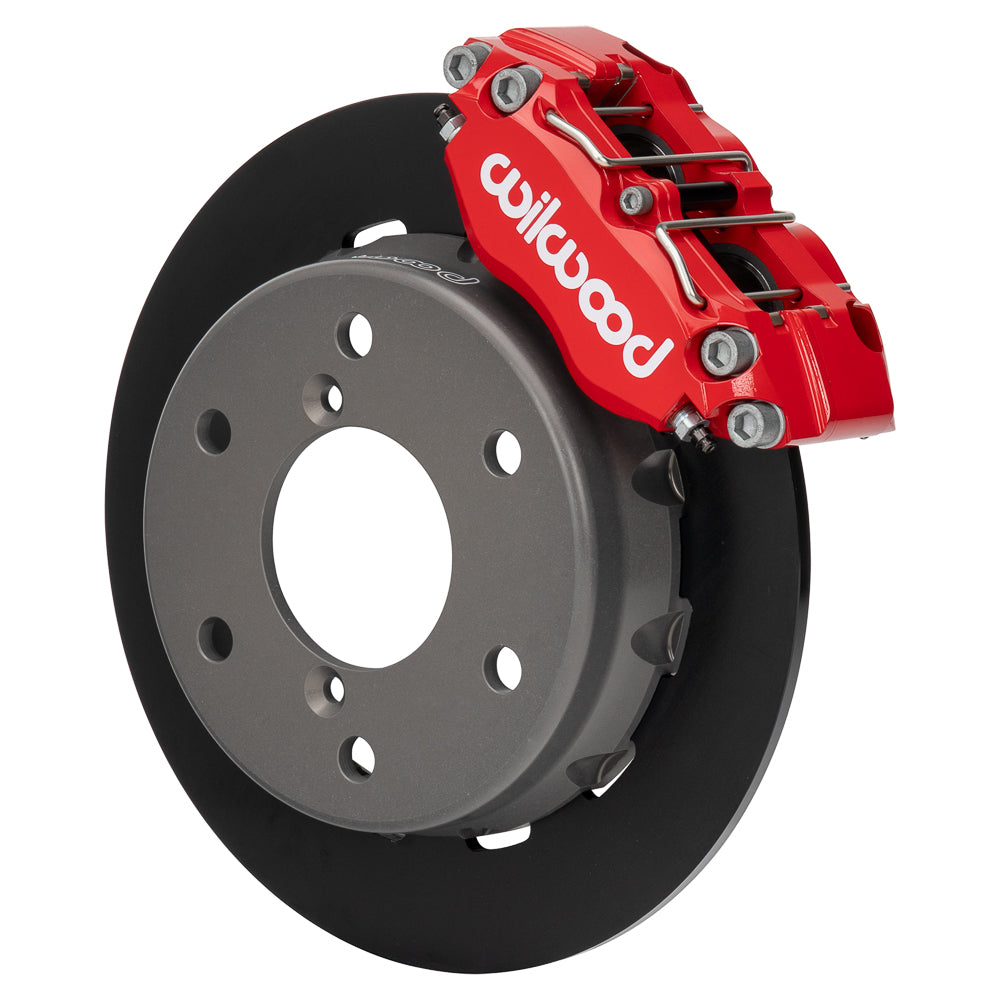

Plain steel front rotors and red NDPR calipers suit Maverick R, R X, R X RS and R X RS Smart-Shox. Confirm six-lug mounting and steering clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Caliper attachment: Radial
• Brake pads supplied: BP-20
• Piston type: Stainless
• Service-caliper port: M10 x 1.25
• Rotor assembly specification: 11.60 × 0.25 inches; Steel; Plain Face
• Wheel envelope: 15 in; the complete wheel-clearance drawing determines fit
• Rotor hat bolt-circle specification: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17946-R
• Application and supplied quantity: front conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: NDPR; 4 pistons per caliper; Red Powder Coat

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1625 requires modifying the factory steering stop near the lower ball joint and installing the supplied new stop bracket. Check steering lock and brake clearance after that work. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
