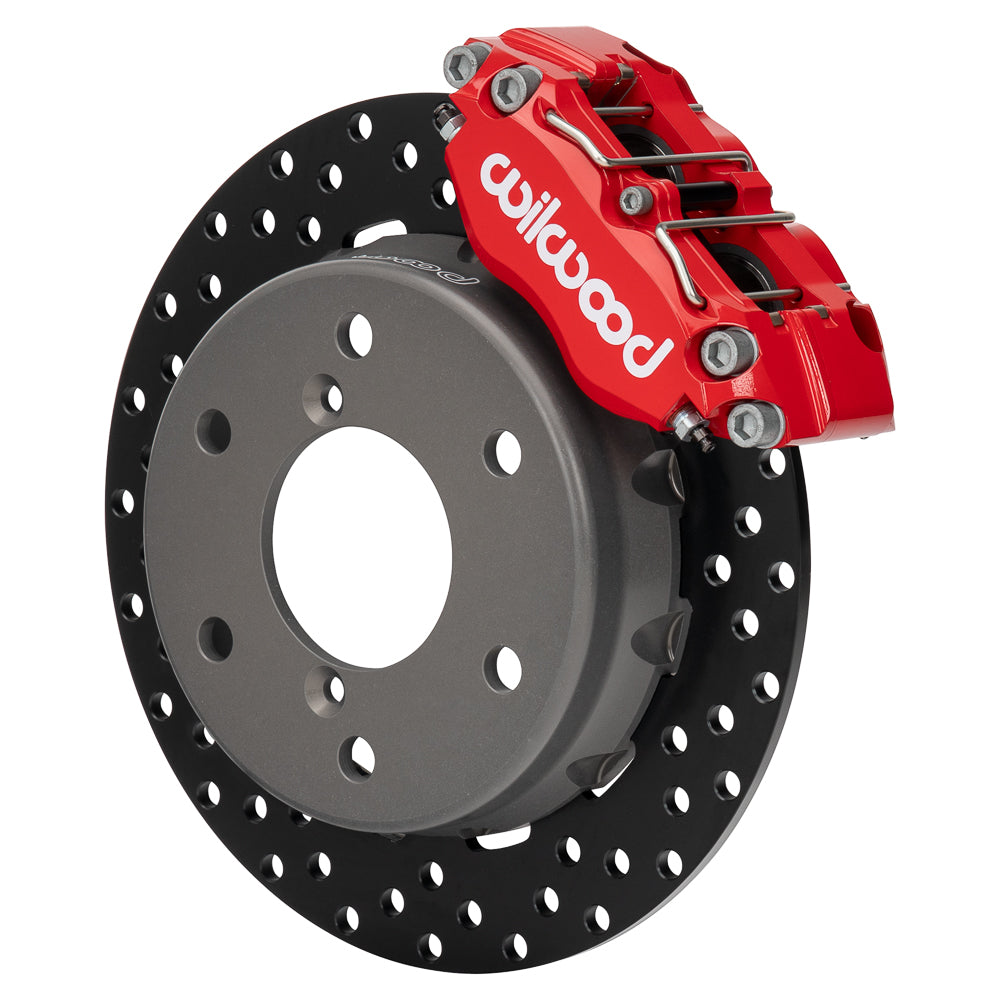

Wilwood Red NDPR Front Caliper and 11.60-Inch Drilled Rotor Kit for Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox (2024)

Red front NDPR brakes fit Maverick R, R X, R X RS and R X RS Smart-Shox six-lug hubs. Check the required steering-stop work and rotor envelope. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

• Hydraulic caliper inlet: M10 x 1.25
• Rotor dimensions and construction: 11.60 × 0.25 inches; Steel; Drilled
• Wheel-size reference: 15 in; the complete wheel-clearance drawing determines fit
• Rotor / hat axle-flange drilling: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17946-DR

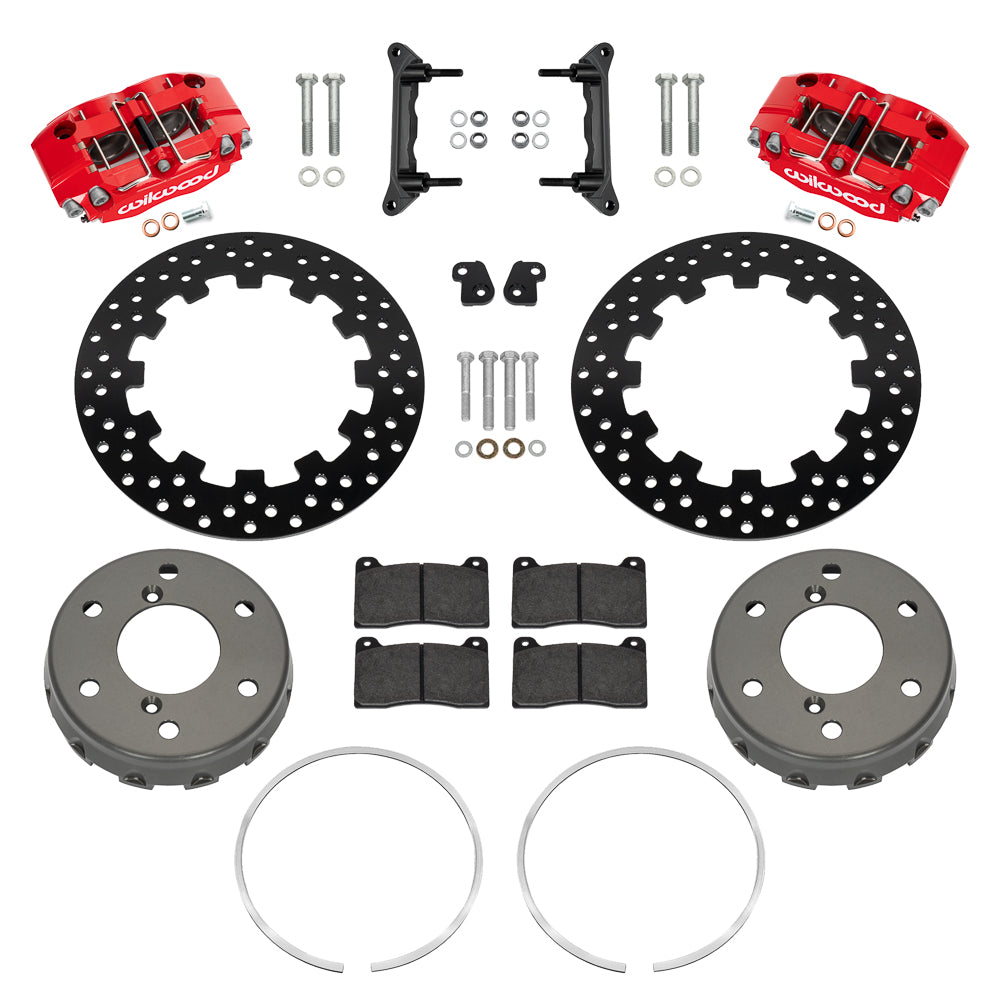

• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: NDPR; 4 pistons per caliper; Red Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-20
• Piston material: Stainless

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1625 requires modifying the factory steering stop near the lower ball joint and installing the supplied new stop bracket. Check steering lock and brake clearance after that work. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
