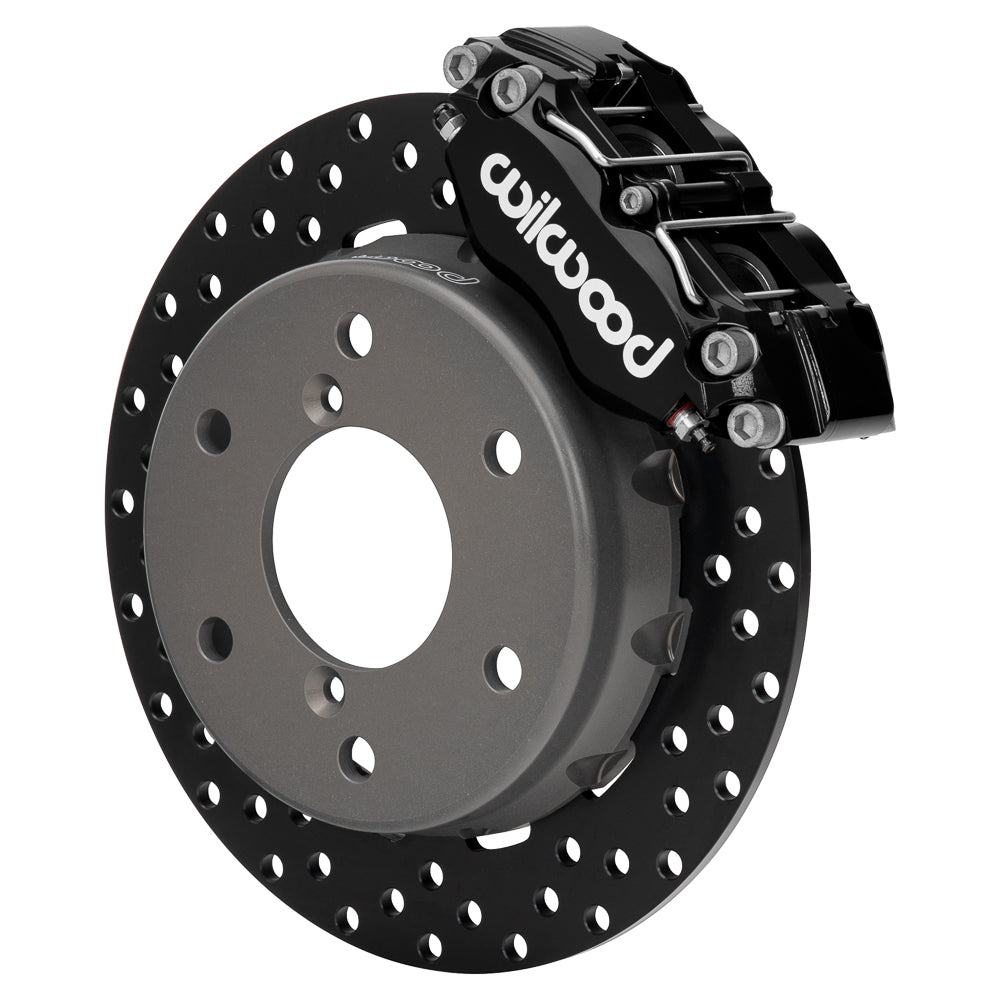

Wilwood Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox Front Disc Kit, Black Calipers and Drilled Steel Rotors (2024)

Maverick R, R X, R X RS and R X RS Smart-Shox front brakes use black calipers and drilled steel rotors. Match six-lug hubs and the clearance drawing. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

• Rotor hat bolt-circle specification: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17946-D

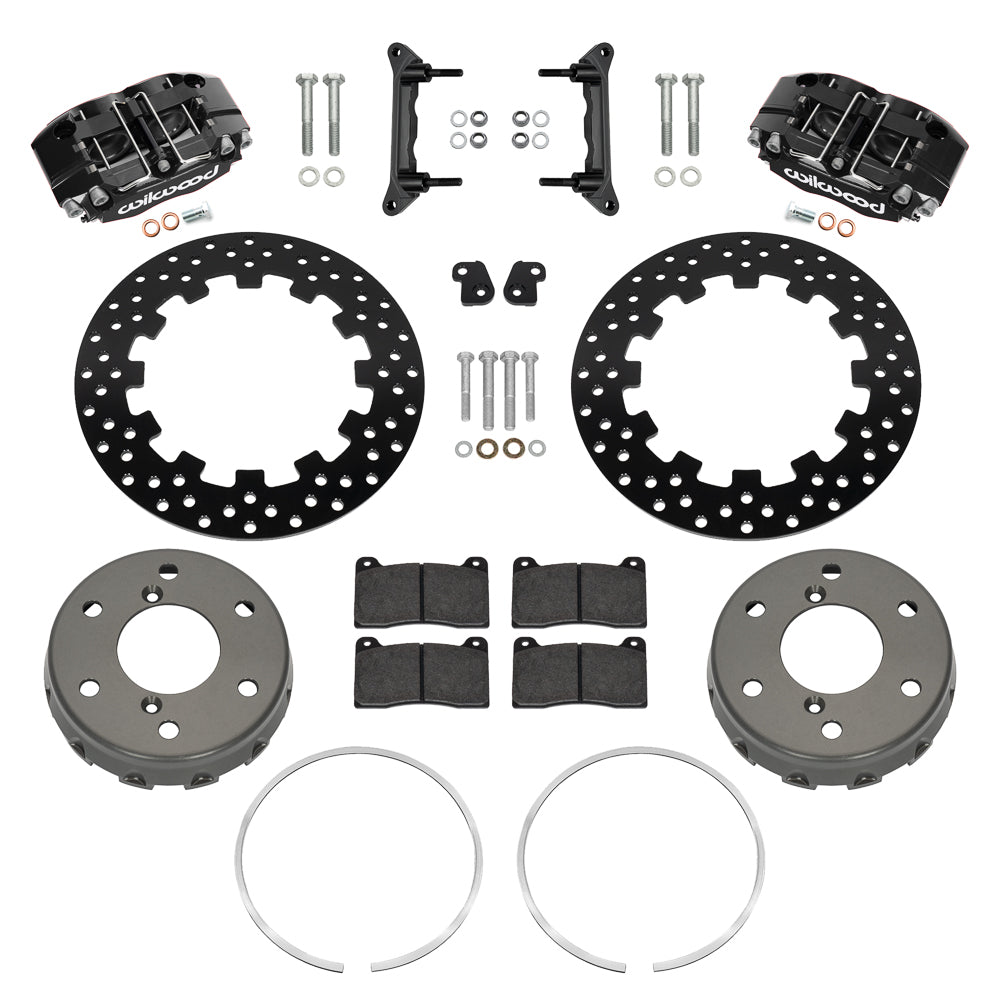

• Application and supplied quantity: front conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: NDPR; 4 pistons per caliper; Black Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-20
• Piston type: Stainless
• Service-caliper port: M10 x 1.25
• Rotor assembly specification: 11.60 × 0.25 inches; Steel; Drilled
• Wheel envelope: 15 in; the complete wheel-clearance drawing determines fit

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1625 requires modifying the factory steering stop near the lower ball joint and installing the supplied new stop bracket. Check steering lock and brake clearance after that work. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
