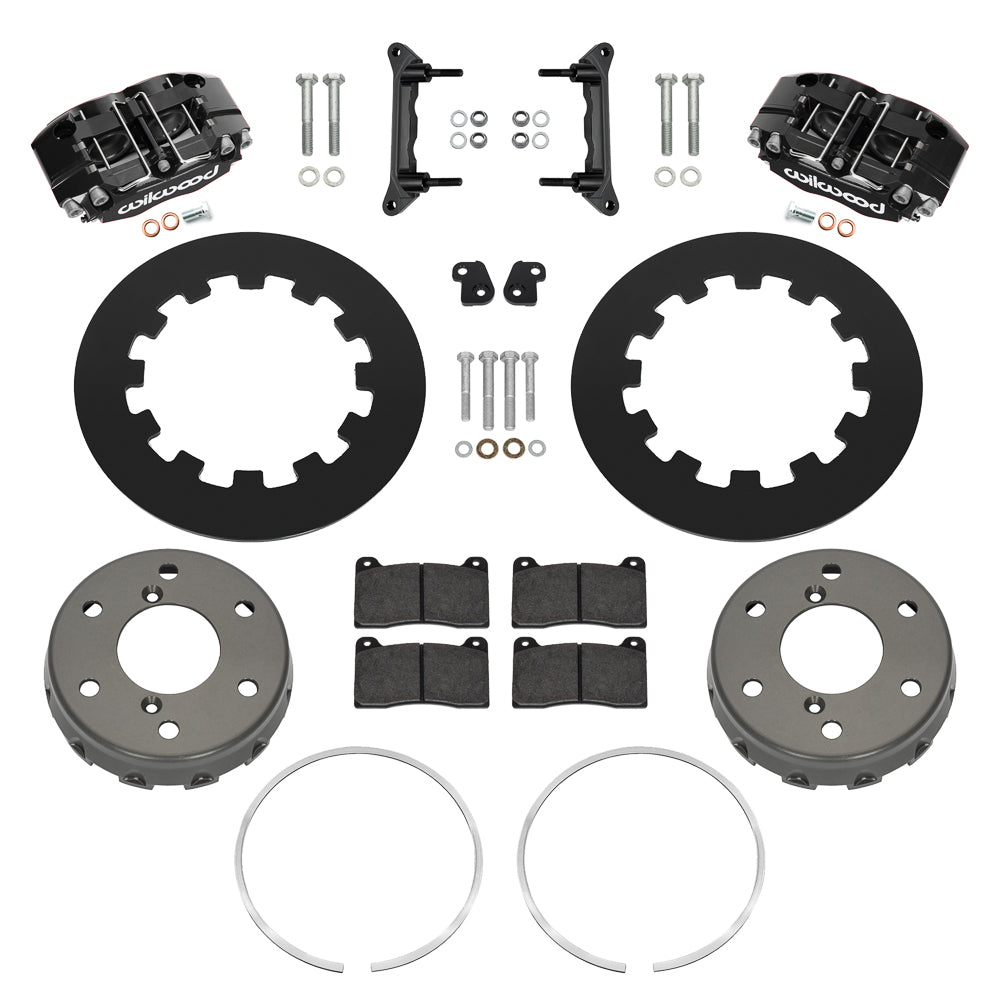

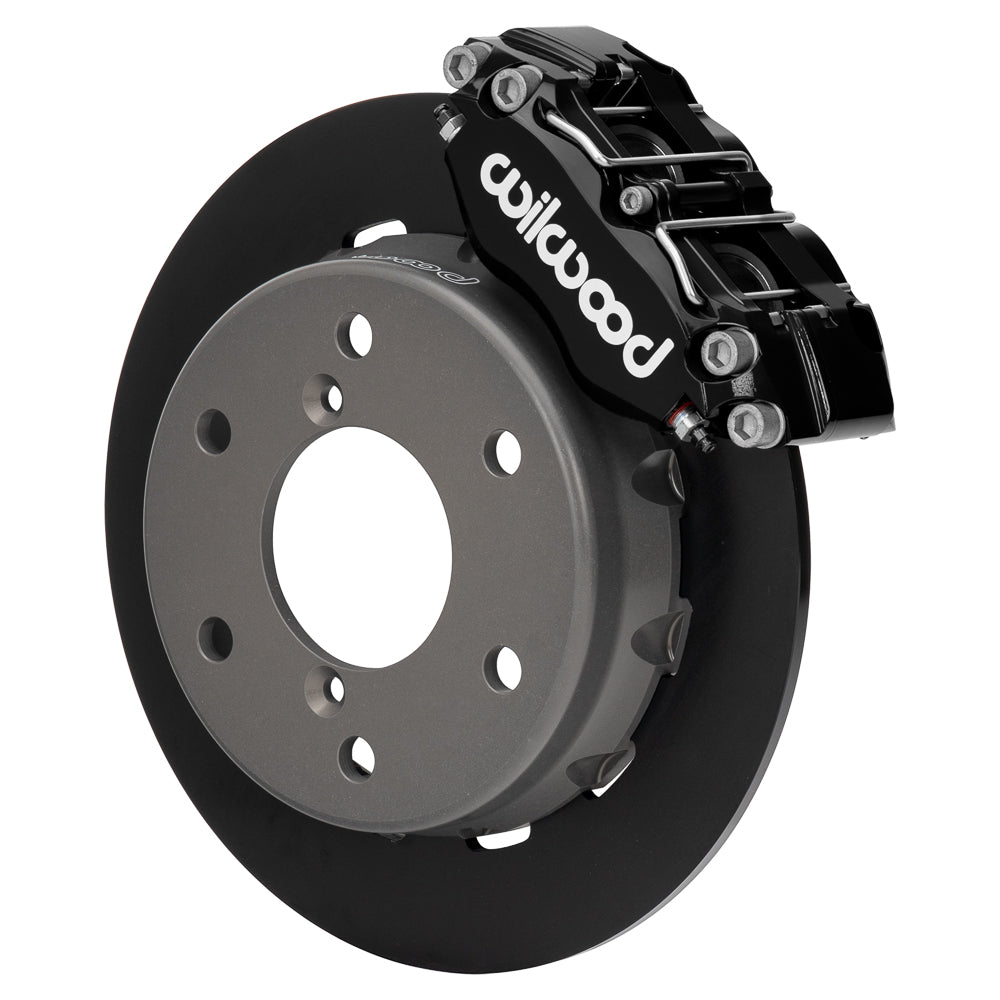

Wilwood Front NDPR Brake Kit, Black with 11.60-Inch Plain Rotors, Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox (2024)

Black NDPR front brakes suit Maverick R, R X, R X RS and R X RS Smart-Shox. Verify six-lug hubs and steering-stop clearance for the 11.60-inch rotors. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977. Its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications; each part must suit the requirements of the complete braking system.

Technical Details

• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17946
• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: NDPR; 4 pistons per caliper; Black Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-20
• Piston material: Stainless
• Hydraulic caliper inlet: M10 x 1.25
• Rotor dimensions and construction: 11.60 × 0.25 inches; Steel; Plain Face
• Wheel-size reference: 15 in; the complete wheel-clearance drawing determines fit
• Rotor / hat axle-flange drilling: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1625 requires modifying the factory steering stop near the lower ball joint and installing the supplied new stop bracket. Check steering lock and brake clearance after that work. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
