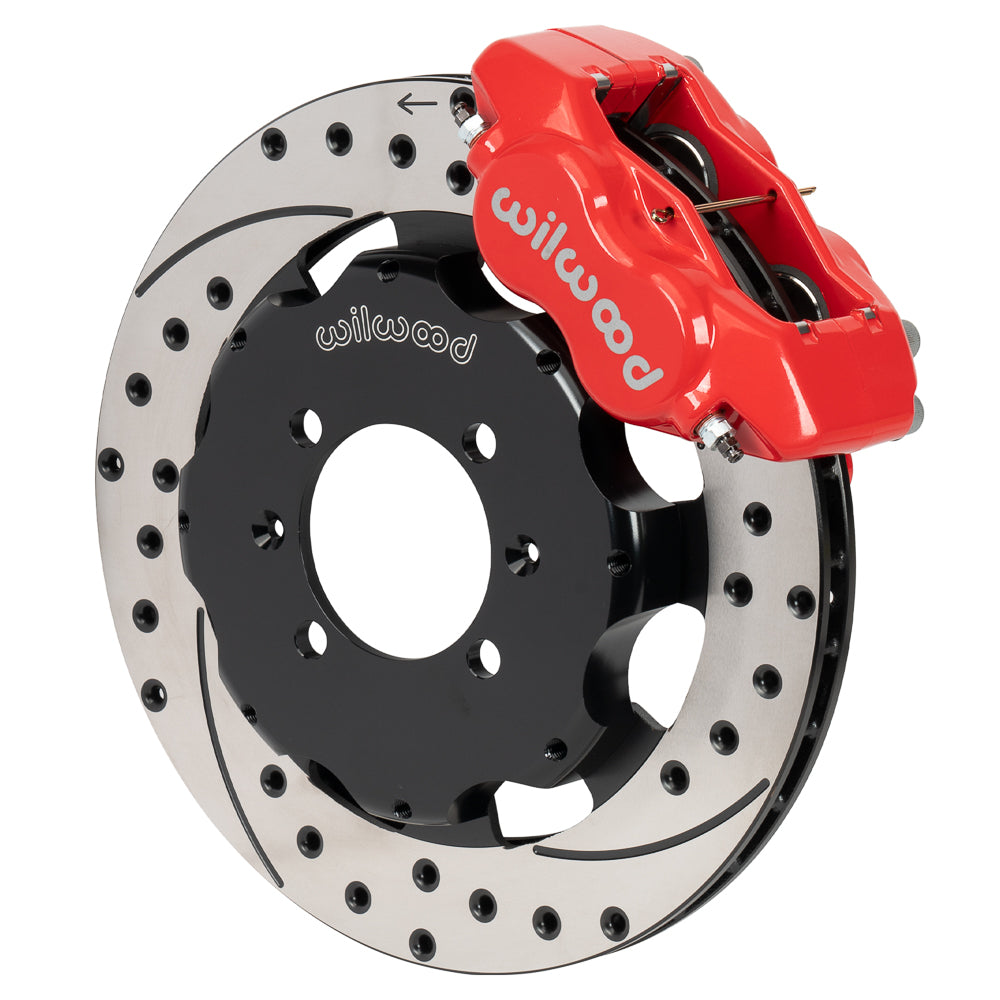

Wilwood Red Dynalite Front Calipers with SRP Rotors and Flexlines, Mazda Miata (1991–1997, 1999–2005)

Red Dynalite front brakes for Mazda Miata include 11.75-inch SRP rotors and hoses. Compare the model year, Sport Suspension details and wheel profile. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require individual components matched to the complete brake system.

Technical Details

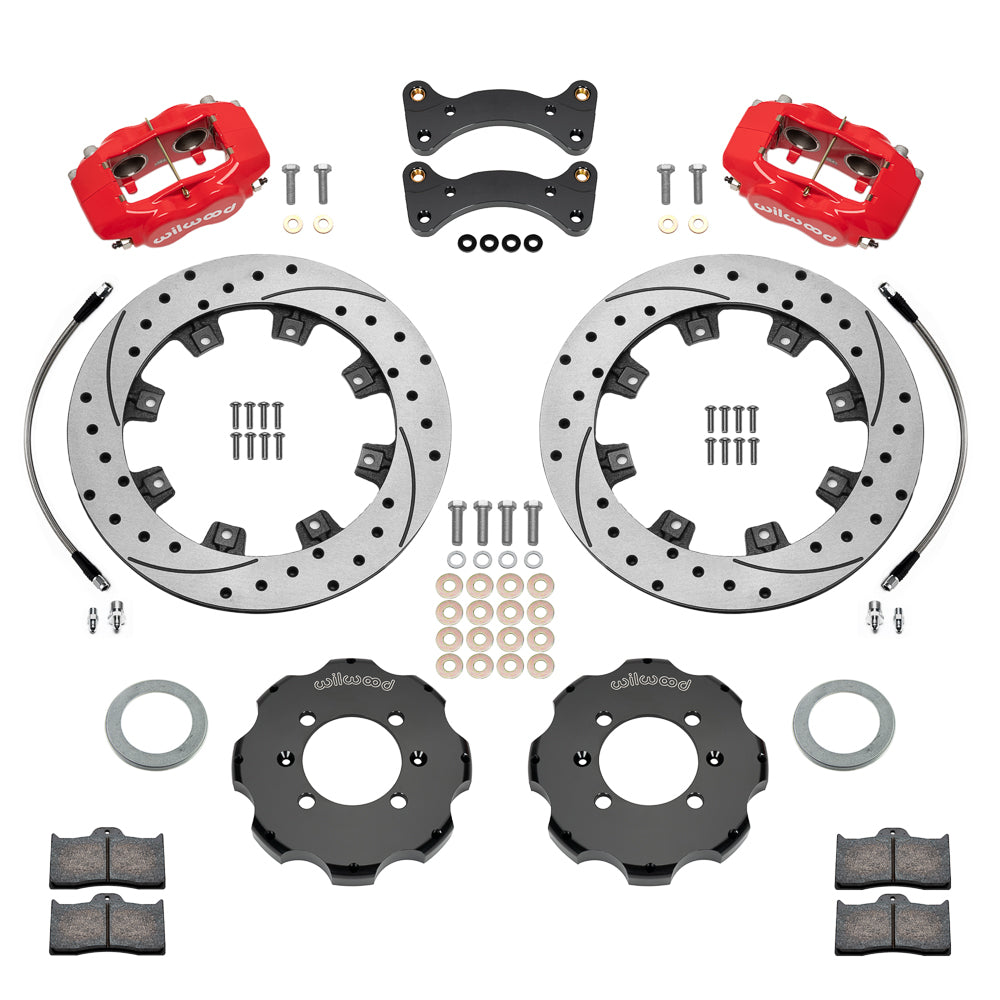

• Application and supplied quantity: front conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat
• Caliper attachment: Lug
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 11.75 × 0.81 inches; Iron; SRP Drilled & Slotted
• Wheel envelope: 15 in; the complete wheel-clearance drawing determines fit
• Rotor hat bolt-circle specification: 4 x 3.93 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic hose selection: Included; confirm correct routing and hard-line connection
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17935-DR

Fitment & Compatibility

Covers the listed Mazda Miata 1991–1997 and 1999–2005 rows, including the 2001 Sport Suspension VIN splits and later Sport Suspension entries. Confirm the installed front brake package, retained hub, 4 × 100 mm nominal mounting arrangement and full wheel profile; the 4 × 3.93-inch catalog drilling is the rotor/hat interface. Follow DS-1621 for caliper centering and supplied hose routing. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
