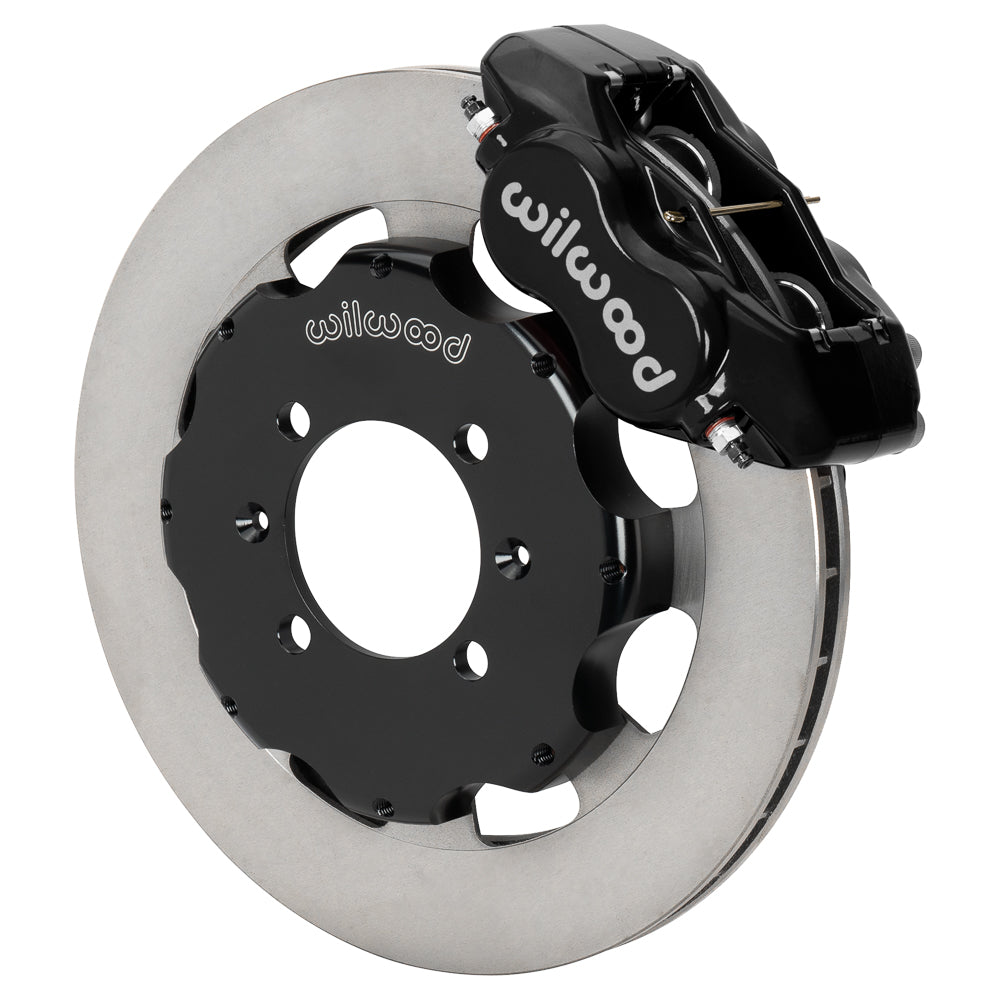

Wilwood Front Dynalite Brake Kit, Black with 11.75-Inch Plain Rotors and Hoses, Mazda Miata (1991–1997, 1999–2005)

Mazda Miata front brakes use black four-piston Dynalite calipers and 11.75-inch plain rotors. Check the listed year, suspension package and wheel fit. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems along with calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications each call for components matched to the overall braking arrangement.

Technical Details

• Rotor assembly specification: 11.75 × 0.81 inches; Iron; Plain Face
• Wheel envelope: 15 in; the complete wheel-clearance drawing determines fit
• Rotor hat bolt-circle specification: 4 x 3.93 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic hose selection: Included; confirm correct routing and hard-line connection
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17935

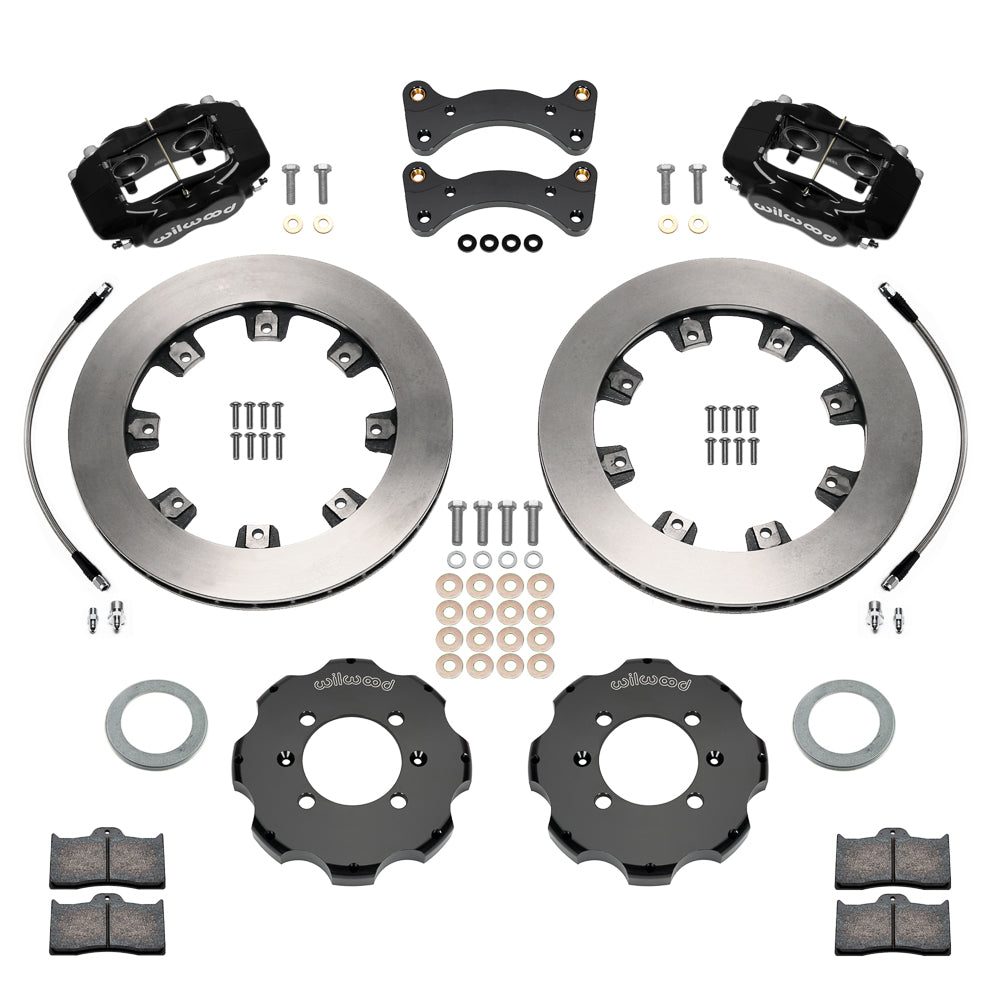

• Application and supplied quantity: front conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat
• Caliper attachment: Lug
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT

Fitment & Compatibility

Covers the listed Mazda Miata 1991–1997 and 1999–2005 rows, including the 2001 Sport Suspension VIN splits and later Sport Suspension entries. Confirm the installed front brake package, retained hub, 4 × 100 mm nominal mounting arrangement and full wheel profile; the 4 × 3.93-inch catalog drilling is the rotor/hat interface. Follow DS-1621 for caliper centering and supplied hose routing. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
