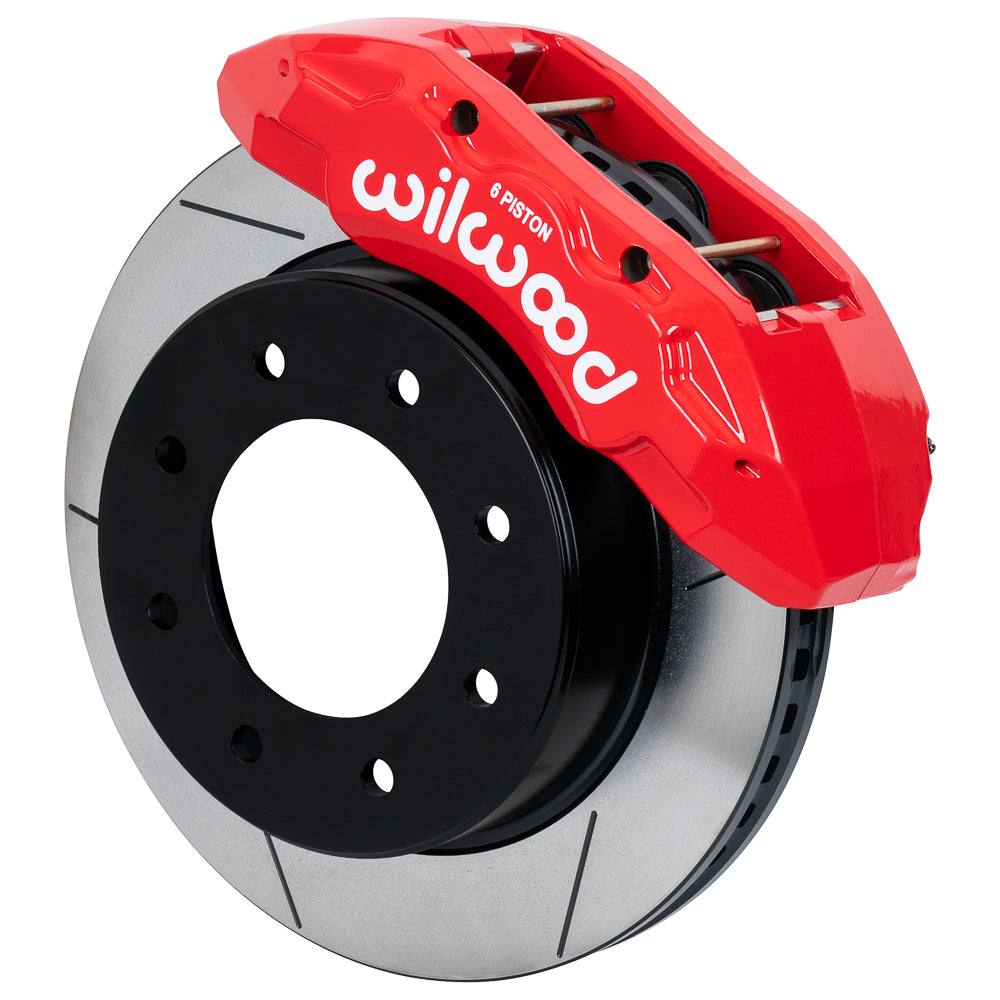

Wilwood Ford F-250/F-350 Super Duty Front Brake Package (2011–2012 4WD), Red TX6-DM Calipers, 15-Inch Slotted Rotors and Hoses

Fit red six-piston front brakes and 15-inch GT rotors to listed F-250 and F-350 Super Duty 4WD trucks. Verify wheel and hose-bracket clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

• Retained-hub rotor drilling: 8 x 6.693 in; 8 x 170 mm; verify the retained hub or axle flange separately
• Flexline supply: Included; confirm correct routing and hard-line connection
• Installation hardware: Included; verify the installed fastener engagement
• Items not supplied: spindles, wheel hubs, master cylinder, brake booster
• Wilwood part number: 140-17776-R

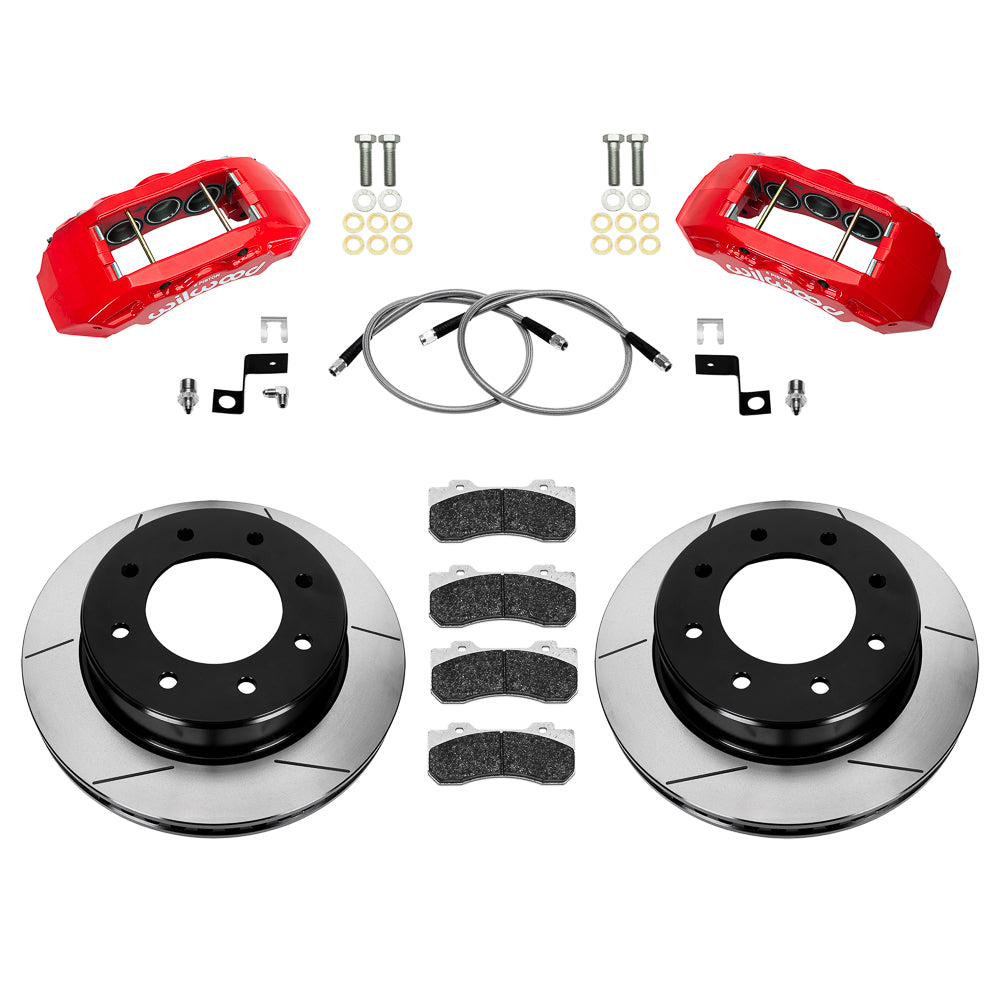

• Conversion type: front conversion kit; Sold as a kit.
• Caliper configuration: TX6-DM; 6 pistons per caliper; Red Powder Coat
• Bracket-to-caliper mounting: Lug
• Pad compound selection: BP-22
• Caliper piston specification: Stainless
• Hydraulic inlet thread: 1/8-27 NPT
• Brake-rotor package: 15.00 × 1.50 inches; Iron; GT Slotted
• Wheel-diameter reference: 20 in; the complete wheel-clearance drawing determines fit

Fitment & Compatibility

For the listed 2011–2012 Ford F-250 Super Duty 4WD and F-350 Super Duty 4WD single-rear-wheel configurations. Verify the exact axle position, eight-lug hub and factory brake arrangement. Follow DS-1582 for the hose-bracket attachment; some model years require drilling its mounting hole. A nominal 20-inch wheel is only a starting point: spoke shape, balance weights and inside-barrel clearance must also be verified. This kit supplies braided flexlines. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
