Wilwood Ram 1500 2WD Front Brake Conversion, Red Six-Piston Calipers and 13.38-Inch Slotted Rotors (2013–2018)

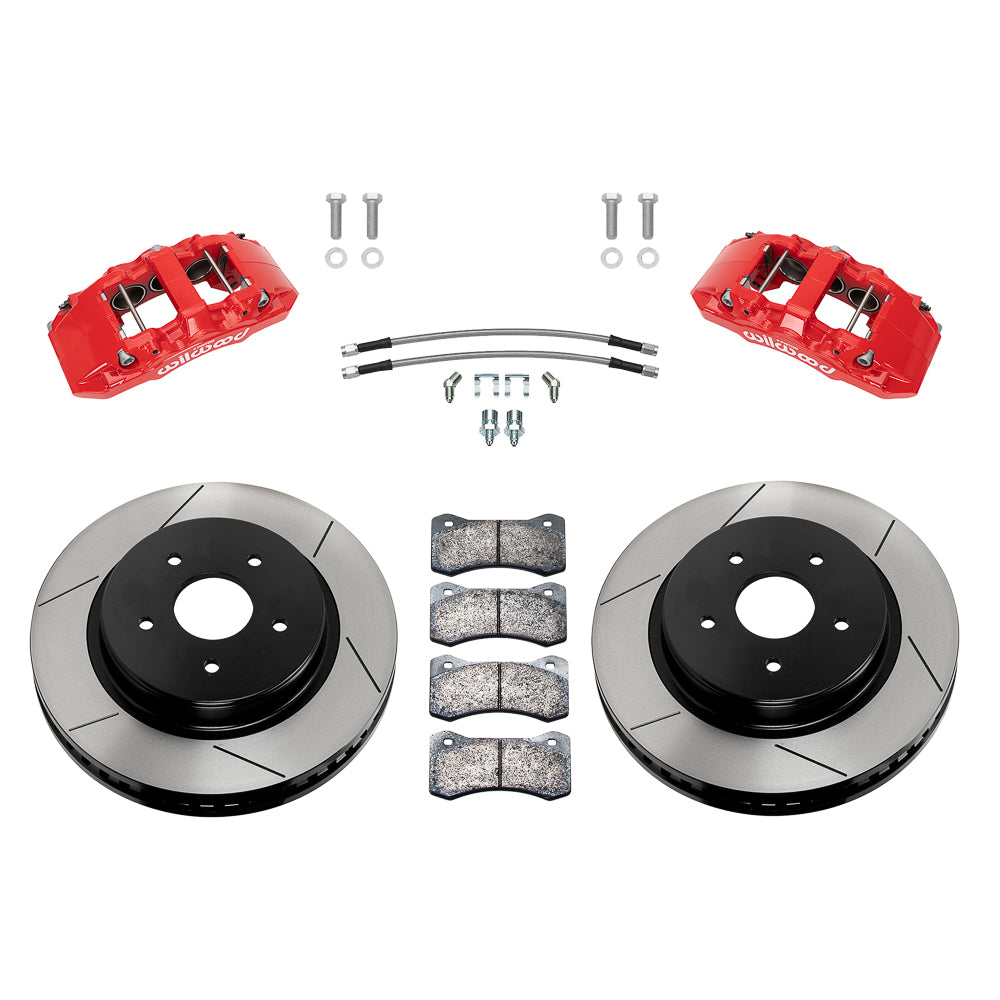

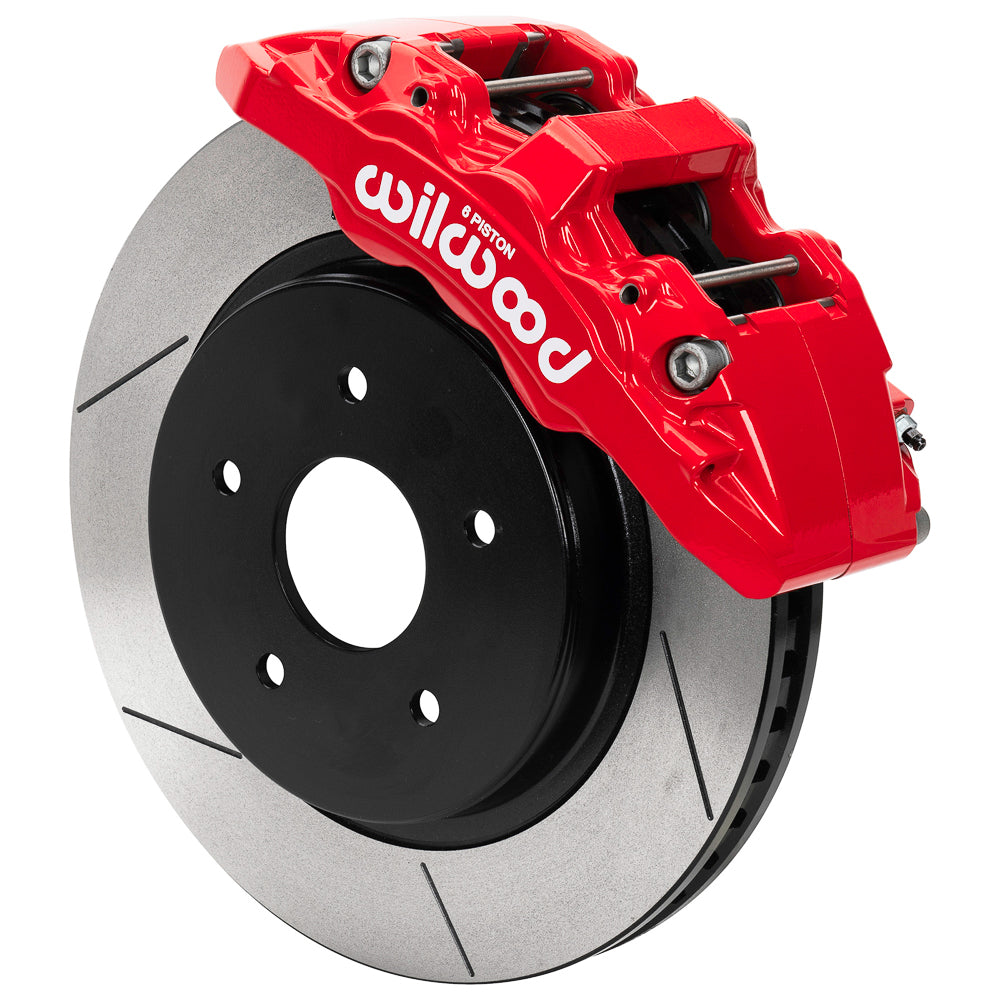

Red six-piston front calipers pair with GT rotors and braided lines on listed Ram 1500 2WD trucks. Verify the steering and wheel clearances. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, the company produces calipers, brake rotors, master cylinders, valves, fittings and brake lines. Component selection depends on the requirements of the complete braking system.

Technical Details

• Nominal wheel diameter starting point: 17 in; the complete wheel-clearance drawing determines fit
• Mounting-hole arrangement on the rotor / hat: 5 x 5.5 in; 5 x 139.7 mm; verify the retained hub or axle flange separately
• Brake-hose provision: Included; confirm correct routing and hard-line connection
• Supplied installation fasteners: Included; verify the installed fastener engagement
• Components outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Wilwood manufacturer number: 140-17760-R
• Kit function and position: front conversion kit; Sold as a kit.
• Caliper family, piston count and finish: AERODM; 6 pistons per caliper; Red Powder Coat
• Mount arrangement: Lug
• Supplied brake-pad material: BP-22
• Caliper piston construction: Stainless
• Caliper fluid connection: 1/8-27 NPT
• Rotor diameter, width, material and face: 13.38 × 1.25 inches; Iron; GT Slotted

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 two-wheel-drive factory disc-spindle applications. Check the individual trim and year rows below, verify the original hub and brake package, and compare the AERO6-DM drawing with the wheels. The supplied one-piece rotor/hat drilling must match the retained hub; this kit does not provide a replacement wheel hub. Flexlines are included but require correct hard-line connection and full-travel routing clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
