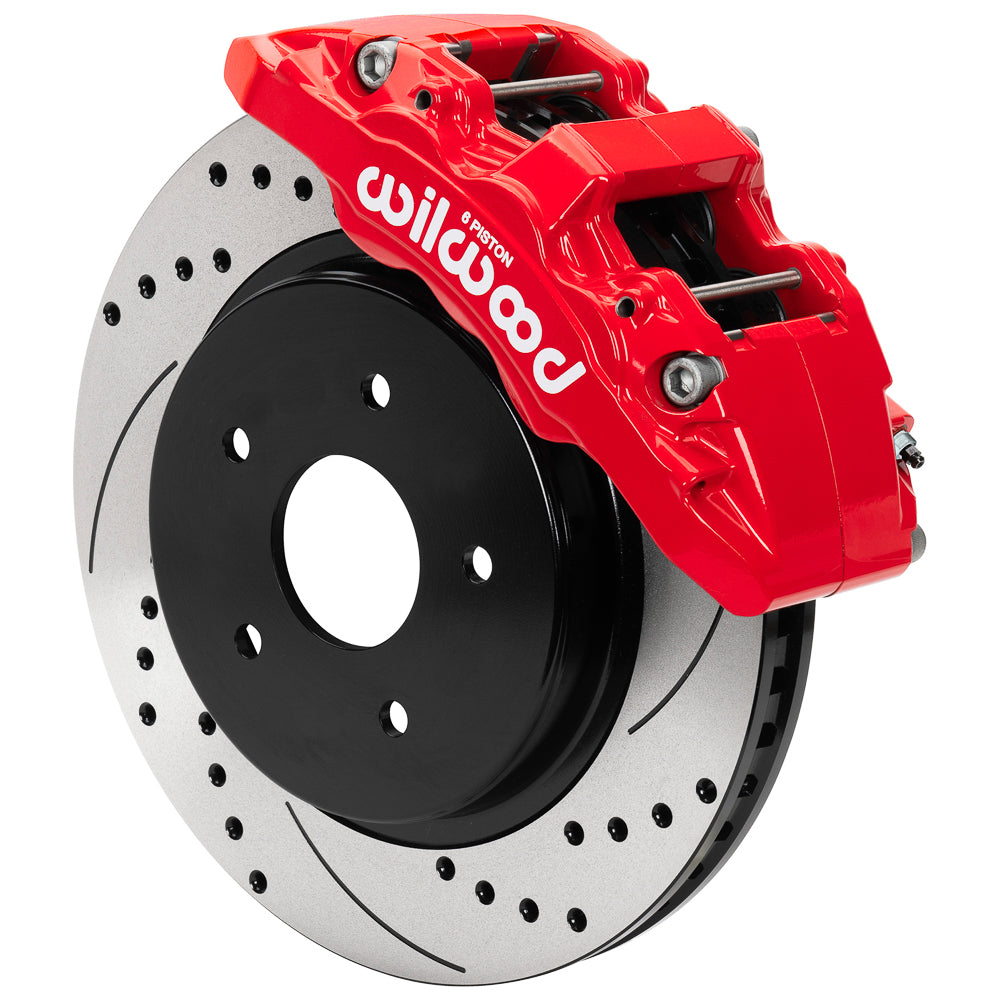

Wilwood Red AERO6-DM Front Caliper and 13.38-Inch SRP Rotor Package, Ram 1500 2WD (2013–2018)

Choose red AERO6-DM front brakes with drilled and slotted rotors for listed Ram 1500 2WD models. Check the factory brake and wheel configuration. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

• Installation hardware: Included; verify the installed fastener engagement
• Items not supplied: spindles, wheel hubs, master cylinder, brake booster
• Wilwood part number: 140-17760-DR

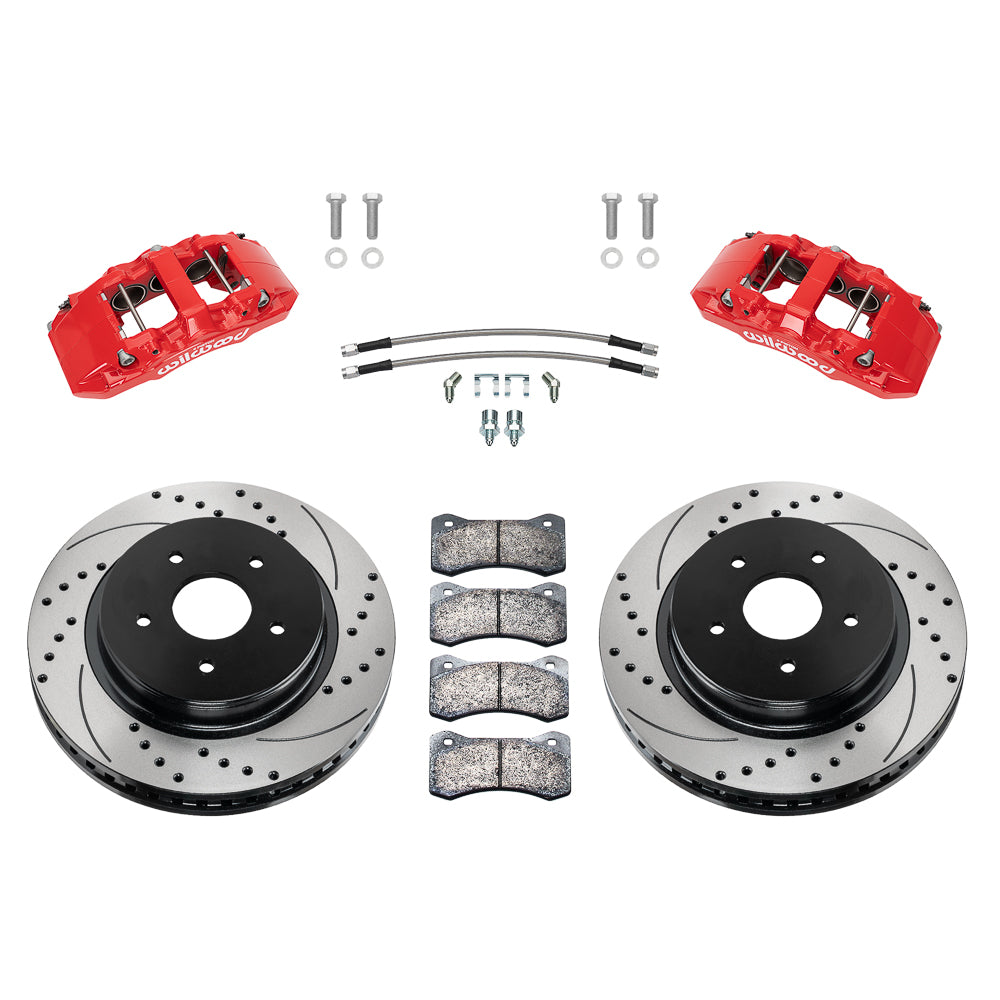

• Conversion type: front conversion kit; Sold as a kit.
• Caliper configuration: AERODM; 6 pistons per caliper; Red Powder Coat
• Bracket-to-caliper mounting: Lug
• Pad compound selection: BP-22
• Caliper piston specification: Stainless
• Hydraulic inlet thread: 1/8-27 NPT
• Brake-rotor package: 13.38 × 1.25 inches; Iron; SRP Drilled & Slotted
• Wheel-diameter reference: 17 in; the complete wheel-clearance drawing determines fit
• Retained-hub rotor drilling: 5 x 5.5 in; 5 x 139.7 mm; verify the retained hub or axle flange separately
• Flexline supply: Included; confirm correct routing and hard-line connection

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 two-wheel-drive factory disc-spindle applications. Check the individual trim and year rows below, verify the original hub and brake package, and compare the AERO6-DM drawing with the wheels. The supplied one-piece rotor/hat drilling must match the retained hub; this kit does not provide a replacement wheel hub. Flexlines are included but require correct hard-line connection and full-travel routing clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
