Wilwood Black AERO6-DM Front Disc Conversion with Drilled Rotors for Ram 1500 2WD (2013–2018)

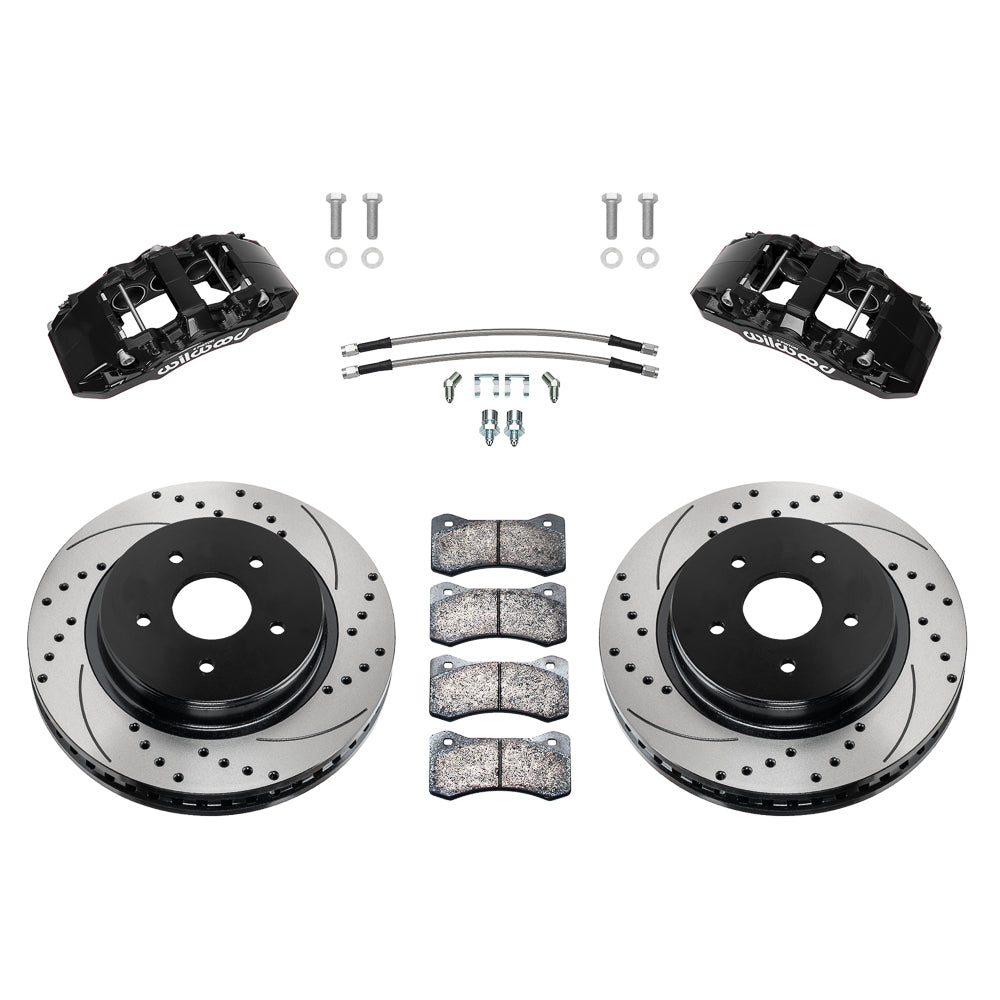

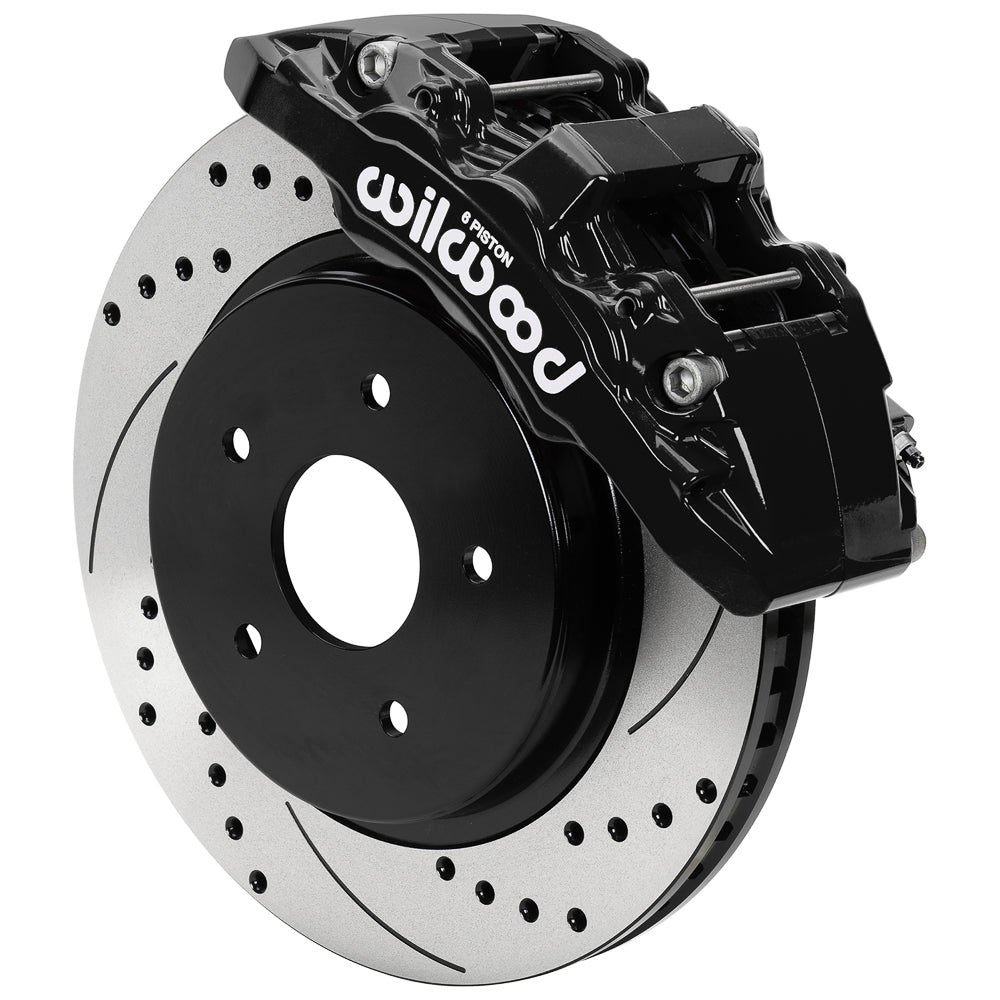

Ram 1500 2WD front brakes use black six-piston calipers, drilled SRP rotors and hoses. Compare the 13.38-inch rotor assembly with the wheel profile. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977. Its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications; each part must suit the requirements of the complete braking system.

Technical Details

• Kit function and position: front conversion kit; Sold as a kit.
• Caliper family, piston count and finish: AERODM; 6 pistons per caliper; Black Powder Coat
• Mount arrangement: Lug
• Supplied brake-pad material: BP-22
• Caliper piston construction: Stainless
• Caliper fluid connection: 1/8-27 NPT
• Rotor diameter, width, material and face: 13.38 × 1.25 inches; Iron; SRP Drilled & Slotted
• Nominal wheel diameter starting point: 17 in; the complete wheel-clearance drawing determines fit
• Mounting-hole arrangement on the rotor / hat: 5 x 5.5 in; 5 x 139.7 mm; verify the retained hub or axle flange separately
• Brake-hose provision: Included; confirm correct routing and hard-line connection
• Supplied installation fasteners: Included; verify the installed fastener engagement
• Components outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Wilwood manufacturer number: 140-17760-D

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 two-wheel-drive factory disc-spindle applications. Check the individual trim and year rows below, verify the original hub and brake package, and compare the AERO6-DM drawing with the wheels. The supplied one-piece rotor/hat drilling must match the retained hub; this kit does not provide a replacement wheel hub. Flexlines are included but require correct hard-line connection and full-travel routing clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
