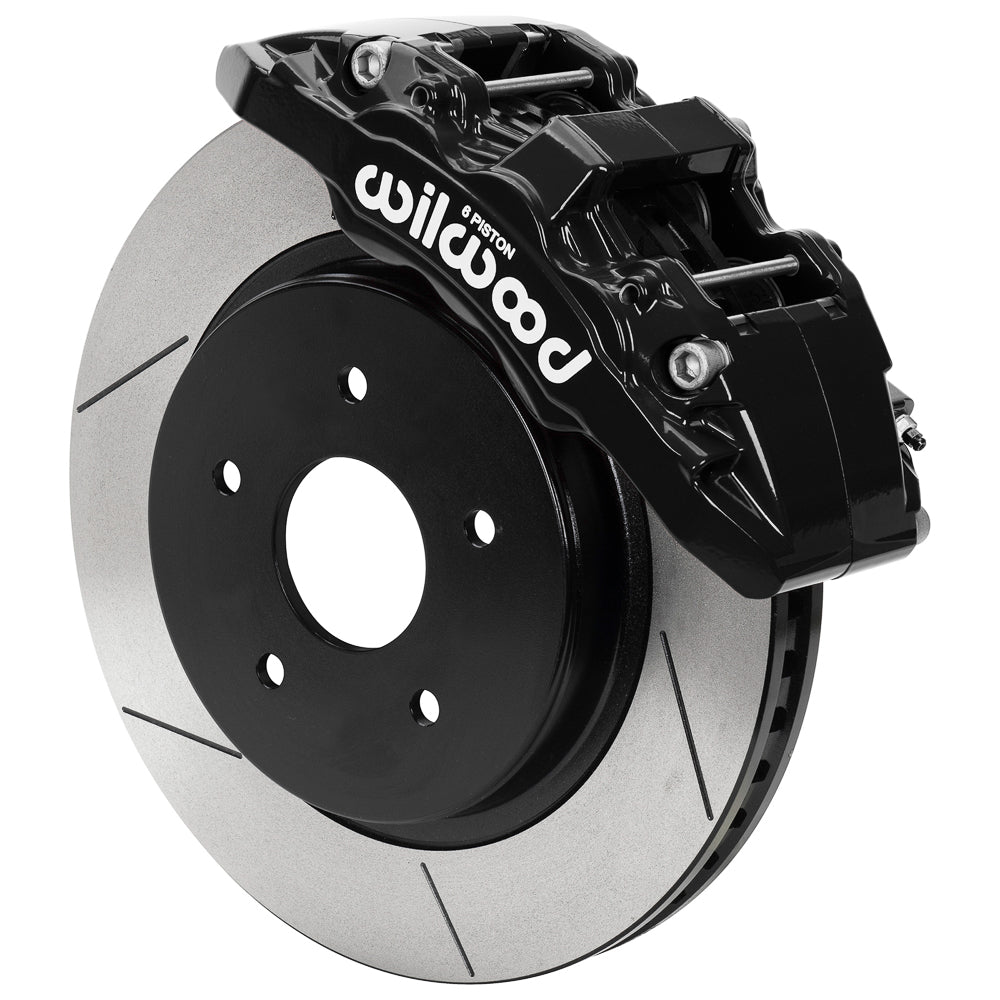

Wilwood Front AERO6-DM Brake Kit, Black with 13.38-Inch GT Rotors and Hoses, Ram 1500 2WD (2013–2018)

Black AERO6-DM front calipers and 13.38-inch GT rotors suit listed Ram 1500 2WD trucks. Confirm drivetrain, original brakes and wheel clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems and components. The company is based in Camarillo, California. Calipers, master cylinders, rotors, brake lines, fittings and valves make up a range serving motorsport, street-performance and specialized applications, with each component chosen for the complete system.

Technical Details

• Pad compound selection: BP-22
• Caliper piston specification: Stainless
• Hydraulic inlet thread: 1/8-27 NPT
• Brake-rotor package: 13.38 × 1.25 inches; Iron; GT Slotted
• Wheel-diameter reference: 17 in; the complete wheel-clearance drawing determines fit
• Retained-hub rotor drilling: 5 x 5.5 in; 5 x 139.7 mm; verify the retained hub or axle flange separately
• Flexline supply: Included; confirm correct routing and hard-line connection
• Installation hardware: Included; verify the installed fastener engagement
• Items not supplied: spindles, wheel hubs, master cylinder, brake booster
• Wilwood part number: 140-17760

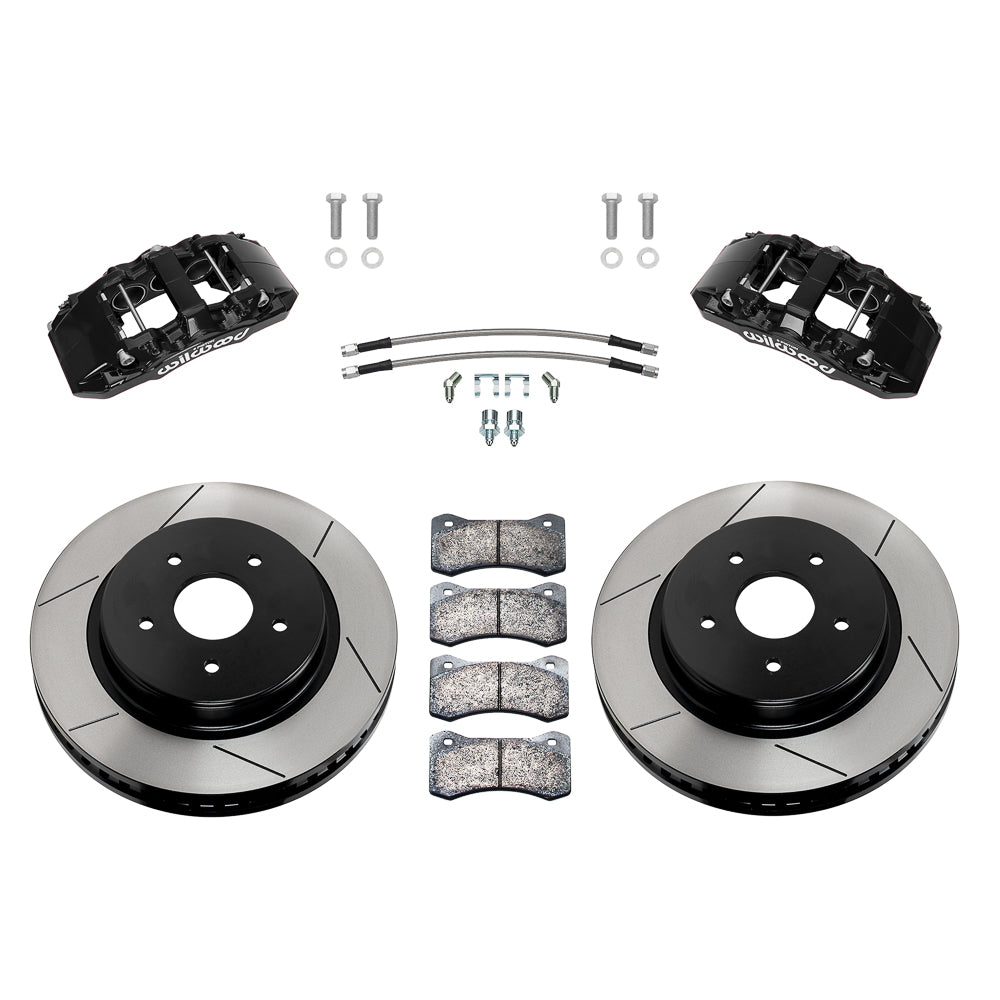

• Conversion type: front conversion kit; Sold as a kit.
• Caliper configuration: AERODM; 6 pistons per caliper; Black Powder Coat
• Bracket-to-caliper mounting: Lug

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 two-wheel-drive factory disc-spindle applications. Check the individual trim and year rows below, verify the original hub and brake package, and compare the AERO6-DM drawing with the wheels. The supplied one-piece rotor/hat drilling must match the retained hub; this kit does not provide a replacement wheel hub. Flexlines are included but require correct hard-line connection and full-travel routing clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
