Wilwood Front AERO6-DM Armored-Vehicle Brake Kit, Type III Anodized Calipers and 13.38-Inch Rotors, GM 1500 Trucks and SUVs

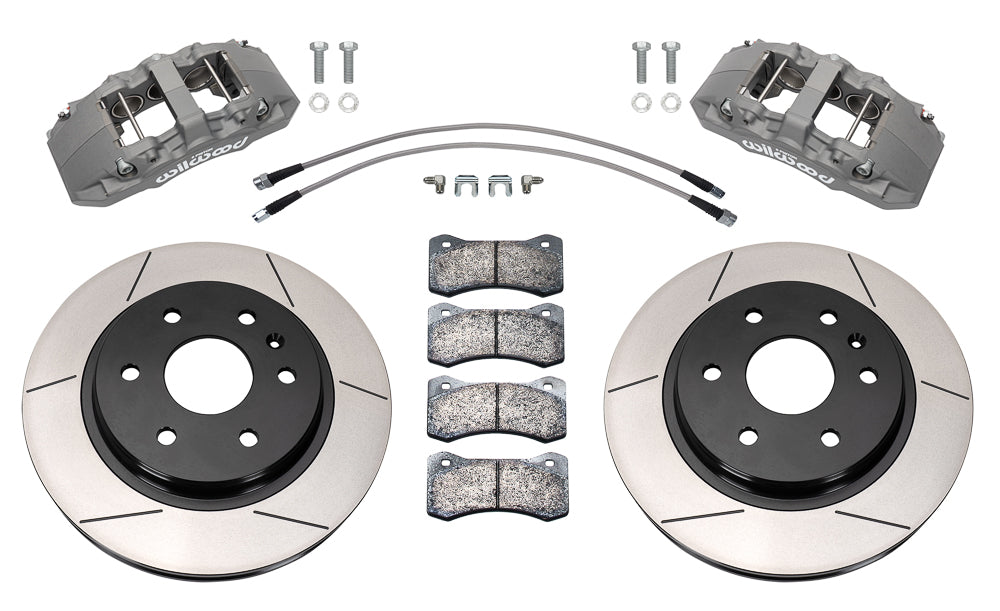

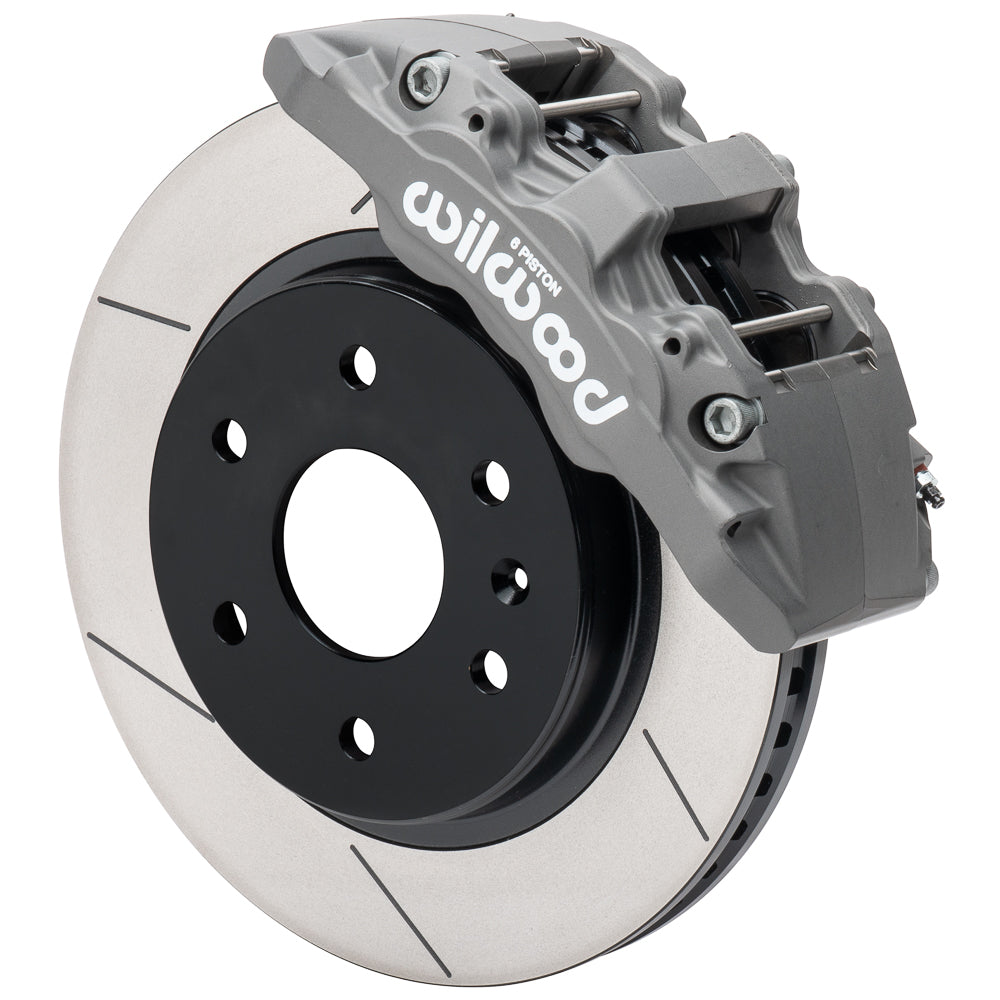

GM 1500 truck and SUV armored-vehicle front brakes combine anodized AERO6-DM calipers, TX1 pads and 13.38-inch rotors. Verify model and brake layout. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems and components. The company is based in Camarillo, California. Calipers, master cylinders, rotors, brake lines, fittings and valves make up a range serving motorsport, street-performance and specialized applications, with each component chosen for the complete system.

Technical Details

• Hydraulic hose selection: Included; confirm correct routing and hard-line connection
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17758
• Application and supplied quantity: front conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: AERODM; 6 pistons per caliper; Type III Anodize
• Caliper attachment: Lug
• Brake pads supplied: TX1
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 13.38 × 1.25 inches; Iron; GT Slotted
• Wheel envelope: 17 in; the complete wheel-clearance drawing determines fit
• Rotor attachment pattern: 6 x 5.5 in; 6 x 139.7 mm; verify the retained hub or axle flange separately

Fitment & Compatibility

This is the armored-vehicle AERO6-DM package for the GM truck/SUV applications listed below, using TX1 pads and the specified factory disc spindle. Chevrolet models include Silverado 1500, Silverado 1500 LTD, Suburban and Tahoe; GMC models include Sierra 1500, Sierra 1500 Limited, Yukon and Yukon XL; Cadillac coverage includes Escalade and Escalade ESV. Truck coverage starts in 2019 and SUV coverage in 2021, with exact trim/year limits in each table row. DS-1590 requires dust-shield trimming. The original pad wear sensor is not used by these calipers and must be retained and secured on the vehicle as directed. Wheel, payload and braking-system compatibility require individual review for an armored conversion. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
