Wilwood Rear TX6R Brake Kit, Black with 16-Inch GT Rotors and Hoses, Ram 2500/3500 (2019–2023)

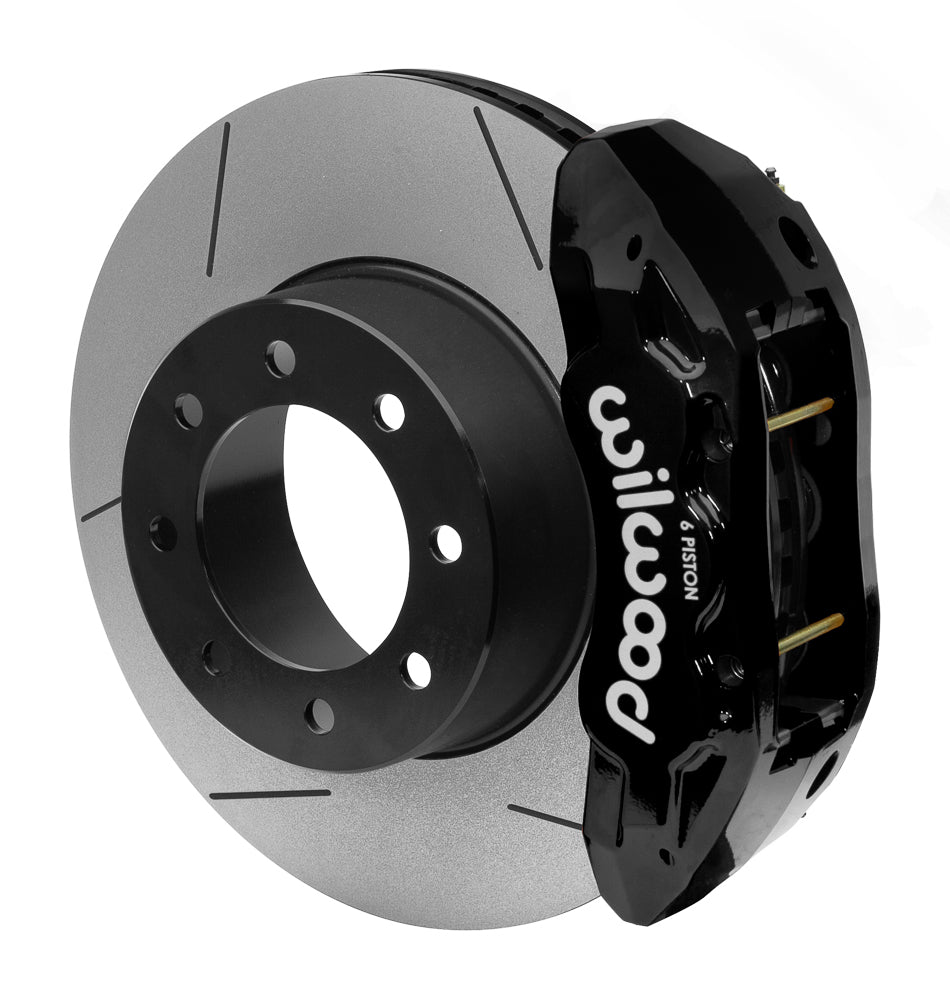

Ram 2500 and 3500 rear brakes receive black six-piston TX6R calipers and 16-inch GT rotors. Verify single rear wheels and dust-shield clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems along with calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications each call for components matched to the overall braking arrangement.

Technical Details

• Rotor / hat mounting drilling: 8 x 6.5 in; 8 x 165.1 mm; verify the retained hub or axle flange separately
• Hydraulic flexlines: Included; confirm correct routing and hard-line connection
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17749

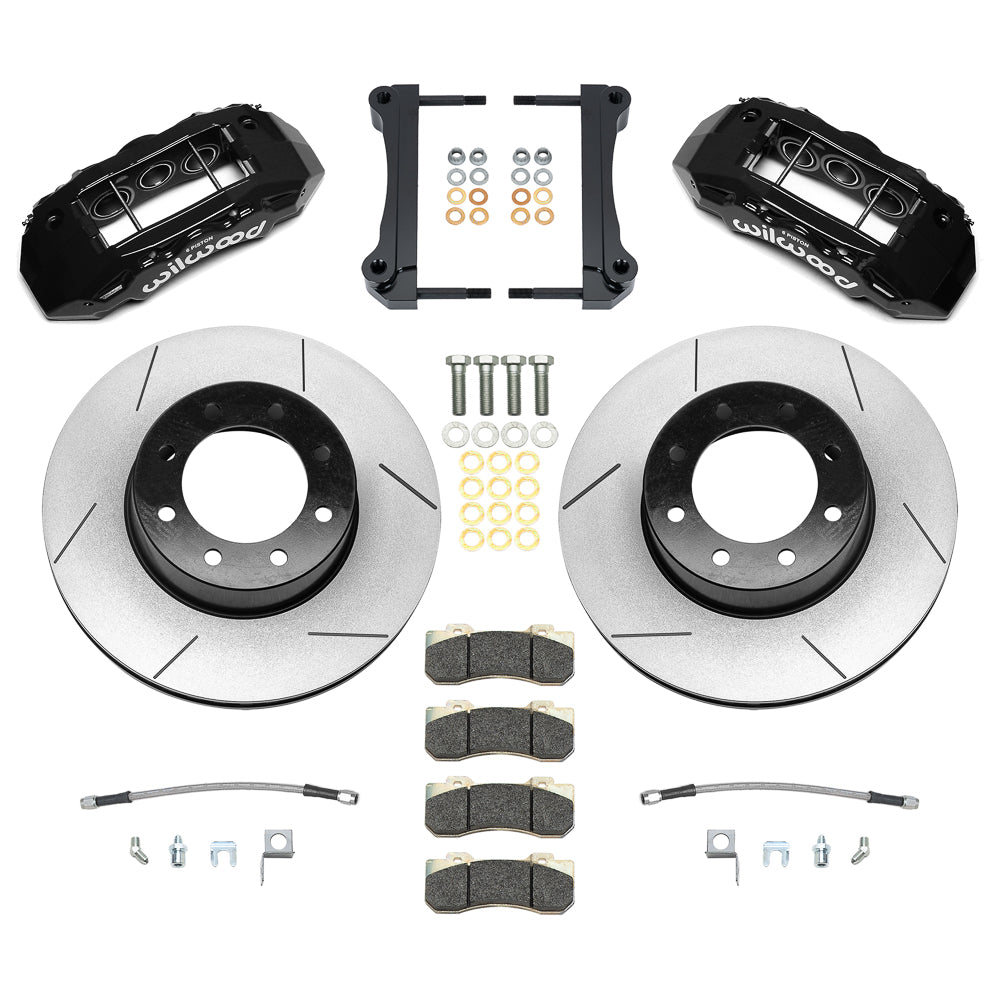

• Brake assembly: rear conversion kit; Sold as a kit.
• Calipers: TX6R; 6 pistons per caliper; Black Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-22
• Piston material: Stainless
• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 16.00 × 1.38 inches; Iron; GT Slotted
• Wheel-size reference: 20 in; the complete wheel-clearance drawing determines fit

Fitment & Compatibility

Listed for 2019–2023 Ram 2500 and single-rear-wheel 3500 rear brakes. The Ram 2500 trim and year rows below are specific: for example, Lone Star coverage is not a continuous range. Verify the installed axle and rear-wheel configuration. DS-1591 requires trimming the factory dust shield for the larger caliper and brackets. Check the full 16-inch rotor and TX6R wheel envelope, then route the supplied hoses clear of moving parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
