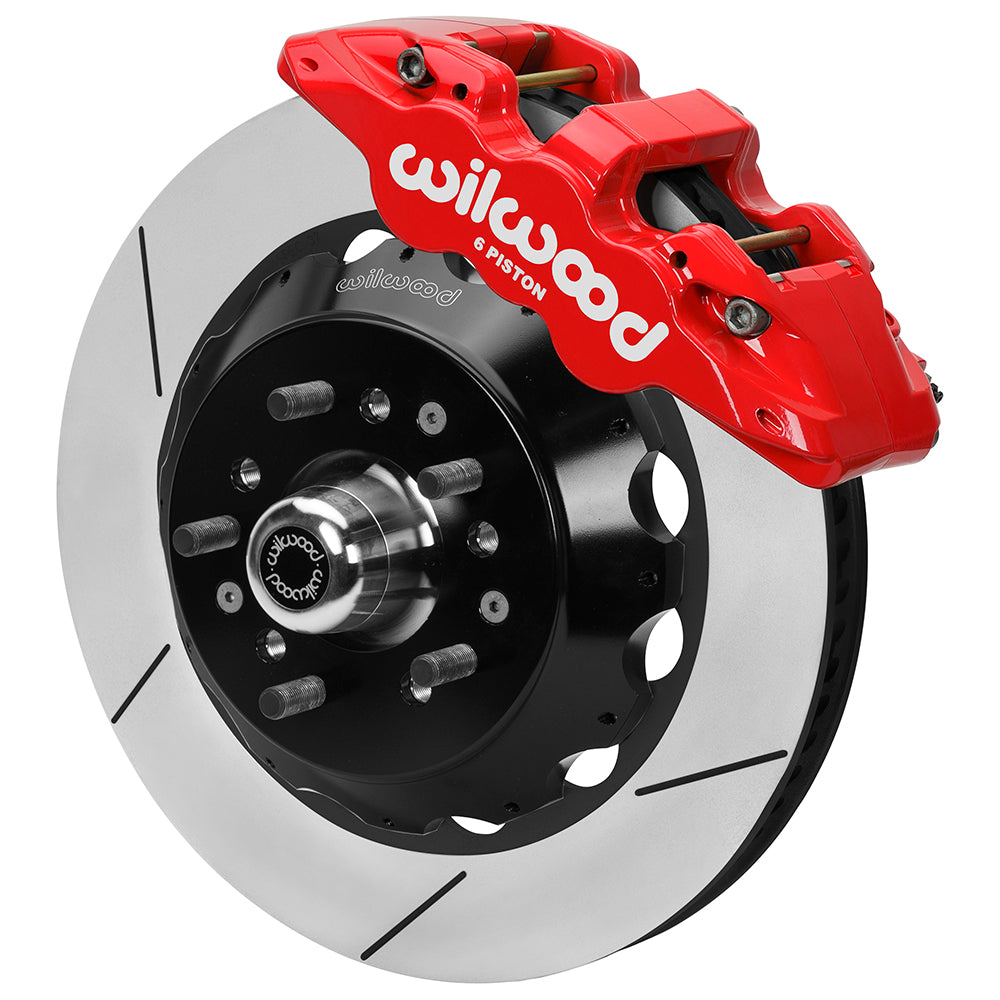

Wilwood Chevrolet Bel Air/Biscayne/Caprice/Impala/Brookwood/Corvette/Kingswood/Townsman/Estate Front Hub Brake Kit, Red AERO6 and 14-Inch GT (1968–1982)

Check the spindle and wheel envelope for red GT front brakes: Corvette, Impala, Bel Air, Biscayne, Caprice, Brookwood, Kingswood, Townsman, Estate. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977. Its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications; each part must suit the requirements of the complete braking system.

Technical Details

• Hydraulic service-caliper specification: AERO6; 6 pistons per caliper; Red Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 14.00 × 1.25 inches; Spec-37 Iron; GT Slotted
• Wheel envelope: 18 in; the complete wheel-clearance drawing determines fit
• Included hub wheel patterns: 5 x 4.50; 5 x 4.75 inches; check the chosen wheel pattern

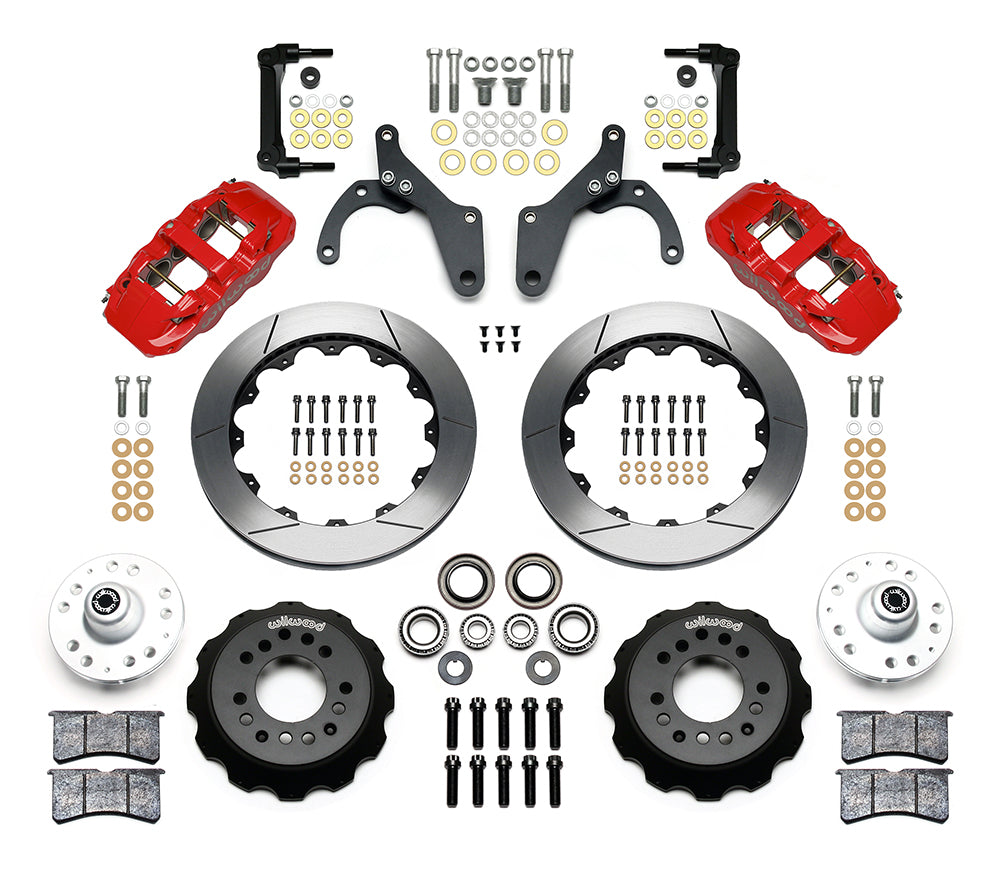

• Included hubs and studs: Aluminum hubs with wheel bearings, seals and mounting hardware; 1/2-20 wheel studs
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, master cylinder, brake booster
• Manufacturer identification: 140-17739-R
• Application and supplied quantity: front conversion kit; Sold as a kit.

Fitment & Compatibility

Match the supplied AERO6 front hubs to the actual Chevrolet spindle and wheel pattern before ordering this red GT package. DS-1589 covers the specified 1968–1970 full-size spindles and 1969–1982 Corvette C3 arrangement. Bel Air, Biscayne, Caprice and Impala have brake-option restrictions; Brookwood, Kingswood, Townsman and Estate do not all share identical year coverage. The 1968 application excludes the single-piston power-disc configuration. Verify the table below row by row, choose 5 × 4.50 or 4.75-inch wheels for the included hubs and 1/2-20 studs, and obtain suitable flexlines separately.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
