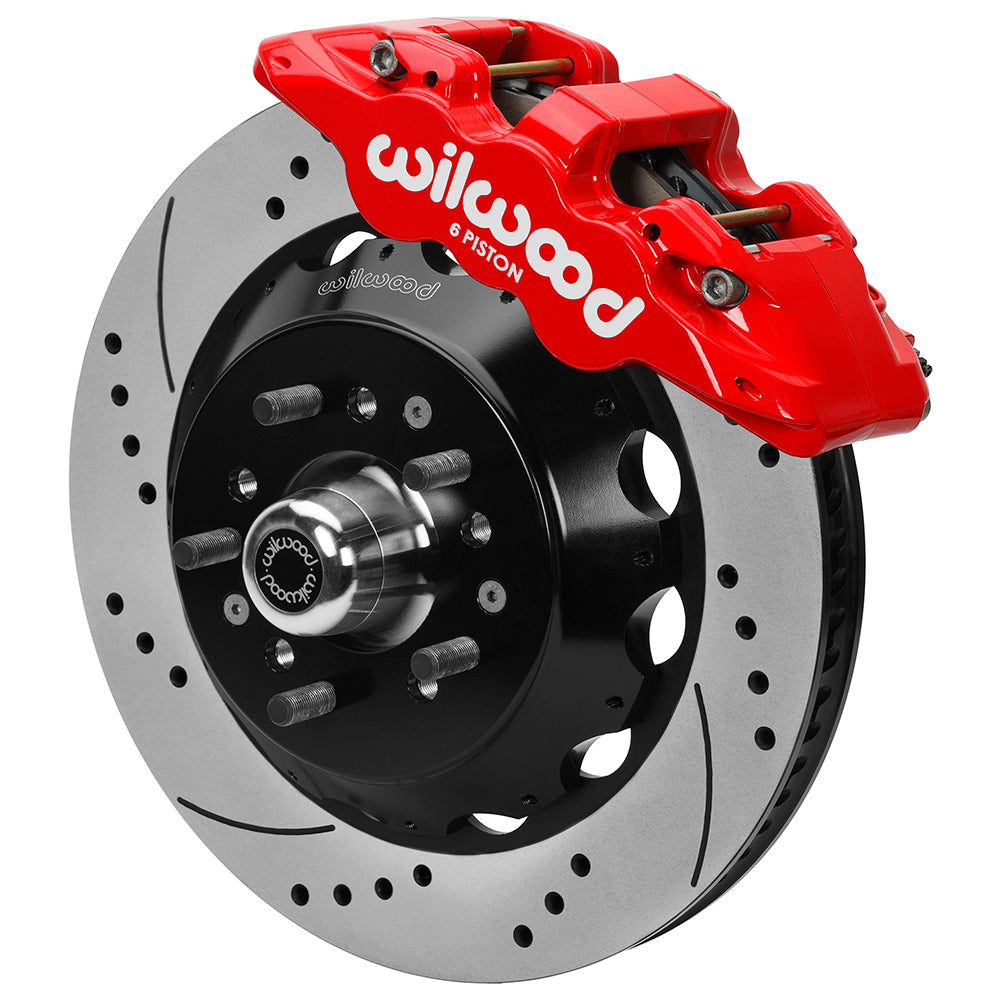

Wilwood Front Red AERO6 Hub Conversion, Chevrolet Corvette/Impala/Bel Air/Biscayne/Caprice/Brookwood/Kingswood/Townsman/Estate (1968–1982), 14-Inch SRP Rotors

AERO6 red front kit with drilled rotors: Corvette, Impala, Bel Air, Biscayne, Caprice, Brookwood, Kingswood, Townsman, Estate. Match the spindle. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require individual components matched to the complete brake system.

Technical Details

• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 14.00 × 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted
• Wheel-size reference: 18 in; the complete wheel-clearance drawing determines fit
• Included hub wheel patterns: 5 x 4.50; 5 x 4.75 inches; check the chosen wheel pattern

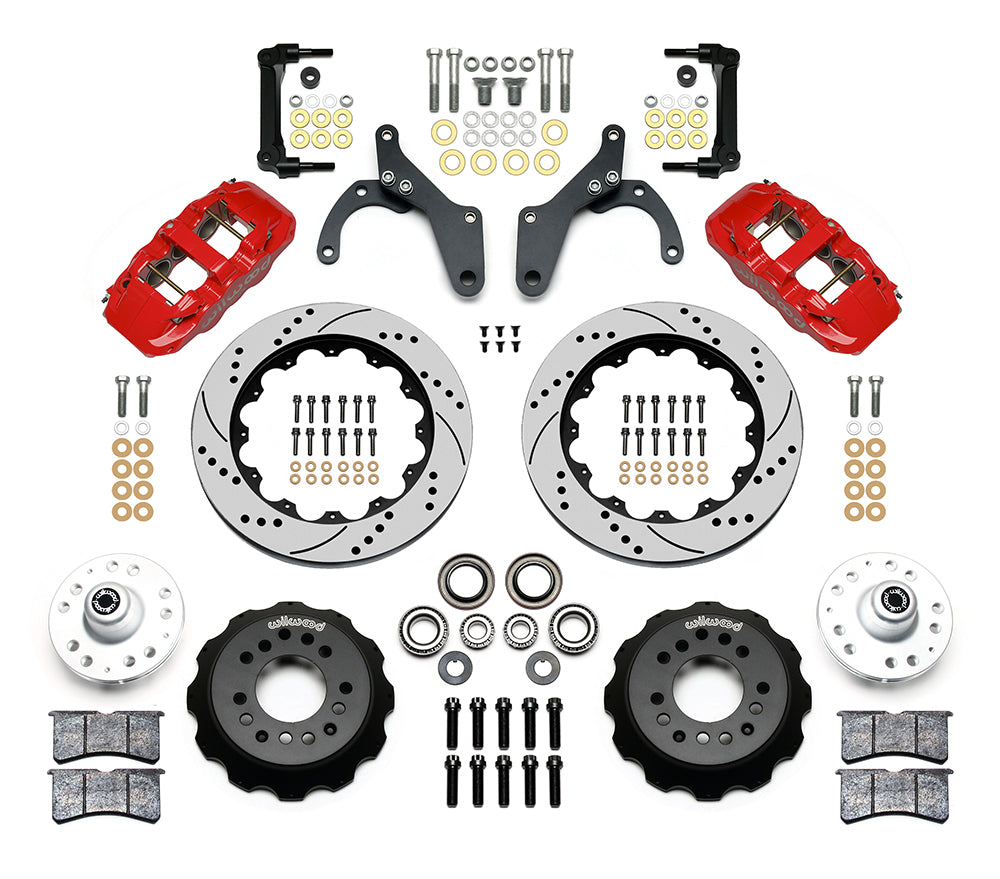

• Included hubs and studs: Aluminum hubs with wheel bearings, seals and mounting hardware; 1/2-20 wheel studs
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, master cylinder, brake booster
• Manufacturer part number: 140-17739-DR
• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: AERO6; 6 pistons per caliper; Red Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-10
• Piston material: Stainless

Fitment & Compatibility

For this red 14-inch SRP selection, first match the installed spindle to the precise Chevrolet application in the table below. The Corvette entry covers 1969–1982 C3; the full-size Bel Air, Biscayne, Caprice and Impala rows cover specified 1968–1970 configurations, excluding the 1968 single-piston power-disc setup. Brookwood, Kingswood, Townsman and Estate coverage depends on the year and drum/disc spindle. The supplied hubs accept 5 × 4.50/4.75-inch wheels with 1/2-20 studs. Inspect the complete AERO6 envelope in DS-1589, verify wheel location and provide suitable flexlines.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
