Wilwood Black AERO6 Front Disc and Hub Conversion with Drilled Rotors for Chevrolet Bel Air/Biscayne/Caprice/Impala/Brookwood/Corvette/Kingswood/Townsman/Estate (1968–1982)

Drilled front hub kit for Bel Air, Biscayne, Caprice, Impala, Brookwood, Corvette, Kingswood, Townsman and Estate. Check black AERO6 wheel space. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems along with calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications each call for components matched to the overall braking arrangement.

Technical Details

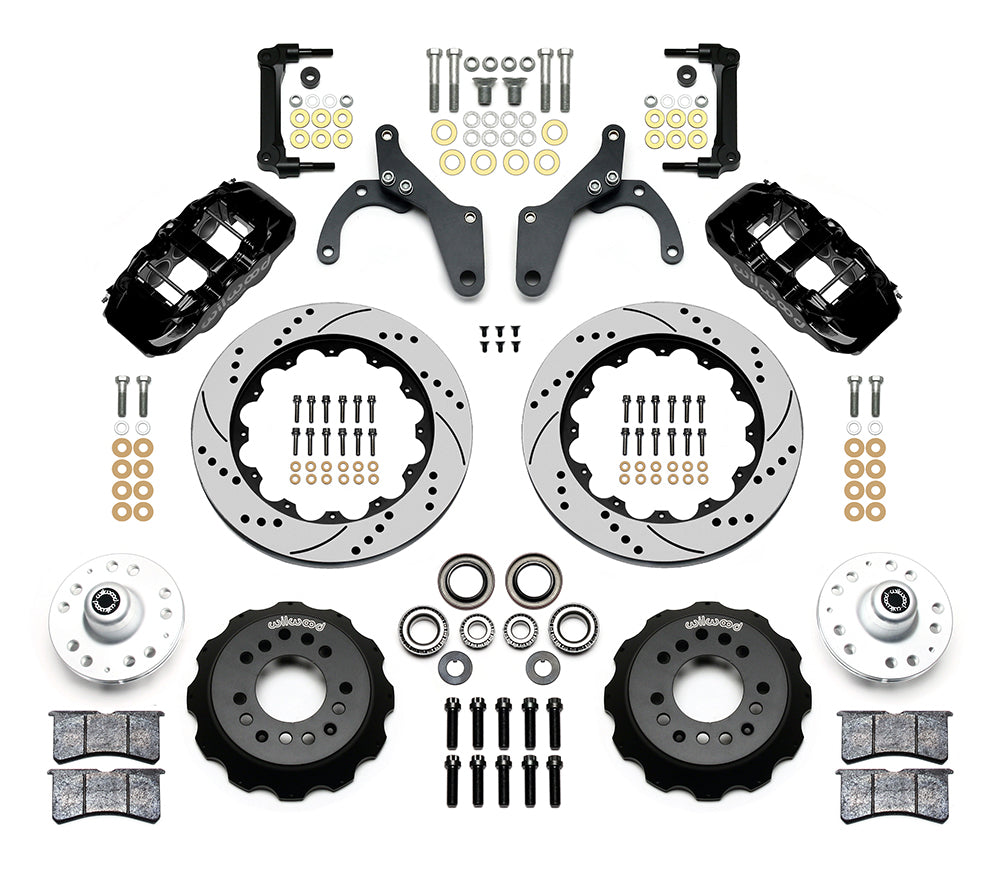

• Included hubs and studs: Aluminum hubs with wheel bearings, seals and mounting hardware; 1/2-20 wheel studs
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, master cylinder, brake booster
• Manufacturer identification: 140-17739-D
• Application and supplied quantity: front conversion kit; Sold as a kit.

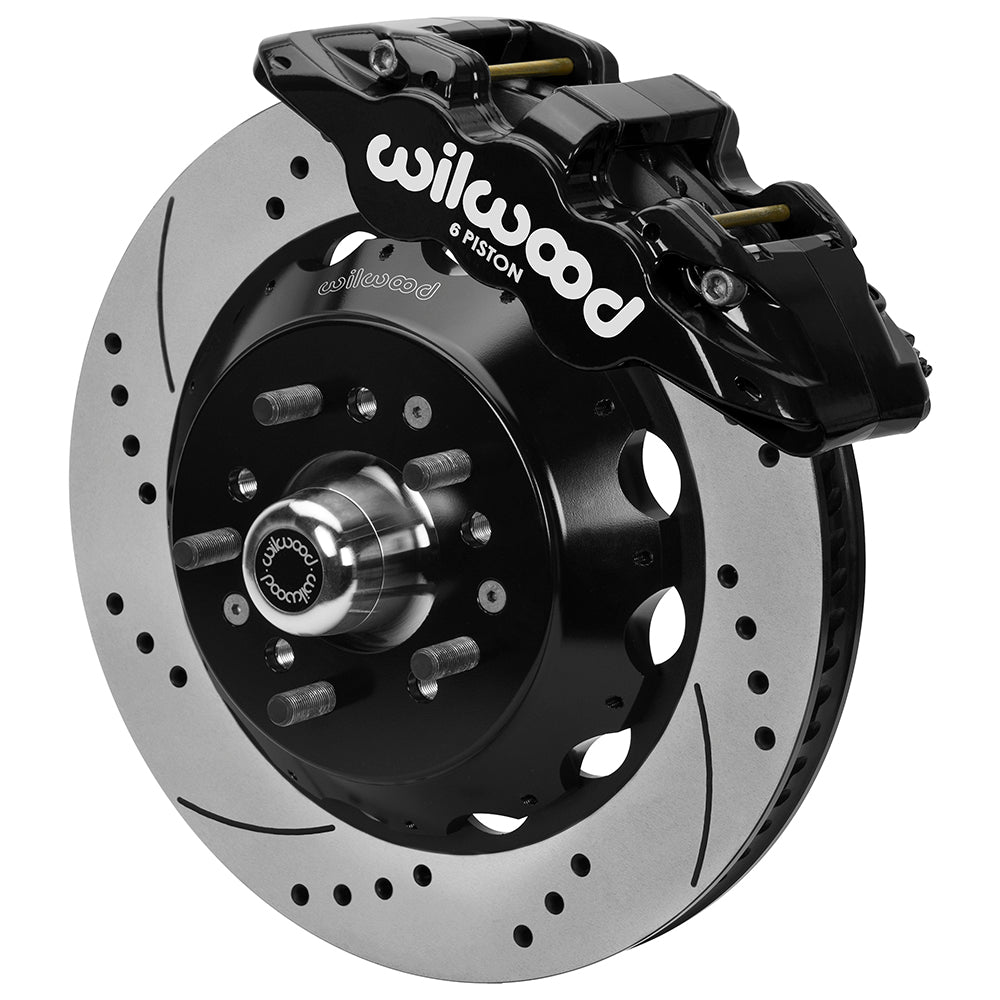

• Hydraulic service-caliper specification: AERO6; 6 pistons per caliper; Black Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 14.00 × 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted
• Wheel envelope: 18 in; the complete wheel-clearance drawing determines fit
• Included hub wheel patterns: 5 x 4.50; 5 x 4.75 inches; check the chosen wheel pattern

Fitment & Compatibility

This AERO6/SRP front hub conversion uses the spindle applications detailed in the table below. Listed 1968 Bel Air, Biscayne, Caprice and Impala entries exclude the single-piston power-disc setup. During 1969–1970, the full-size Chevrolet rows distinguish disc and drum spindles, with Brookwood, Kingswood, Townsman and Estate coverage dependent on the particular year. The Corvette application is the 1969–1982 C3 spindle. Match that hardware before selecting the supplied 5 × 4.50/4.75-inch hubs and 1/2-20 studs. DS-1589 supplies the 14-inch brake envelope; hydraulic hoses are separate.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
