Wilwood Black AERO6 Front Hub Conversion with 14-Inch Slotted Rotors for Chevrolet Bel Air/Biscayne/Impala/Caprice (1965–1968)

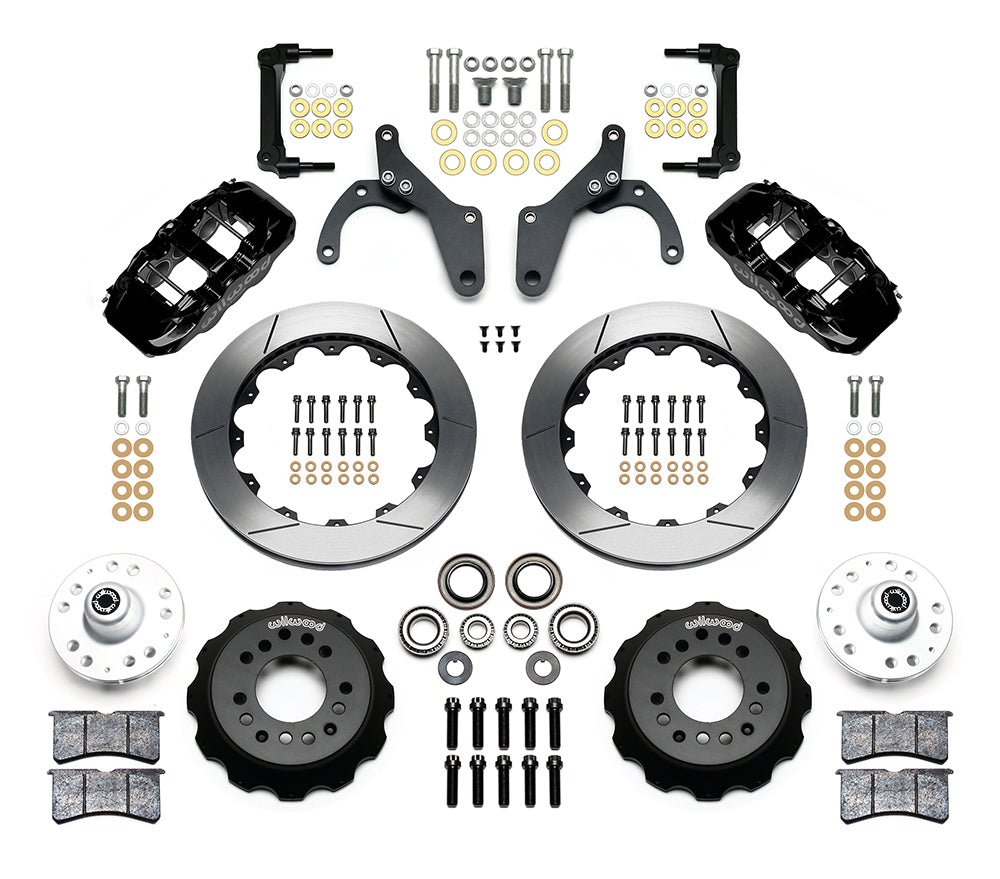

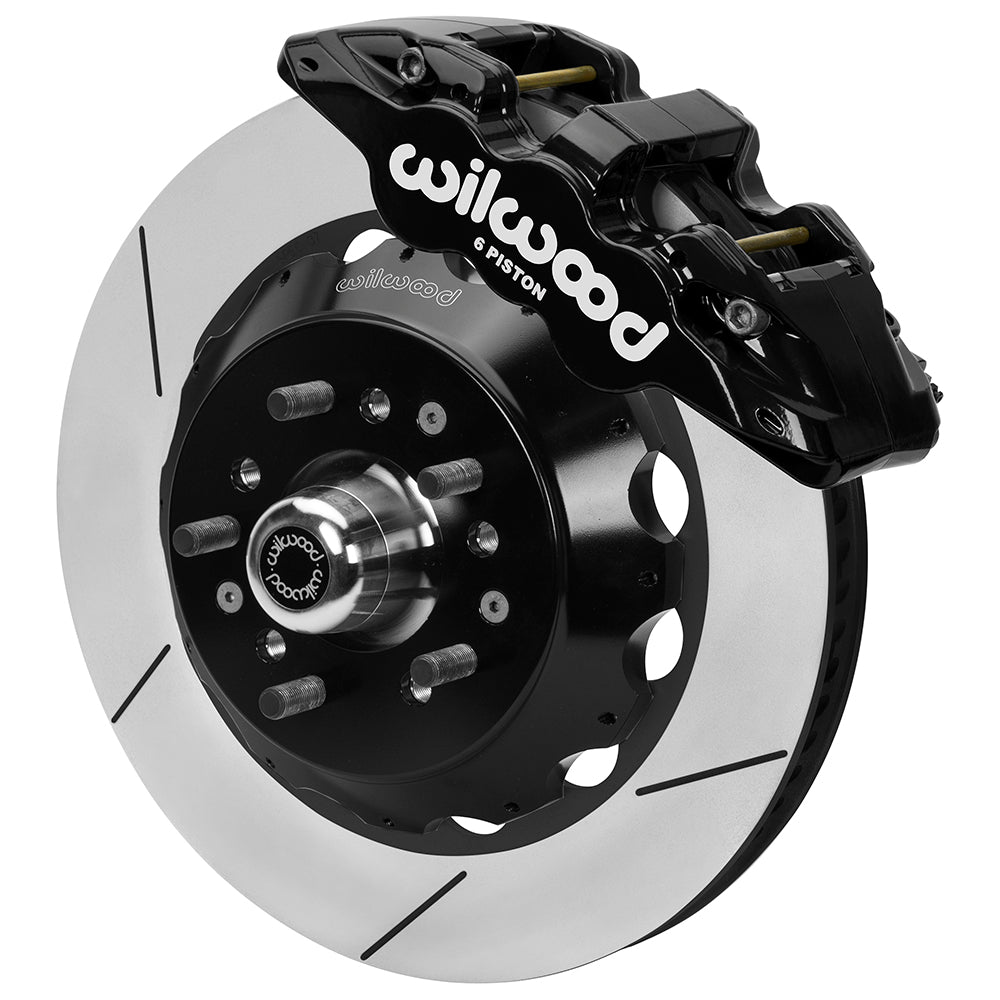

Black AERO6 front brakes for Bel Air, Biscayne, Impala and Caprice include hubs and 14-inch GT rotors. Confirm the drum spindle and wheel space. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

• Manufacturer part number: 140-17737
• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: AERO6; 6 pistons per caliper; Black Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-10
• Piston material: Stainless
• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 14.00 × 1.25 inches; Spec-37 Iron; GT Slotted
• Wheel-size reference: 18 in; the complete wheel-clearance drawing determines fit
• Included hub wheel patterns: 5 x 4.50; 5 x 4.75 inches; check the chosen wheel pattern
• Included hubs and studs: Aluminum hubs with wheel bearings, seals and mounting hardware; 1/2-20 wheel studs
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, master cylinder, brake booster

Fitment & Compatibility

Use the black AERO6 assembly where the listed 1965–1968 Chevrolet full-size car retains the correct drum-brake spindle. Bel Air, Biscayne and Impala have the specified 1965–1968 rows, while Caprice begins in 1966. The kit supplies hubs, wheel bearings and 1/2-20 studs rather than assuming an existing disc hub can be reused. Choose 5 × 4.50 or 4.75-inch wheel drilling and compare wheel position with DS-1587. The 14-inch GT rotor and six-piston caliper envelope requires the actual wheel measurement. Hydraulic flexlines are separate; table rows below distinguish the original brake options.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
