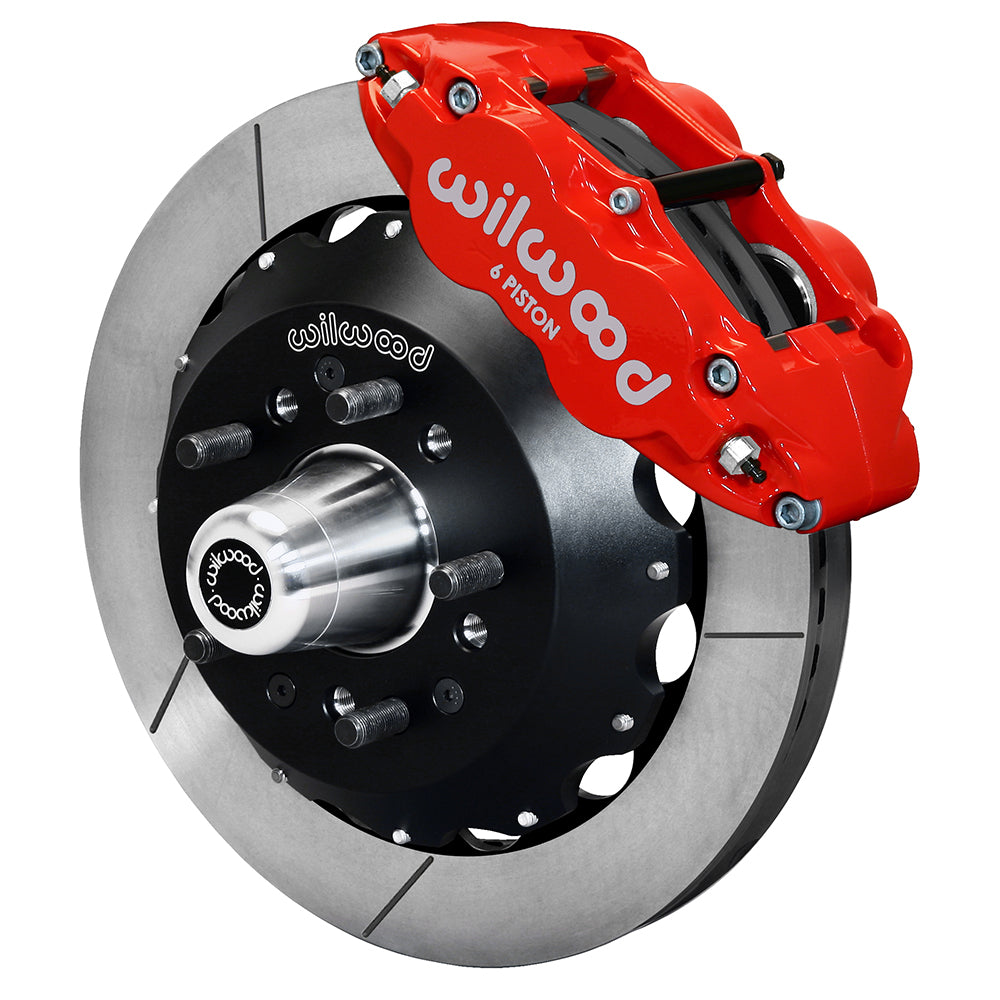

Wilwood Chevrolet Bel Air/Biscayne/Impala/Caprice Front Disc Conversion, Red Calipers and 12.88-Inch GT Rotors (1965–1968)

Fit red Superlite front calipers to listed Bel Air, Biscayne, Impala and Caprice drum spindles. Hubs and GT rotors need the correct wheel fit. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Hydraulic service-caliper specification: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 12.88 × 1.10 inches; Spec-37 Iron; GT Slotted
• Wheel envelope: 17 in; the complete wheel-clearance drawing determines fit
• Included hub wheel patterns: 5 x 4.50; 5 x 4.75 inches; check the chosen wheel pattern

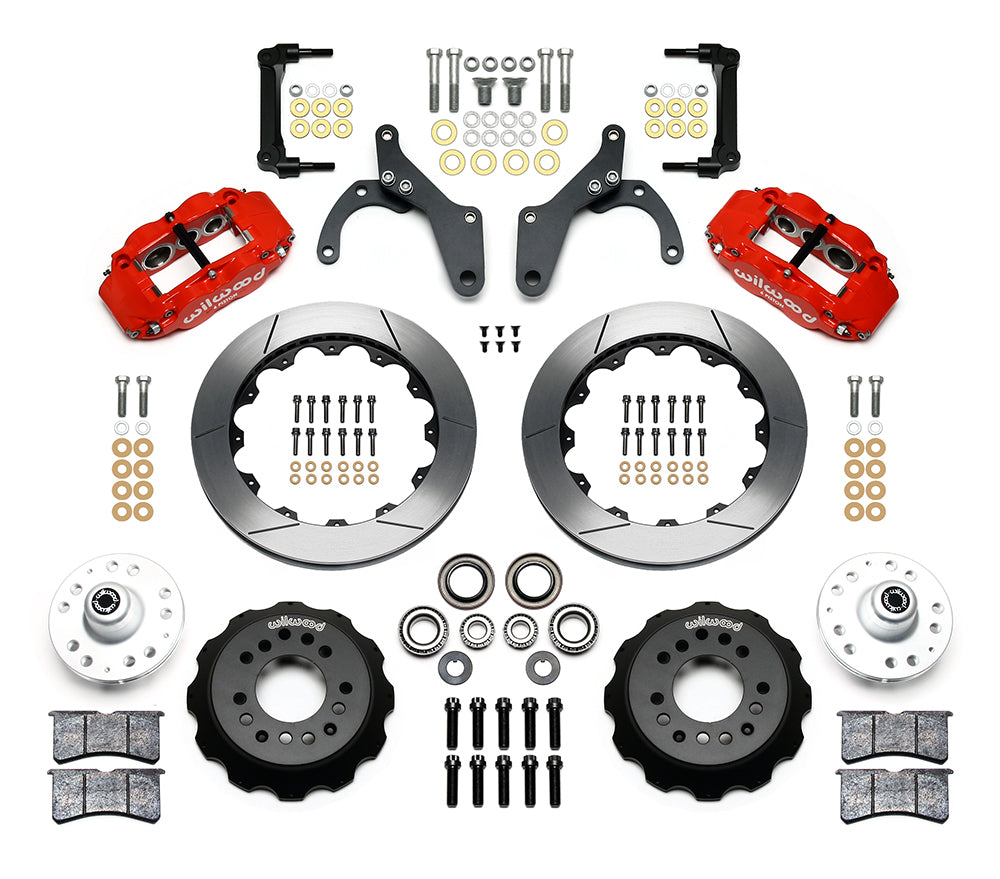

• Included hubs and studs: Aluminum hubs with wheel bearings, seals and mounting hardware; 1/2-20 wheel studs
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, master cylinder, brake booster
• Manufacturer identification: 140-17736-R
• Application and supplied quantity: front conversion kit; Sold as a kit.

Fitment & Compatibility

Fits the listed 1965–1968 Chevrolet Bel Air, Biscayne, Impala and Caprice applications using the specified factory drum-brake spindle. Caprice coverage begins with the 1966 rows. Confirm the actual spindle before ordering; the later single-piston factory disc spindle is a different selection. The supplied hubs have 5 × 4.50 and 5 × 4.75-inch wheel patterns with 1/2-20 studs. Select the correct pattern, verify tire position and compare the clearance drawing with the actual wheel. Compatible brake hoses are not included. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
