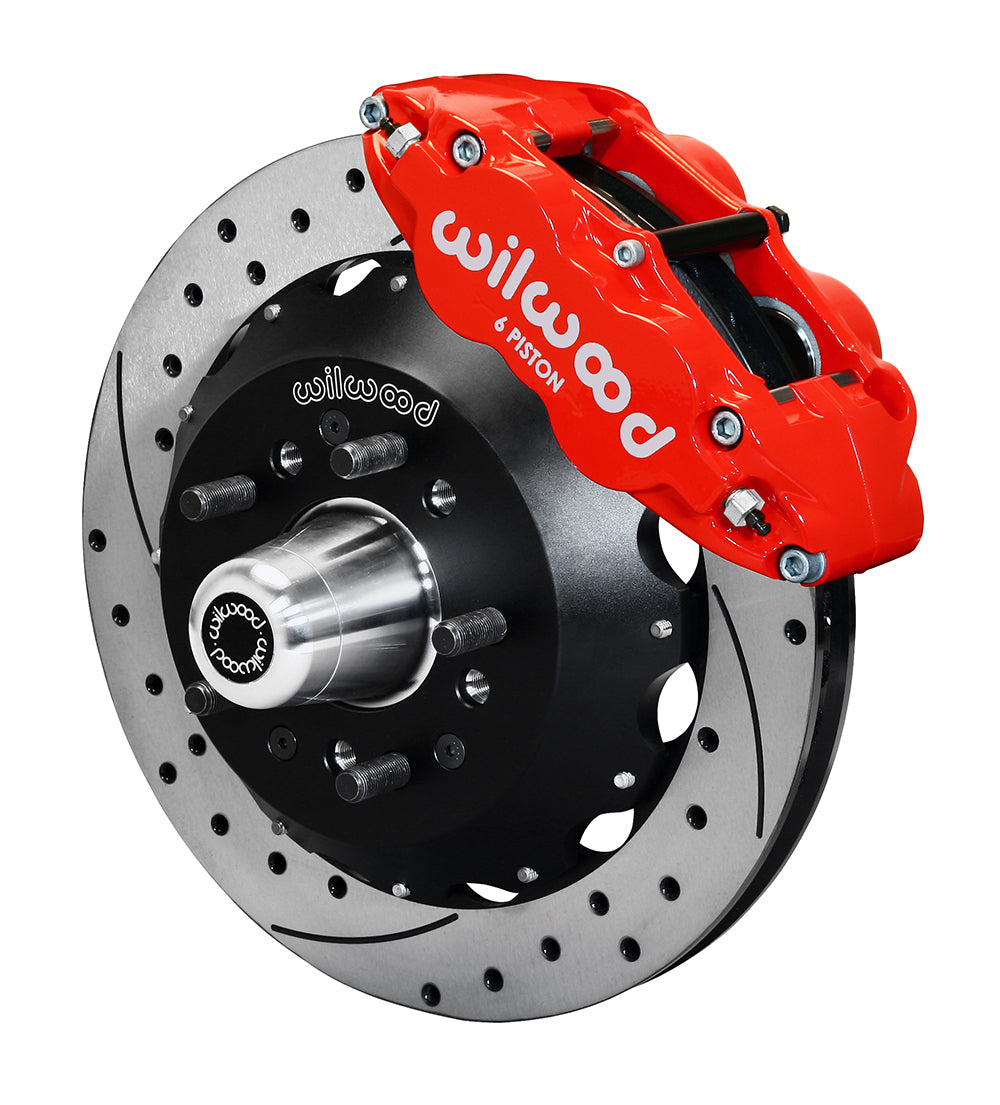

Wilwood Red FNSL6R Front Hub and Drilled Rotor Conversion, Chevrolet Bel Air/Biscayne/Impala/Caprice (1965–1968)

Red front hub brakes fit Bel Air, Biscayne, Impala and Caprice drum spindles. Check clearance around the 12.88-inch SRP rotors and calipers. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 12.88 × 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted
• Wheel-size reference: 17 in; the complete wheel-clearance drawing determines fit
• Included hub wheel patterns: 5 x 4.50; 5 x 4.75 inches; check the chosen wheel pattern
• Included hubs and studs: Aluminum hubs with wheel bearings, seals and mounting hardware; 1/2-20 wheel studs
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, master cylinder, brake booster
• Manufacturer part number: 140-17736-DR

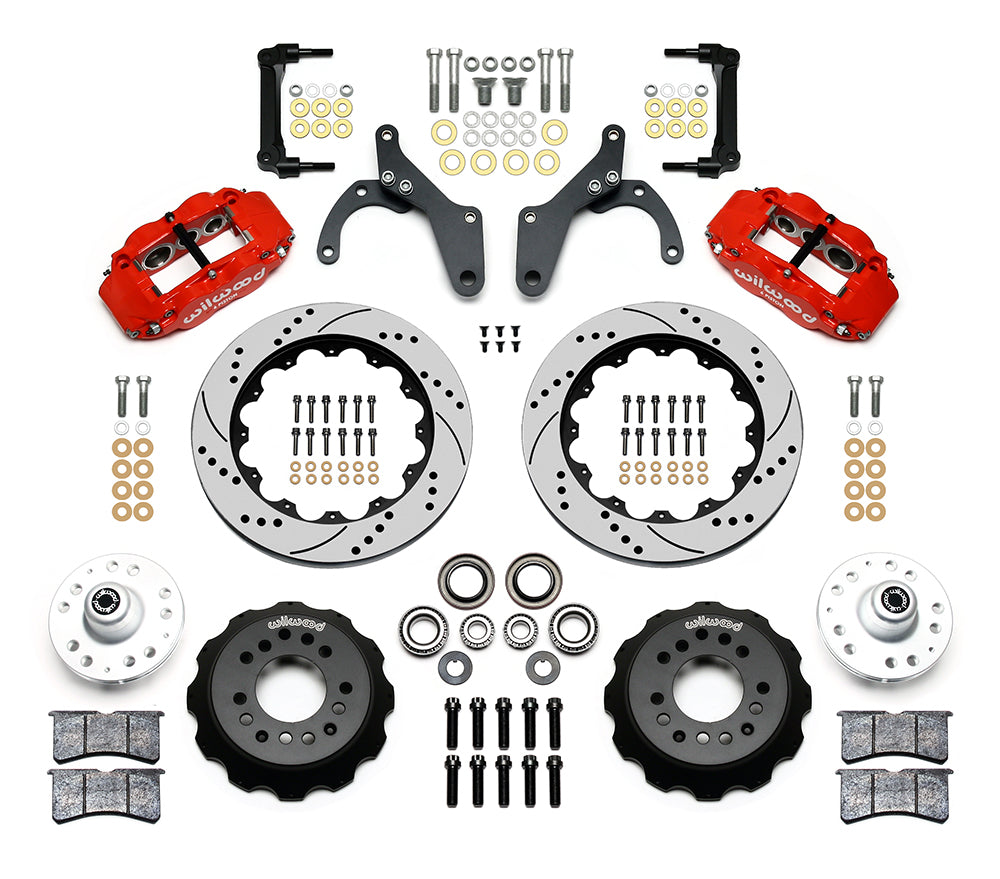

• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-10
• Piston material: Stainless

Fitment & Compatibility

Fits the listed 1965–1968 Chevrolet Bel Air, Biscayne, Impala and Caprice applications using the specified factory drum-brake spindle. Caprice coverage begins with the 1966 rows. Confirm the actual spindle before ordering; the later single-piston factory disc spindle is a different selection. The supplied hubs have 5 × 4.50 and 5 × 4.75-inch wheel patterns with 1/2-20 studs. Select the correct pattern, verify tire position and compare the clearance drawing with the actual wheel. Compatible brake hoses are not included. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
