Wilwood Rear TX6-DM Brake Kit with Black Calipers, 15.50-Inch GT Rotors and Lines, Ford F-250/F-350 Super Duty 4WD (2023–2025)

Black TX6-DM rear calipers pair with 15.50-inch rotors for Ford F-250 and F-350 Super Duty. Check 4WD, single rear wheels and dust-shield work. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require individual components matched to the complete brake system.

Technical Details

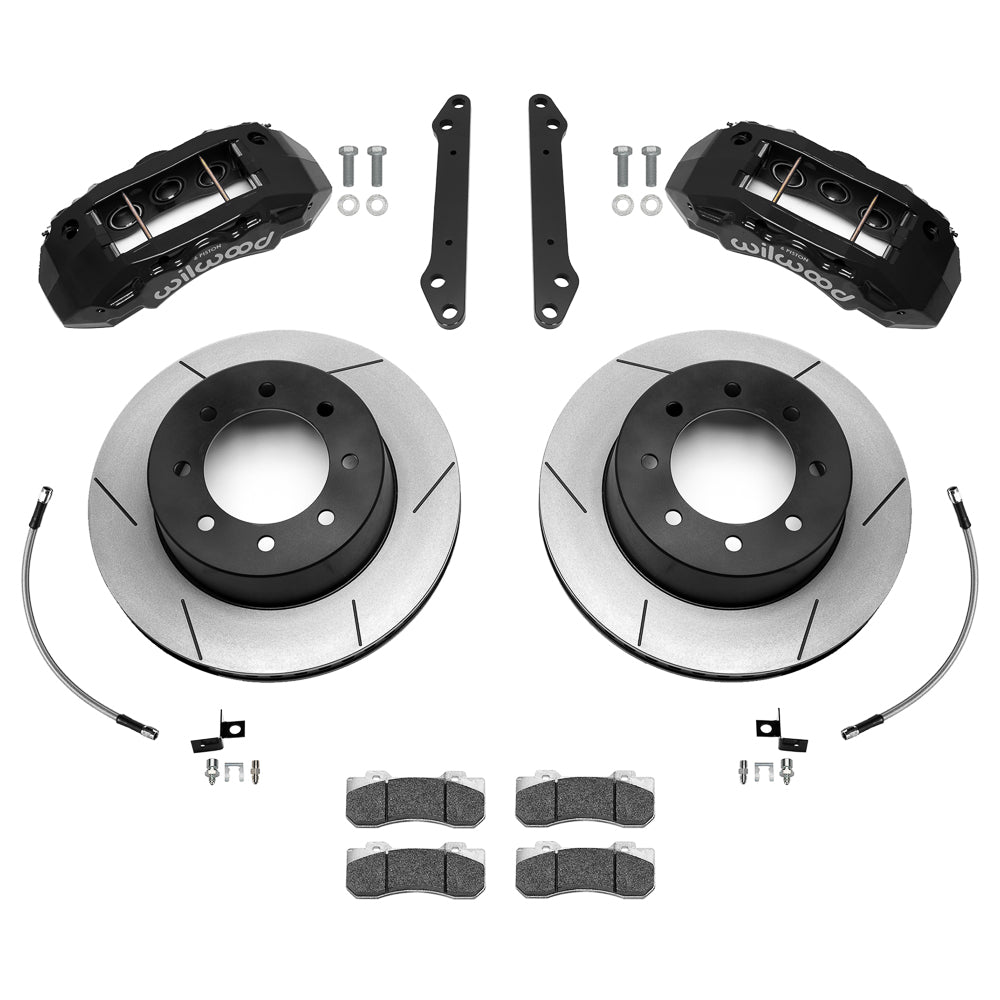

• Manufacturer identification: 140-17697
• Application and supplied quantity: rear conversion kit; Sold as a kit.

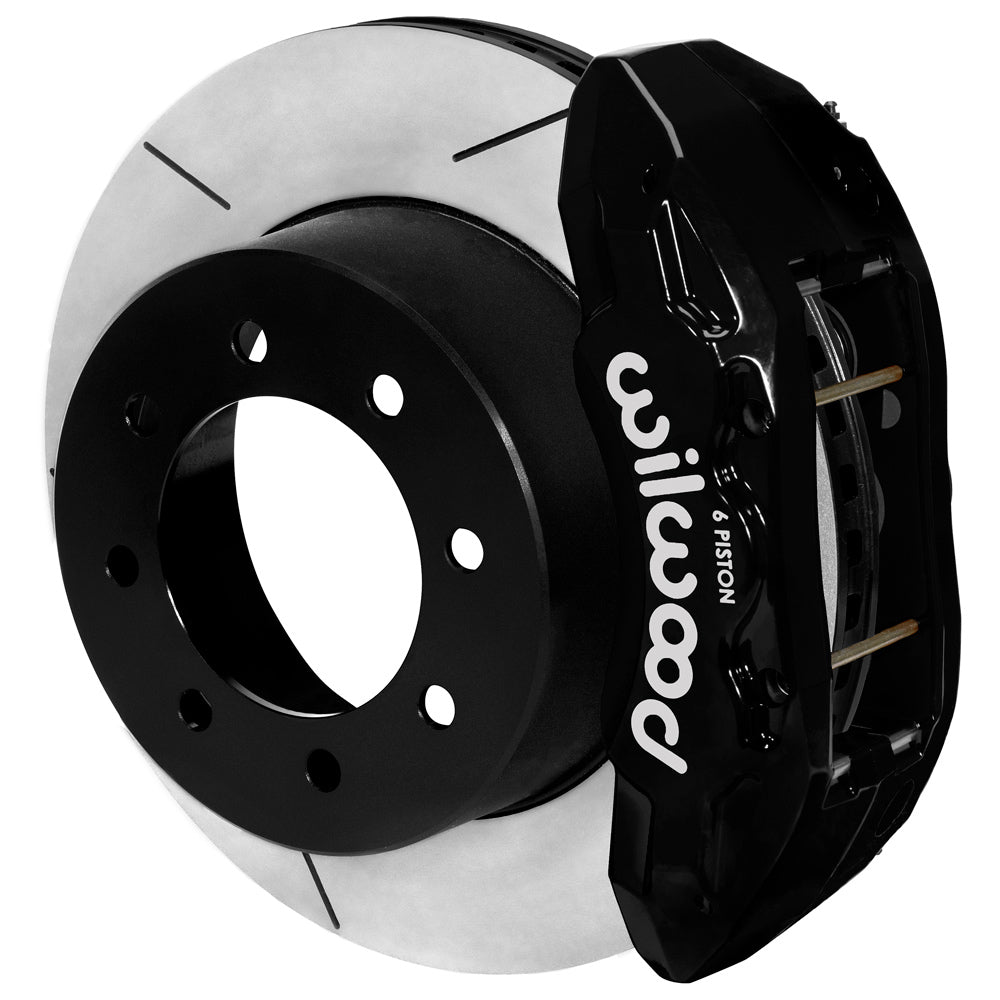

• Hydraulic service-caliper specification: TX6-DM; 6 pistons per caliper; Black Powder Coat
• Caliper attachment: Lug
• Brake pads supplied: BP-22
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 15.50 × 1.38 inches; Iron; GT Slotted
• Wheel envelope: 20 in; the complete wheel-clearance drawing determines fit
• Rotor attachment pattern: 8 x 6.69 in; 8 x 169.93 mm; verify the retained hub or axle flange separately
• Hydraulic hose selection: Included; confirm correct routing and hard-line connection
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster

Fitment & Compatibility

Check the rear axle and single-rear-wheel arrangement on the listed 2023–2025 F-250/F-350 Super Duty 4WD before selecting this black TX6-DM package. Its 15.50 × 1.38-inch rear rotors are different from the 15-inch front kit. DS-1599 requires trimming the factory dust shield to clear the caliper bracket; allow for that work before installation. The supplied braided hoses must reach the hard lines without tension through suspension travel. Verify both wheel spokes and barrel with the full drawing, even when the wheel is nominally 20 inches. Exact vehicle rows remain in the table below.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
