Wilwood Red TX6-DM Front Brake and 15-Inch Rotor Package for Ford F-250/F-350 Super Duty 4WD (2023–2025)

Red six-piston front calipers and 15-inch slotted rotors suit listed F-250 and F-350 Super Duty 4WD trucks. Check single-rear-wheel fitment. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, the company produces calipers, brake rotors, master cylinders, valves, fittings and brake lines. Component selection depends on the requirements of the complete braking system.

Technical Details

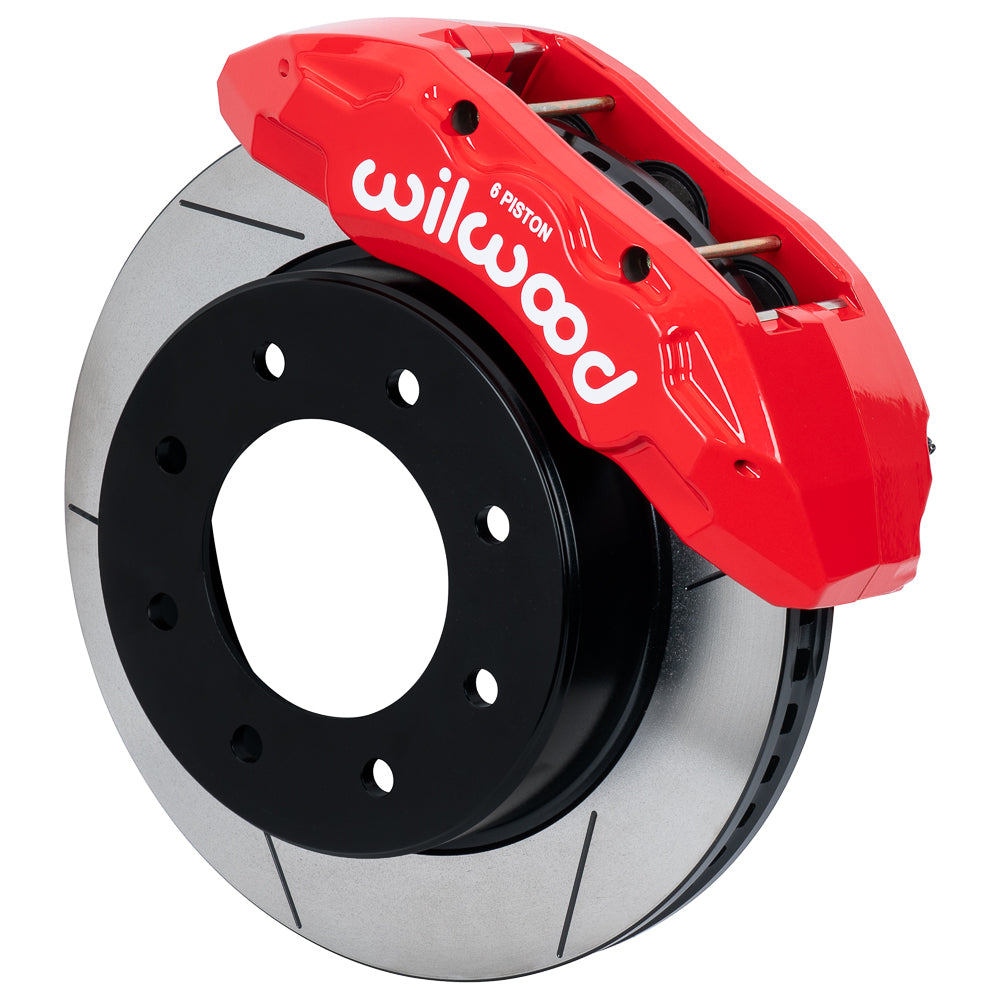

• Calipers: TX6-DM; 6 pistons per caliper; Red Powder Coat
• Caliper mounting: Lug
• Included pad compound: BP-22
• Piston material: Stainless
• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 15.00 × 1.50 inches; Iron; GT Slotted
• Wheel-size reference: 20 in; the complete wheel-clearance drawing determines fit
• Rotor / hat mounting drilling: 8 x 6.693 in; 8 x 170 mm; verify the retained hub or axle flange separately
• Hydraulic flexlines: Included; confirm correct routing and hard-line connection
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17690-R

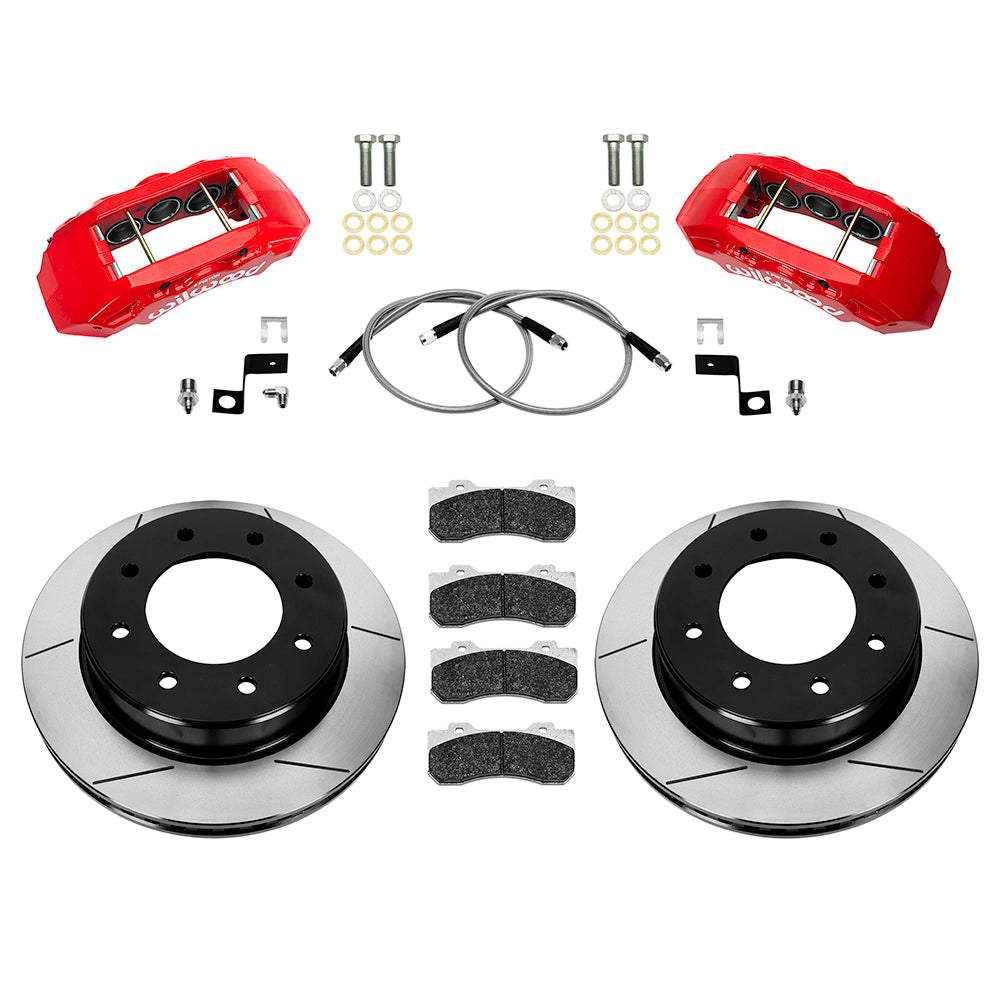

• Brake assembly: front conversion kit; Sold as a kit.

Fitment & Compatibility

For the listed 2023–2025 Ford F-250 Super Duty 4WD and F-350 Super Duty 4WD single-rear-wheel configurations. Verify the exact axle position, eight-lug hub and factory brake arrangement. Check the direct-mount caliper location against the full wheel drawing. A nominal 20-inch wheel is only a starting point: spoke shape, balance weights and inside-barrel clearance must also be verified. This kit supplies braided flexlines. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
