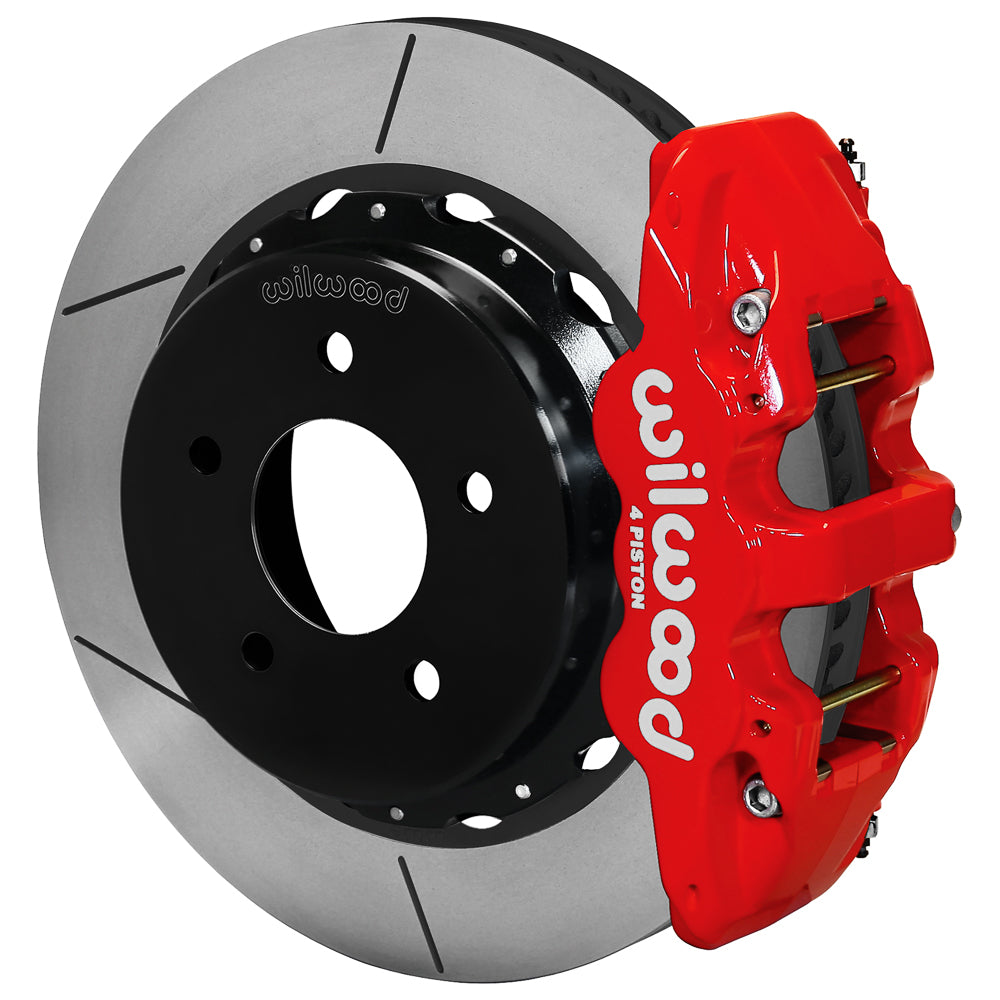

Wilwood Chevrolet and GMC C1500 Pickup Rear Disc Brake Kit, Red Calipers and 14-Inch Slotted Rotors (1988–1998)

Select red four-piston rear brakes for the measured Chevrolet and GMC C1500 Pickup axle. Match its 3.25-inch offset and five-lug configuration. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 14.00 × 1.10 inches; Spec-37 Iron; GT Slotted
• Wheel envelope: 18 in; the complete wheel-clearance drawing determines fit
• Rear housing interface: 88-98 C1500; measured axle offset 3.25 in
• Rotor hat bolt-circle specification: 5 x 5.00 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Parking system: Internal shoe parking brake; cable connection must be configured for the vehicle
• Manufacturer identification: 140-17673-R

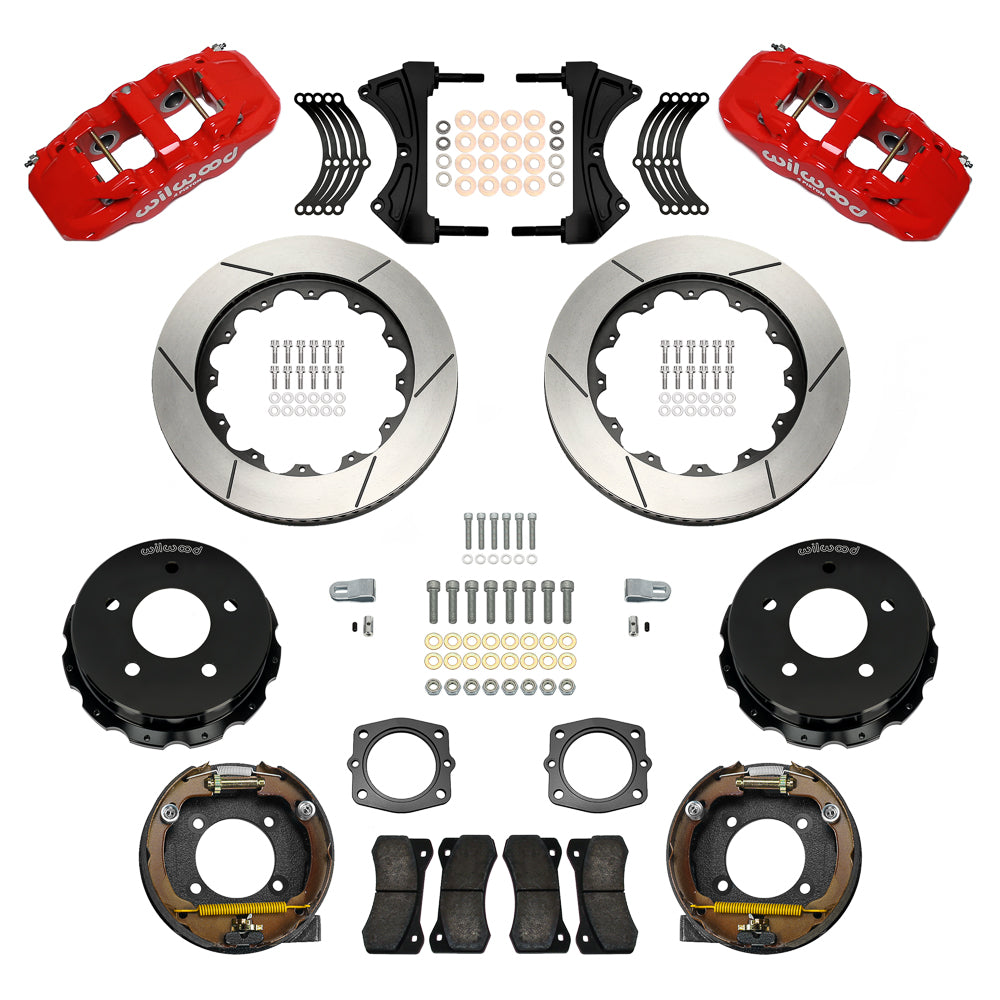

• Application and supplied quantity: rear conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: AERO4; 4 pistons per caliper; Red Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-10

Fitment & Compatibility

Applies to the listed 1988–1998 Chevrolet and GMC C1500 Pickup five-lug, two-wheel-drive axle configurations with a measured 3.25-inch offset. The table below distinguishes the early front-brake/chassis options and later five-lug versions; an Iron ProSpindle entry does not replace the rear-axle checks. Compare axle-flange registration, housing ends and wheel clearance before ordering. The factory parking cable must be modified using the included cable-end adapter kit. Hydraulic flexlines are separate, and the original rubber hoses do not adapt directly to these calipers.

Wilwood product specifications · Wilwood installation and compatibility information · Axle measurement worksheet · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the actual housing flange, axle offset, rotor registration and parking or hydraulic arrangement. We have over 20 years of experience working through parts and fitment details.
