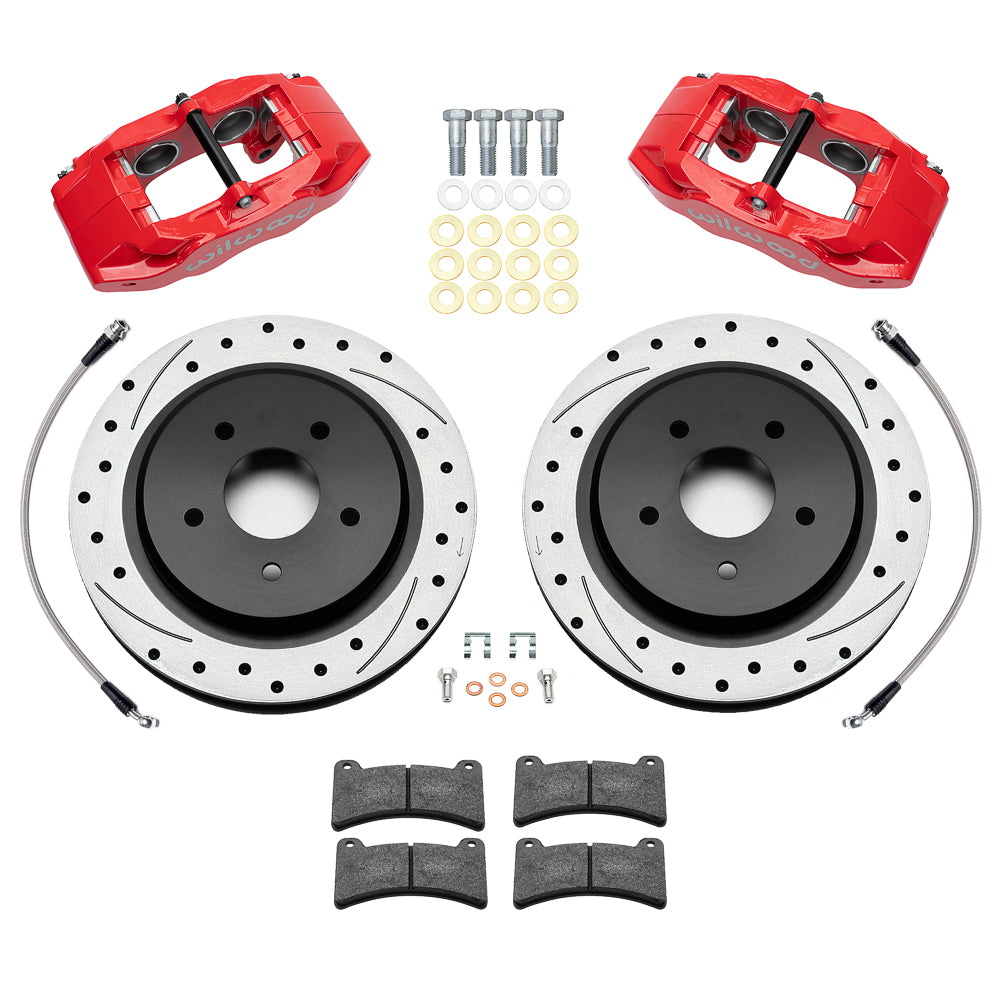

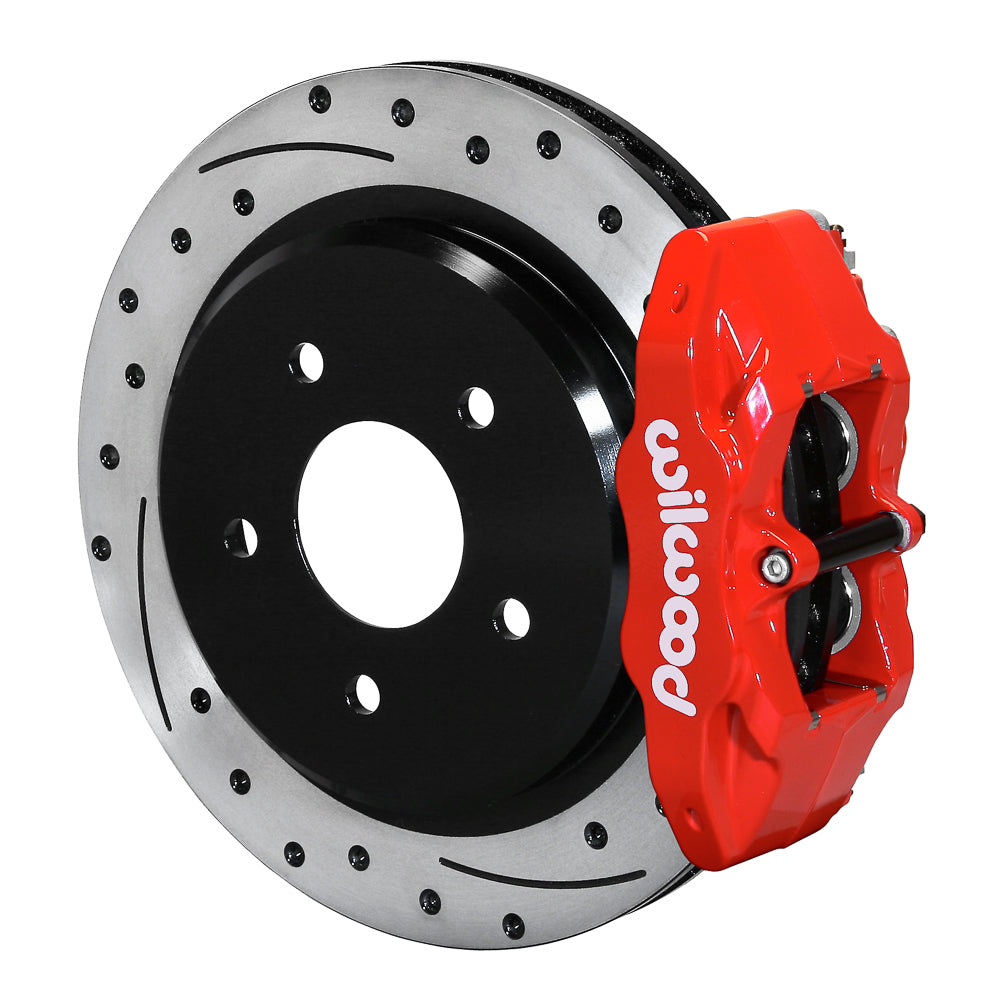

Wilwood Red DPC56 Rear Brake and SRP Rotor Package with Flexlines, Chevrolet Corvette C6 Base (2005–2013)

Corvette C6 Base rear calipers and rotors are replaced with red DPC56 and dimpled SRP components. Check wheel and parking-brake clearances. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require individual components matched to the complete brake system.

Technical Details

• Mounting-hole arrangement on the rotor / hat: 5 x 4.75 in; 5 x 120.65 mm; verify the retained hub or axle flange separately
• Brake-hose provision: Included; confirm correct routing and hard-line connection
• Supplied installation fasteners: Included; verify the installed fastener engagement
• Components outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Wilwood manufacturer number: 140-17672-DR
• Kit function and position: rear conversion kit; Sold as a kit.
• Caliper family, piston count and finish: DPC56; 4 pistons per caliper; Red Powder Coat
• Mount arrangement: Lug
• Supplied brake-pad material: BP-10
• Caliper piston construction: Stainless
• Caliper fluid connection: M10 x 1.00
• Rotor diameter, width, material and face: 12.01 × 1.03 inches; Iron; SRP Dimpled & Slotted
• Nominal wheel diameter starting point: 17 in; the complete wheel-clearance drawing determines fit

Fitment & Compatibility

For the 2005–2013 Corvette C6 Base rear axle, red DPC56 calipers are paired with the supplied 12.01 × 1.03-inch SRP rotor/hat assemblies. Match the original-size rear brake package and parking arrangement before ordering. The rotor faces are dimpled and slotted as specified by Wilwood, and BP-10 pads and braided hoses are included. Use DS-1575 to compare spoke and barrel clearance; a checked Z06 wheel does not make C6 Z06 brakes interchangeable. Other wheels can require spacers. Confirm the exact Base-model years in the table below and keep the hoses clear through suspension travel.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
