Wilwood DPC56 Rear Calipers and 12.01-Inch Dimpled Rotor Kit, Black, Chevrolet Corvette C6 Base (2005–2013)

For Corvette C6 Base rear brakes, black DPC56 calipers accompany 12.01-inch SRP rotors and lines. Confirm retained parking-brake compatibility. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems and components. The company is based in Camarillo, California. Calipers, master cylinders, rotors, brake lines, fittings and valves make up a range serving motorsport, street-performance and specialized applications, with each component chosen for the complete system.

Technical Details

• Items not supplied: spindles, wheel hubs, master cylinder, brake booster
• Wilwood part number: 140-17672-D

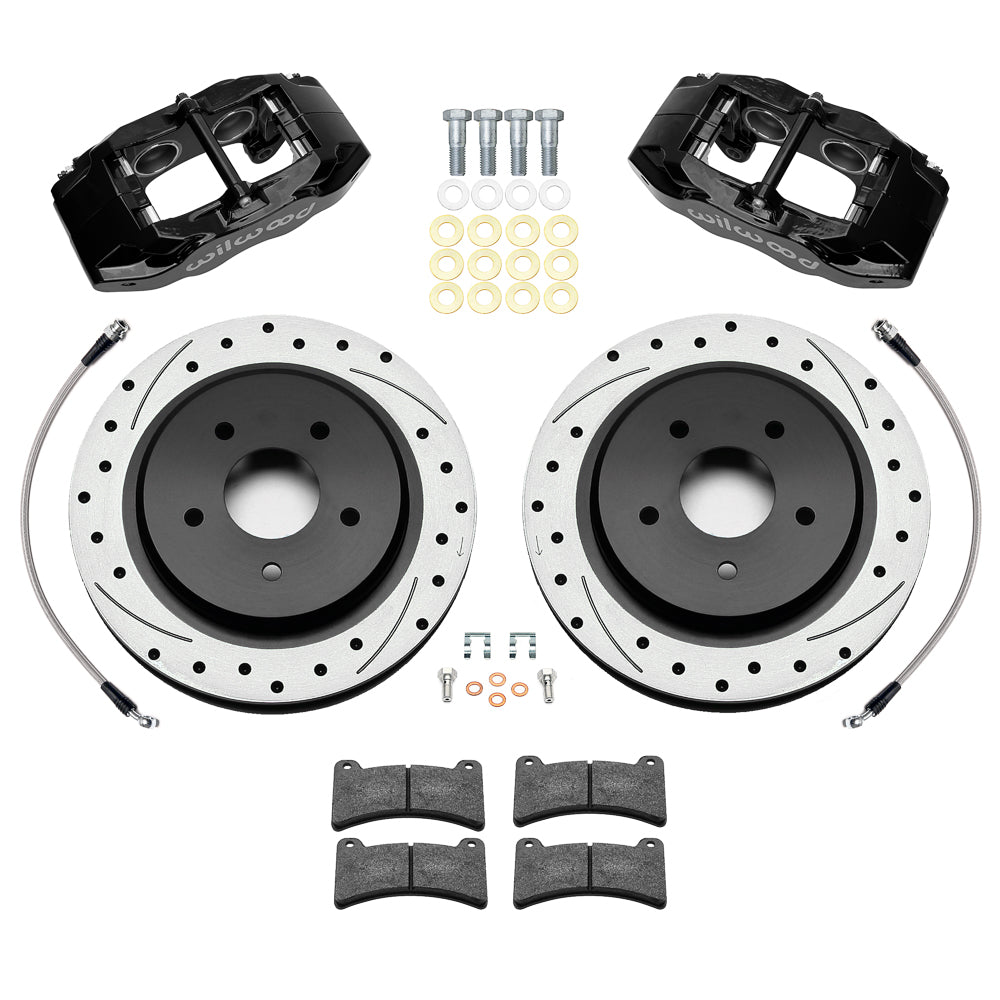

• Conversion type: rear conversion kit; Sold as a kit.
• Caliper configuration: DPC56; 4 pistons per caliper; Black Powder Coat
• Bracket-to-caliper mounting: Lug
• Pad compound selection: BP-10
• Caliper piston specification: Stainless
• Hydraulic inlet thread: M10 x 1.00
• Brake-rotor package: 12.01 × 1.03 inches; Iron; SRP Dimpled & Slotted
• Wheel-diameter reference: 17 in; the complete wheel-clearance drawing determines fit
• Retained-hub rotor drilling: 5 x 4.75 in; 5 x 120.65 mm; verify the retained hub or axle flange separately
• Flexline supply: Included; confirm correct routing and hard-line connection
• Installation hardware: Included; verify the installed fastener engagement

Fitment & Compatibility

This rear conversion is for 2005–2013 Chevrolet Corvette C6 Base models. The supplied SRP rotors use the specified original-size brake envelope. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
