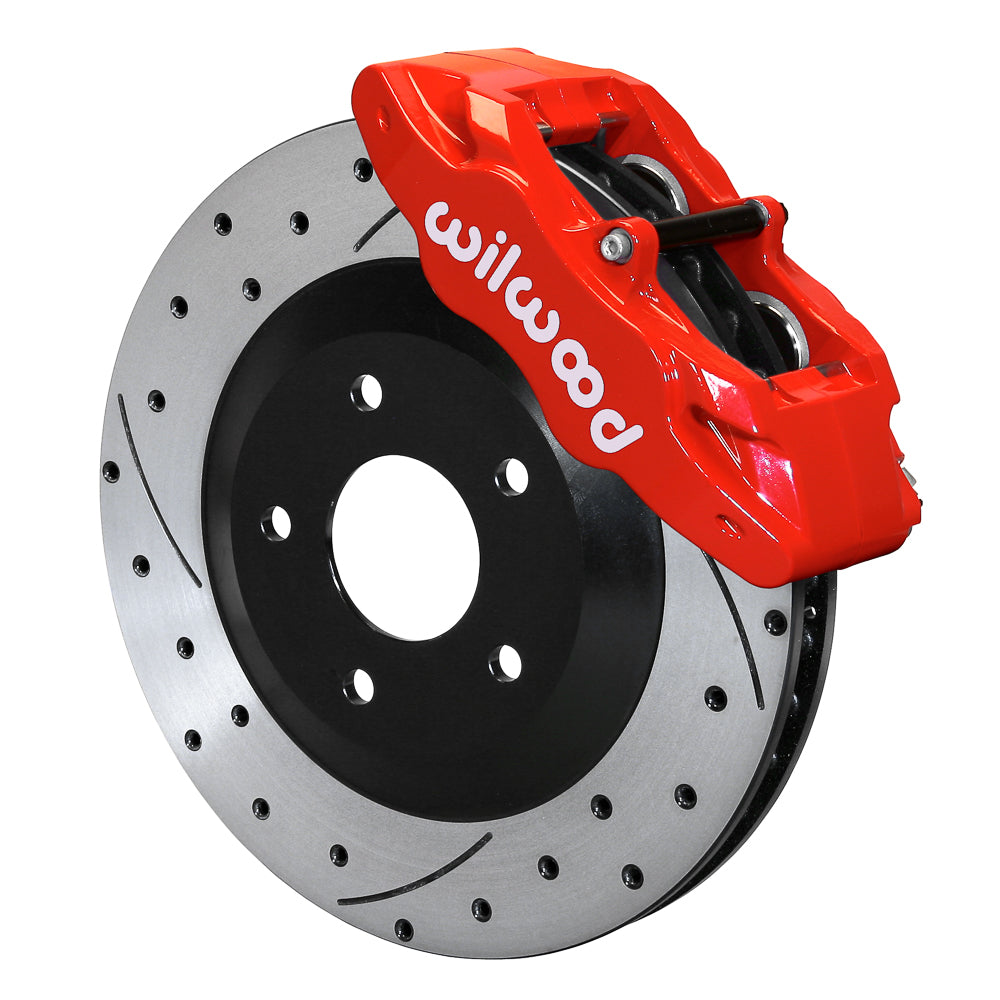

Wilwood Front Caliper and Rotor Conversion, Red SLC56 and Dimpled SRP, Chevrolet Corvette C6 Base (2005–2013)

Give Corvette C6 Base front brakes red SLC56 calipers, dimpled SRP rotors and matching hoses. Verify the original rotor size and wheel envelope. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems and components. The company is based in Camarillo, California. Calipers, master cylinders, rotors, brake lines, fittings and valves make up a range serving motorsport, street-performance and specialized applications, with each component chosen for the complete system.

Technical Details

• Wheel-diameter reference: 17 in; the complete wheel-clearance drawing determines fit
• Retained-hub rotor drilling: 5 x 4.75 in; 5 x 120.65 mm; verify the retained hub or axle flange separately
• Flexline supply: Included; confirm correct routing and hard-line connection
• Installation hardware: Included; verify the installed fastener engagement
• Items not supplied: spindles, wheel hubs, master cylinder, brake booster
• Wilwood part number: 140-17671-DR
• Conversion type: front conversion kit; Sold as a kit.
• Caliper configuration: SLC56; 4 pistons per caliper; Red Powder Coat
• Bracket-to-caliper mounting: Lug
• Pad compound selection: BP-10
• Caliper piston specification: Stainless
• Hydraulic inlet thread: M10 x 1.00
• Brake-rotor package: 12.80 × 1.25 inches; Iron; SRP Dimpled & Slotted

Fitment & Compatibility

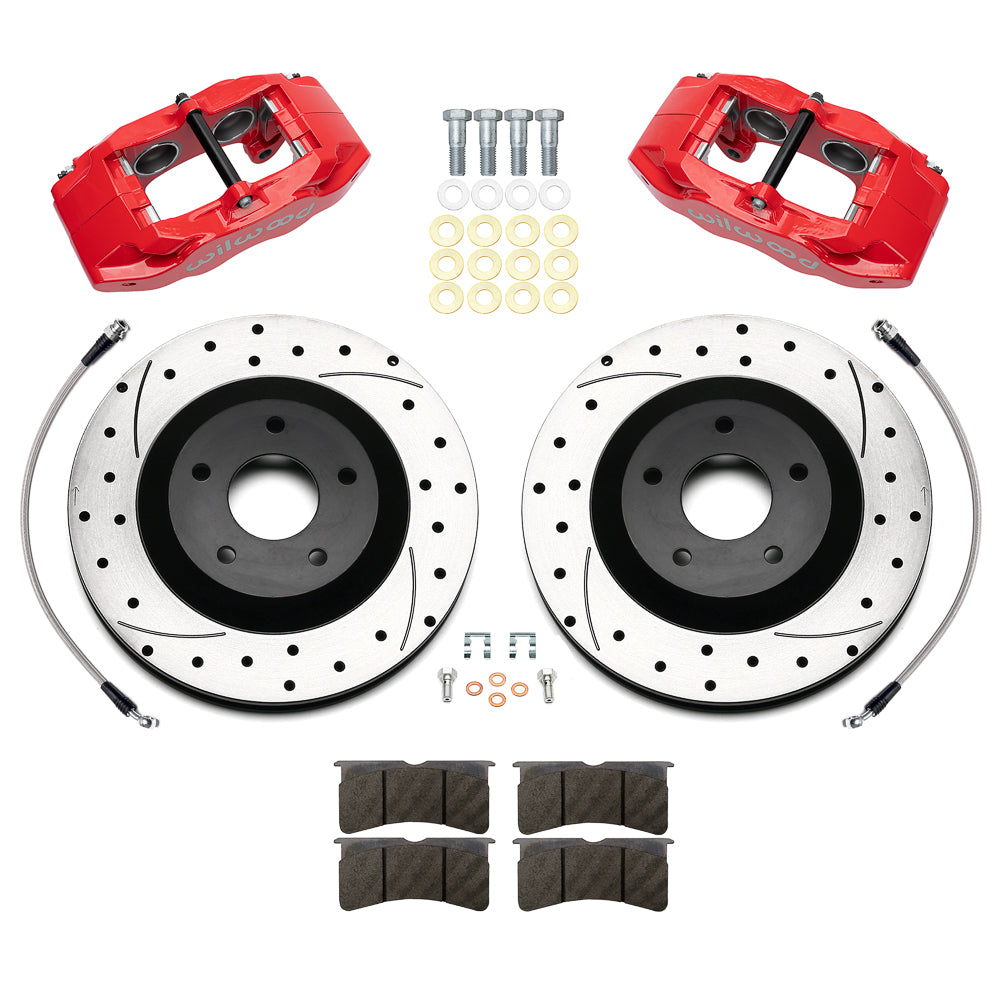

The red front SLC56 package belongs to the C6 Base Corvette with the specified 12.80-inch brake arrangement, covering the 2005–2013 rows below. It supplies dimpled-and-slotted SRP rotors measuring 1.25 inches wide, BP-10 pads and braided flexlines. Confirm the factory brake size rather than using a Z06 badge or wheel design as the application test. DS-1574 requires inspection of the complete caliper envelope; only Z06 wheel clearance was specifically checked, and other wheels may need spacers. Verify hard-line connections and clearance at full steering lock.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
