Wilwood Black SLC56 Front Brake Kit with 12.80-Inch SRP Rotors and Hoses, Chevrolet Corvette C6 Base (2005–2013)

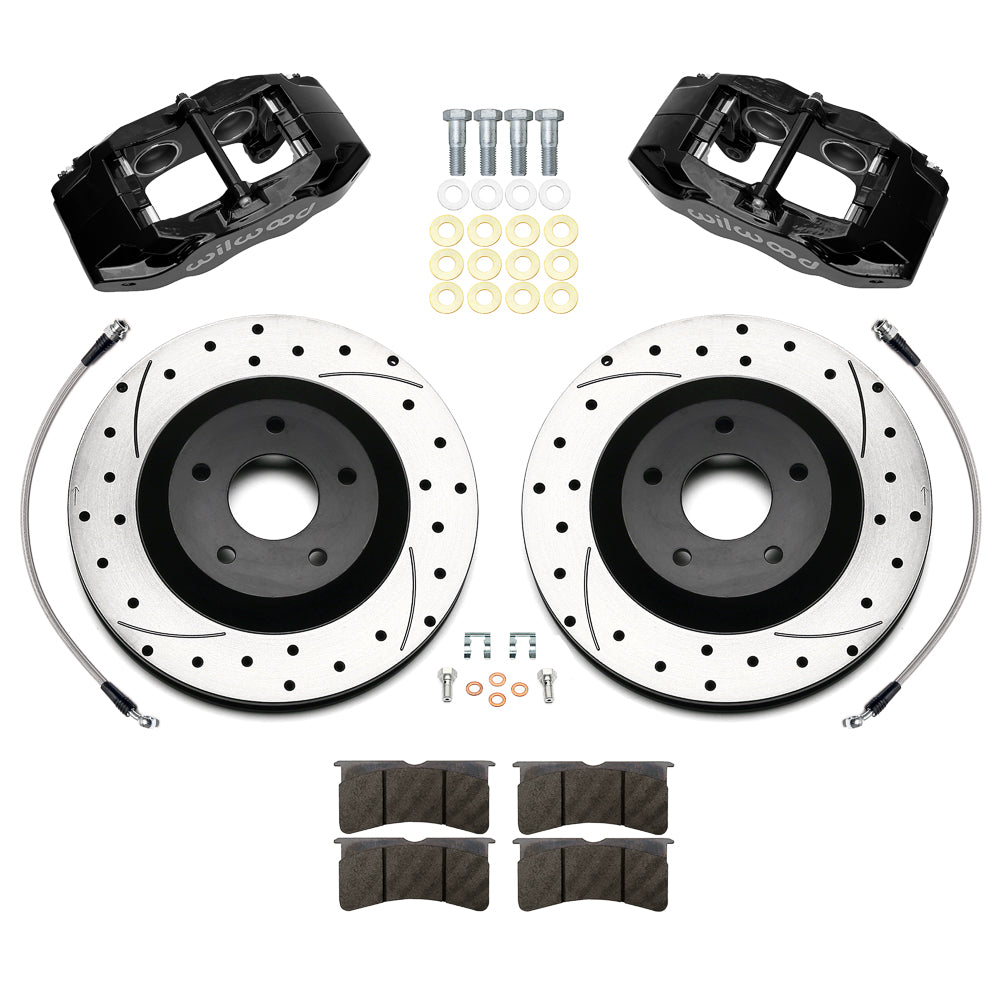

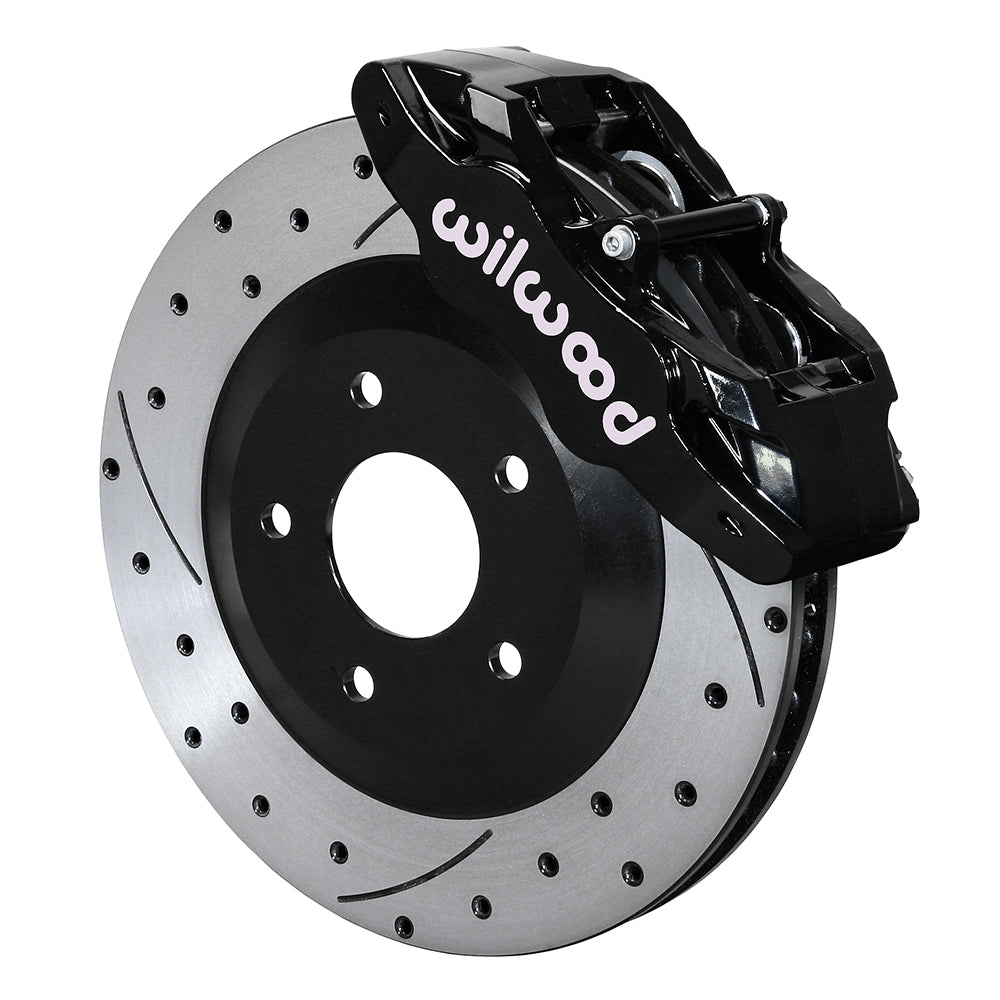

Black SLC56 calipers and SRP front rotors suit the specified Corvette C6 Base brakes. Check wheel space around the 12.80-inch rotor assembly. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems along with calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications each call for components matched to the overall braking arrangement.

Technical Details

• Supplied installation fasteners: Included; verify the installed fastener engagement
• Components outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Wilwood manufacturer number: 140-17671-D
• Kit function and position: front conversion kit; Sold as a kit.
• Caliper family, piston count and finish: SLC56; 4 pistons per caliper; Black Powder Coat
• Mount arrangement: Lug
• Supplied brake-pad material: BP-10
• Caliper piston construction: Stainless
• Caliper fluid connection: M10 x 1.00
• Rotor diameter, width, material and face: 12.80 × 1.25 inches; Iron; SRP Dimpled & Slotted
• Nominal wheel diameter starting point: 17 in; the complete wheel-clearance drawing determines fit
• Mounting-hole arrangement on the rotor / hat: 5 x 4.75 in; 5 x 120.65 mm; verify the retained hub or axle flange separately
• Brake-hose provision: Included; confirm correct routing and hard-line connection

Fitment & Compatibility

This front conversion is for 2005–2013 Chevrolet Corvette C6 Base models. The supplied SRP rotors use the specified original-size brake envelope. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
