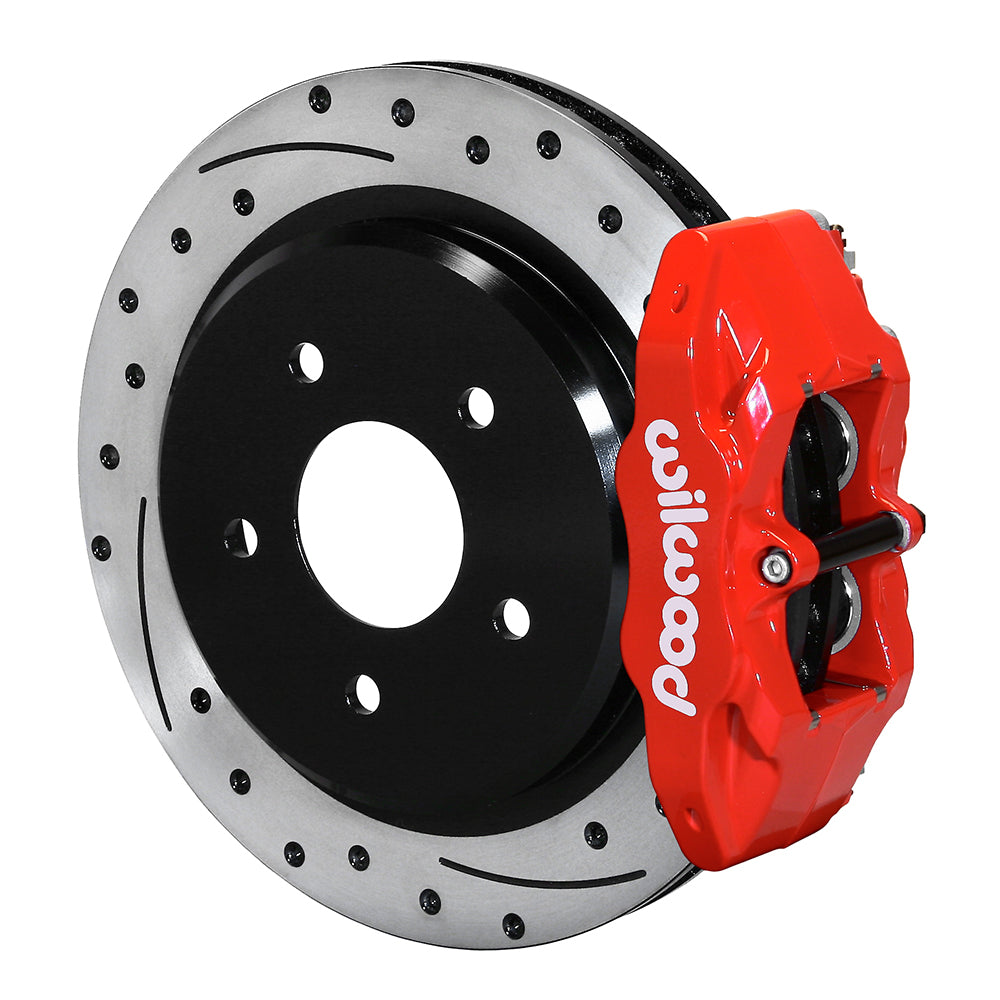

Wilwood Corvette C5 and Z06 Rear Caliper and Rotor Kit, Red DPC56 with SRP Faces (1997–2004)

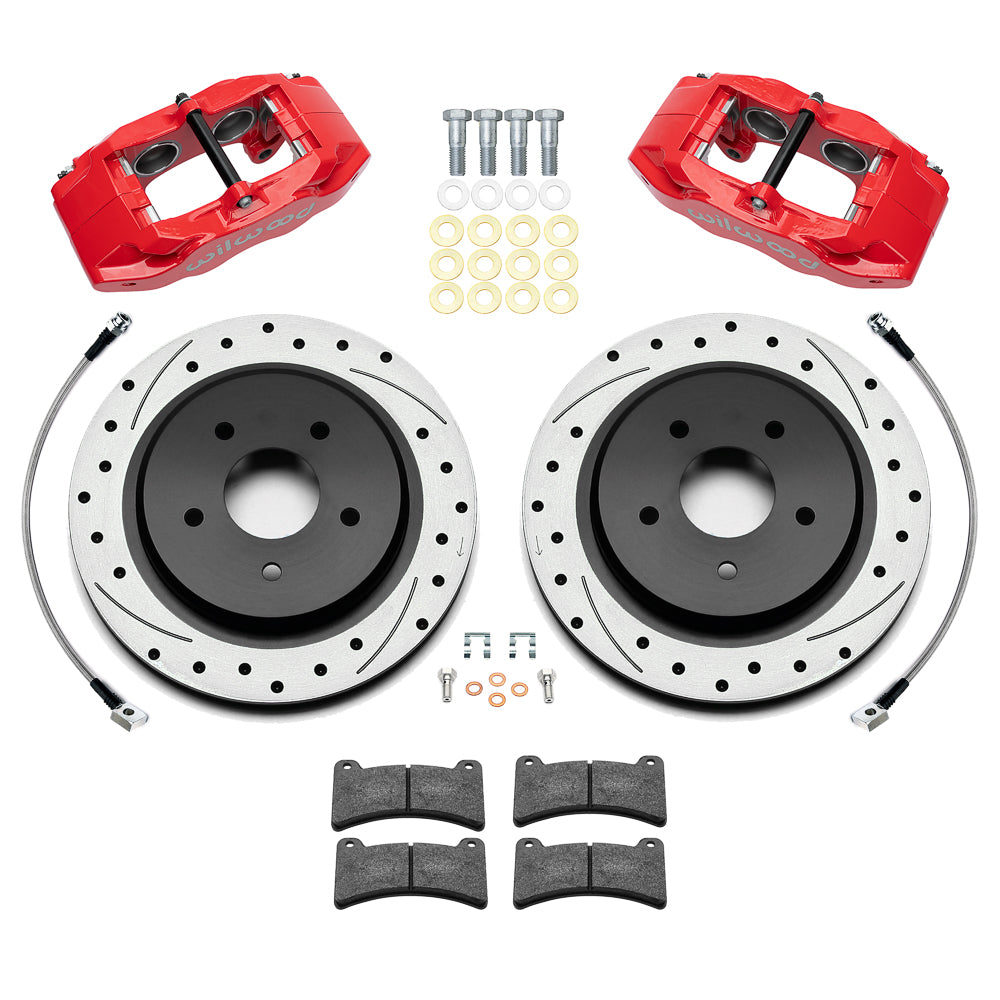

Red DPC56 rear brakes for Corvette C5 and Z06 include dimpled and slotted rotors plus flexlines. Compare the existing rear brake configuration. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems and components. The company is based in Camarillo, California. Calipers, master cylinders, rotors, brake lines, fittings and valves make up a range serving motorsport, street-performance and specialized applications, with each component chosen for the complete system.

Technical Details

• Rotor diameter, width, material and face: 12.01 × 1.03 inches; Iron; SRP Dimpled & Slotted
• Nominal wheel diameter starting point: 17 in; the complete wheel-clearance drawing determines fit
• Mounting-hole arrangement on the rotor / hat: 5 x 4.75 in; 5 x 120.65 mm; verify the retained hub or axle flange separately
• Brake-hose provision: Included; confirm correct routing and hard-line connection
• Supplied installation fasteners: Included; verify the installed fastener engagement
• Components outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Wilwood manufacturer number: 140-17670-DR
• Kit function and position: rear conversion kit; Sold as a kit.
• Caliper family, piston count and finish: DPC56; 4 pistons per caliper; Red Powder Coat
• Mount arrangement: Lug
• Supplied brake-pad material: BP-10
• Caliper piston construction: Stainless
• Caliper fluid connection: M10 x 1.00

Fitment & Compatibility

This rear conversion is for 1997–2004 Chevrolet Corvette C5, including the listed Z06 applications. The supplied SRP rotors use the specified original-size brake envelope. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
