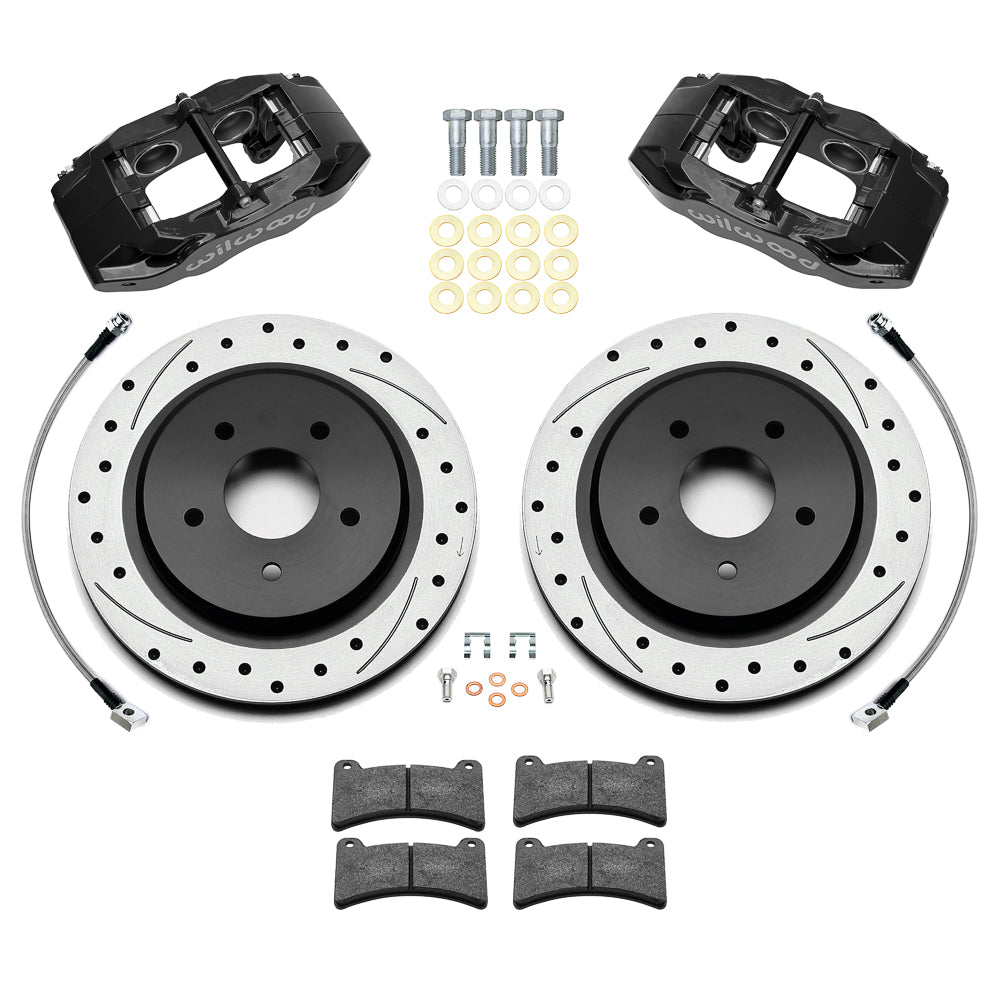

Wilwood Rear DPC56 Brake and 12.01-Inch SRP Rotor Kit, Black with Flexlines, Chevrolet Corvette C5 and Z06 (1997–2004)

Fit black DPC56 rear calipers and 12.01-inch SRP rotors to the specified Corvette C5 and Z06 layout. Confirm wheel shape and parking hardware. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Flexline supply: Included; confirm correct routing and hard-line connection
• Installation hardware: Included; verify the installed fastener engagement
• Items not supplied: spindles, wheel hubs, master cylinder, brake booster
• Wilwood part number: 140-17670-D
• Conversion type: rear conversion kit; Sold as a kit.
• Caliper configuration: DPC56; 4 pistons per caliper; Black Powder Coat
• Bracket-to-caliper mounting: Lug
• Pad compound selection: BP-10
• Caliper piston specification: Stainless
• Hydraulic inlet thread: M10 x 1.00
• Brake-rotor package: 12.01 × 1.03 inches; Iron; SRP Dimpled & Slotted
• Wheel-diameter reference: 17 in; the complete wheel-clearance drawing determines fit
• Retained-hub rotor drilling: 5 x 4.75 in; 5 x 120.65 mm; verify the retained hub or axle flange separately

Fitment & Compatibility

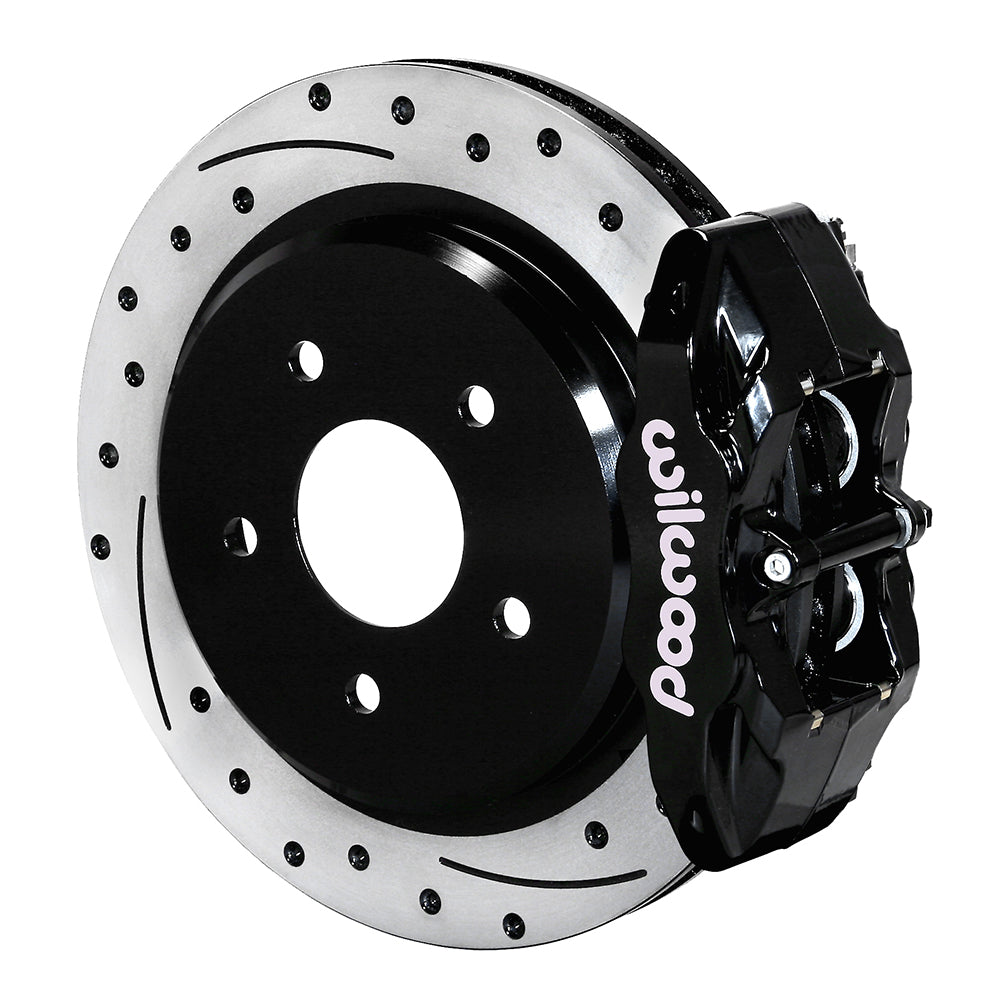

The black DPC56 rear calipers are packaged with SRP replacement rotor/hat assemblies measuring 12.01 × 1.03 inches for the listed 1997–2004 Corvette C5 and Z06. Confirm the existing rear brake and parking arrangement rather than selecting by caliper color or wheel diameter. BP-10 pads and braided flexlines are included. DS-1575 governs hose routing and the caliper envelope; wheels other than the checked Z06 design require measurement and can need spacers. Refer to the table below for the C5/Z06 application.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
