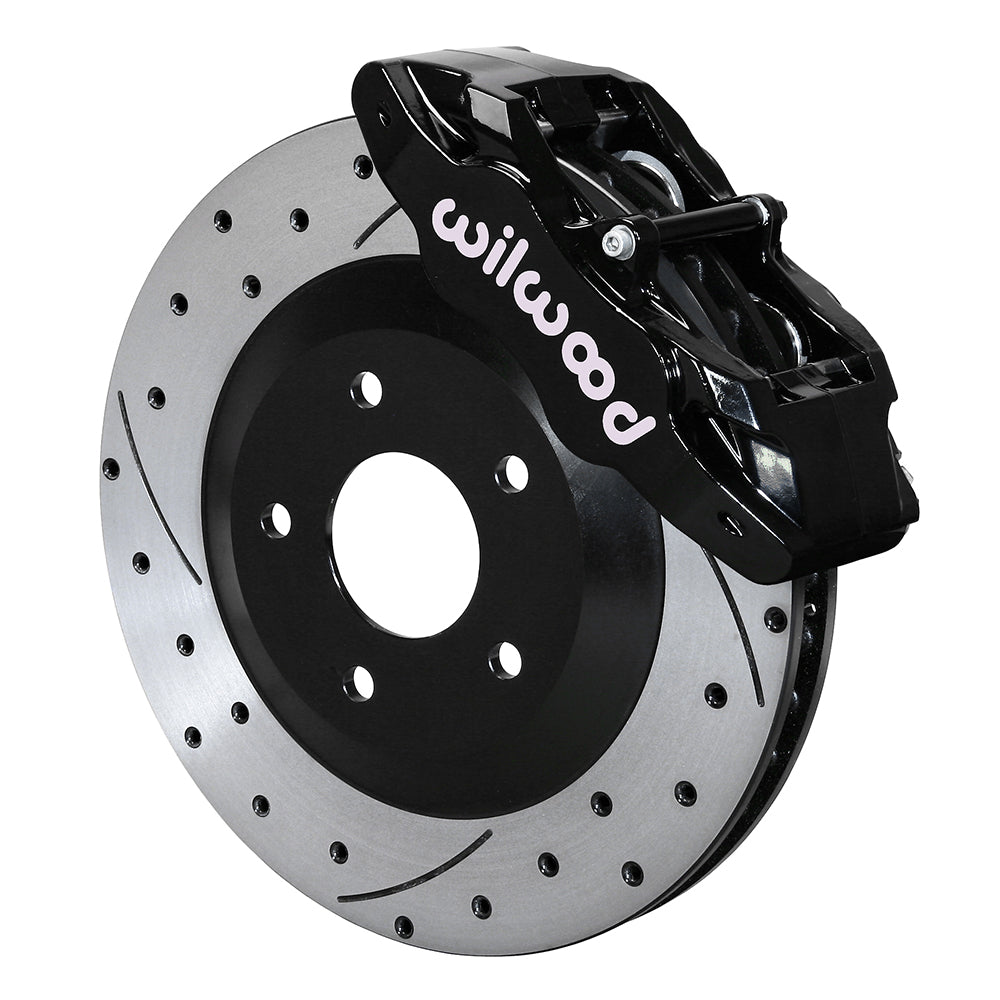

Wilwood Front SLC56 Caliper and 12.80-Inch SRP Rotor Kit, Black, Chevrolet Corvette C5 and Z06 (1997–2004)

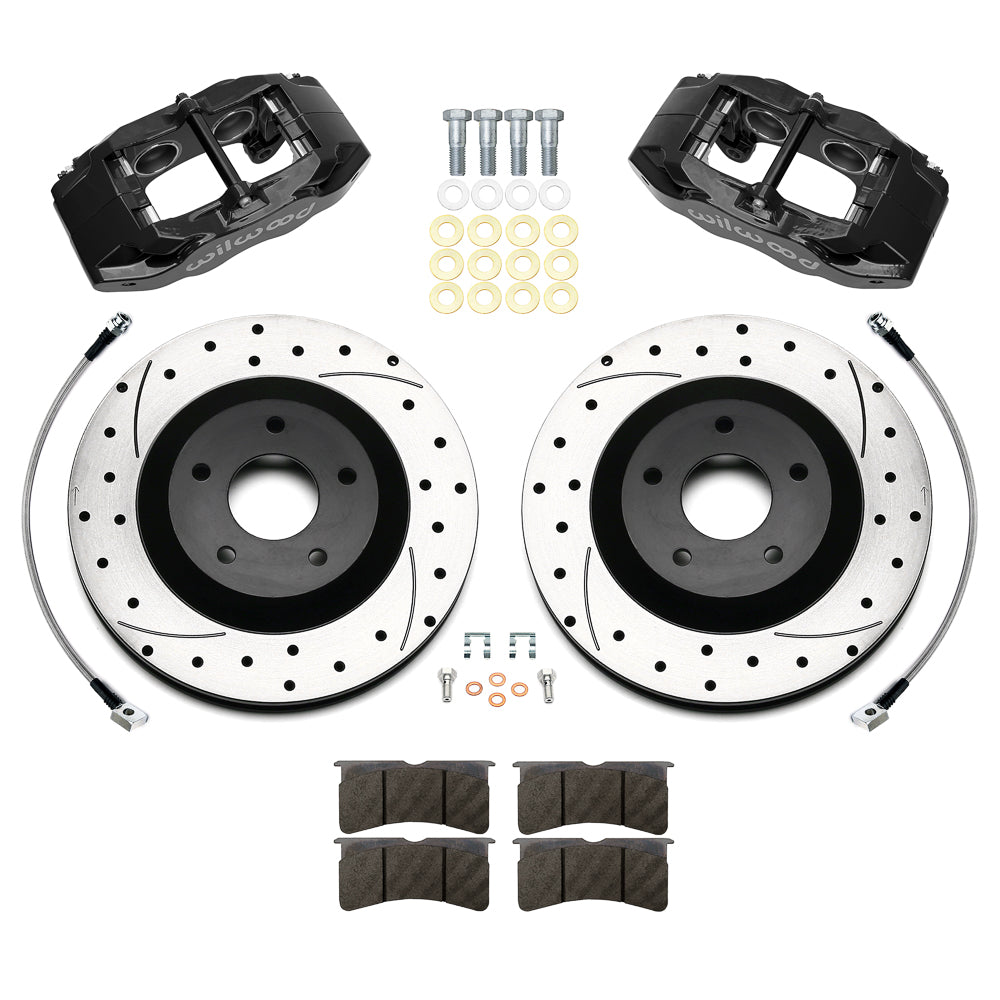

Corvette C5 and Z06 front brakes receive black SLC56 calipers, 12.80-inch SRP rotors and hoses. Check the original brake package and wheel space. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Mounting-hole arrangement on the rotor / hat: 5 x 4.75 in; 5 x 120.65 mm; verify the retained hub or axle flange separately
• Brake-hose provision: Included; confirm correct routing and hard-line connection
• Supplied installation fasteners: Included; verify the installed fastener engagement
• Components outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Wilwood manufacturer number: 140-17669-D
• Kit function and position: front conversion kit; Sold as a kit.
• Caliper family, piston count and finish: SLC56; 4 pistons per caliper; Black Powder Coat
• Mount arrangement: Lug
• Supplied brake-pad material: BP-10
• Caliper piston construction: Stainless
• Caliper fluid connection: M10 x 1.00
• Rotor diameter, width, material and face: 12.80 × 1.25 inches; Iron; SRP Dimpled & Slotted
• Nominal wheel diameter starting point: 17 in; the complete wheel-clearance drawing determines fit

Fitment & Compatibility

This front conversion is for 1997–2004 Chevrolet Corvette C5, including the listed Z06 applications. The supplied SRP rotors use the specified original-size brake envelope. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
