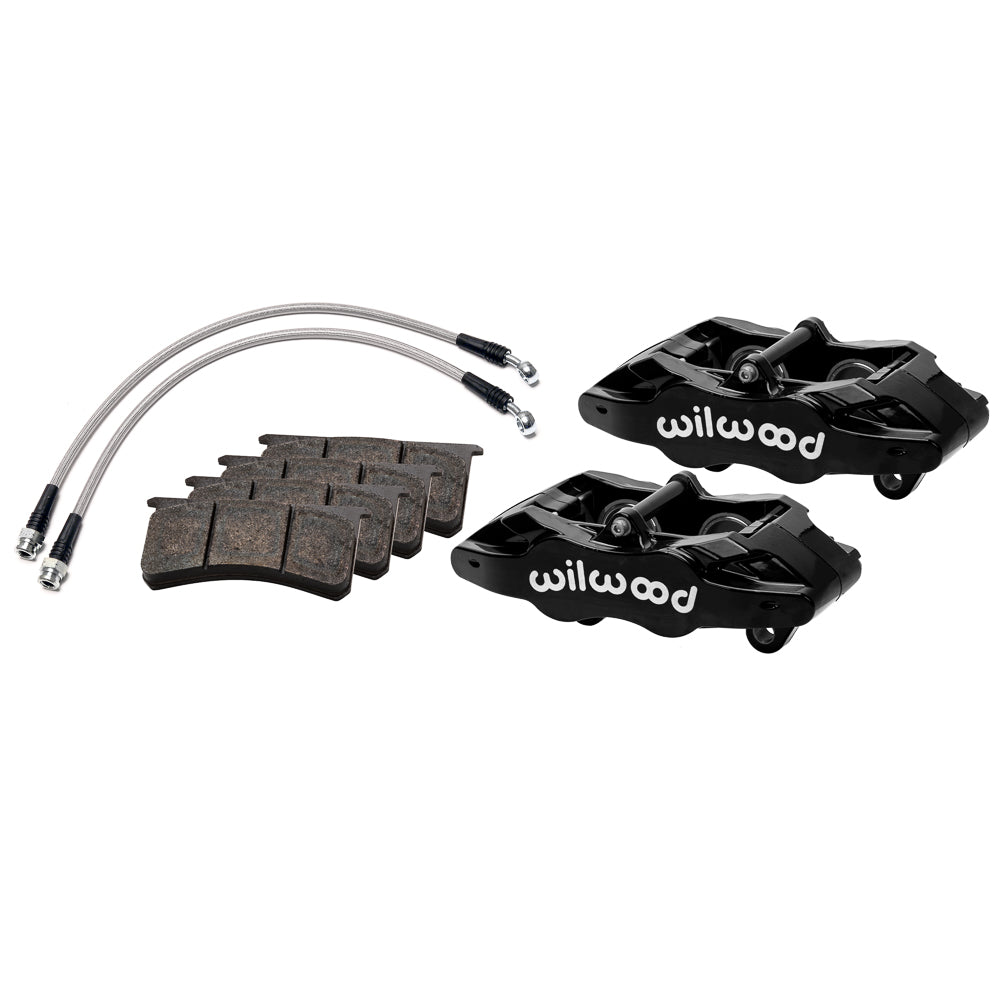

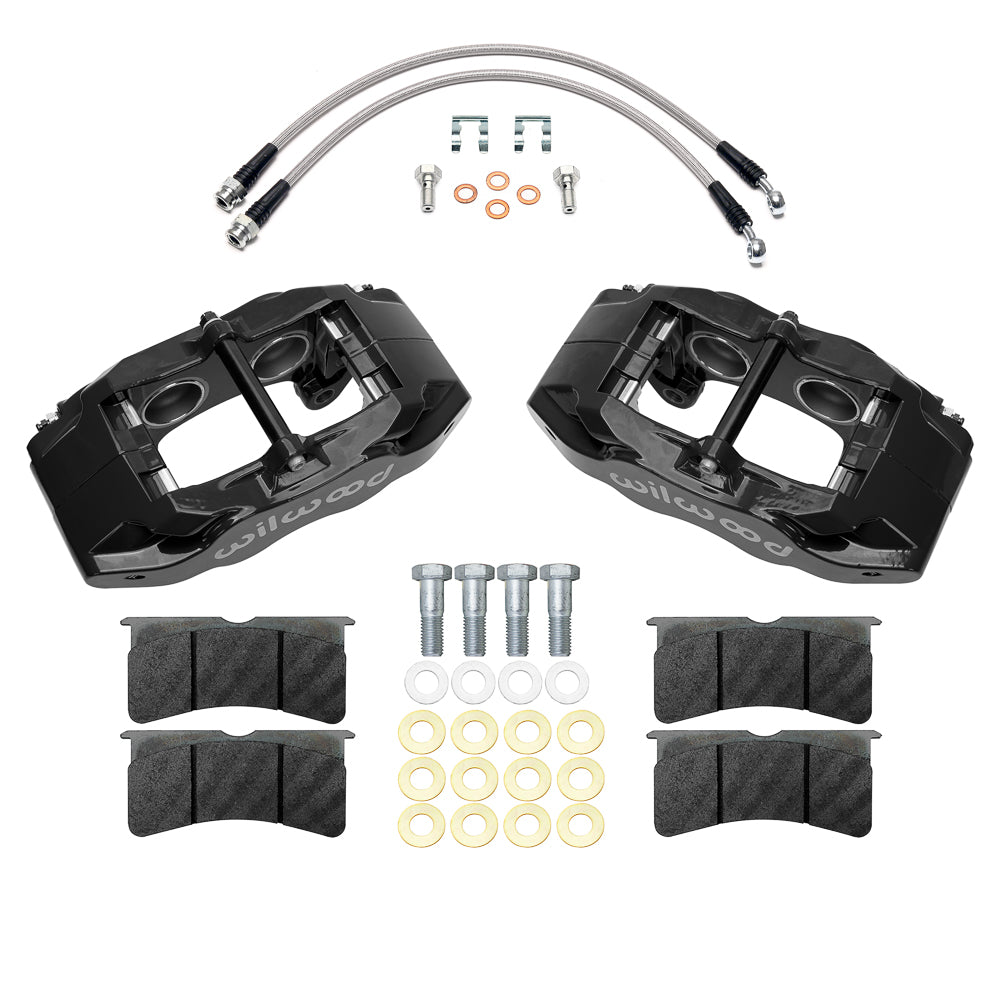

Wilwood Front SLC56 Brake Caliper Kit, Black with Hoses, Chevrolet Corvette C6 Base (2005–2013)

Use black SLC56 front calipers on Corvette C6 Base models with the specified 12.80-inch rotors. Supplied flexlines still need correct routing. This package replaces the calipers and pads while retaining the specified original-size rotor arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

• Wheel-size reference: 17 in; the complete wheel-clearance drawing determines fit
• Hydraulic flexlines: Included; confirm correct routing and hard-line connection
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17667-BK
• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: SLC56; 4 pistons per caliper; Black Powder Coat
• Caliper mounting: Lug
• Included pad compound: BP-10
• Piston material: Stainless
• Hydraulic caliper inlet: M10 x 1.00
• Rotors: 12.80-inch front rotor package retained; rotors are not included

Fitment & Compatibility

On the 2005–2013 Chevrolet Corvette C6 Base, this front caliper package retains the factory 12.80-inch rotor arrangement. Check those rotors for the correct dimensions and service condition before fitting the black SLC56 units; new rotors are separate. The included flexlines must follow the vehicle hard-line connections and clear the steering and suspension. Wilwood checked caliper clearance with Z06 wheels, but C6 Z06 brakes are not part of this C6 Base application. Compare any other wheel against DS-1574; spacers can be necessary. Use the fitment table below for the exact Base-model rows.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
