Wilwood Rear DPC56 Brake Caliper Conversion, Red with Flexlines, Chevrolet Corvette C5 and Z06 (1997–2004)

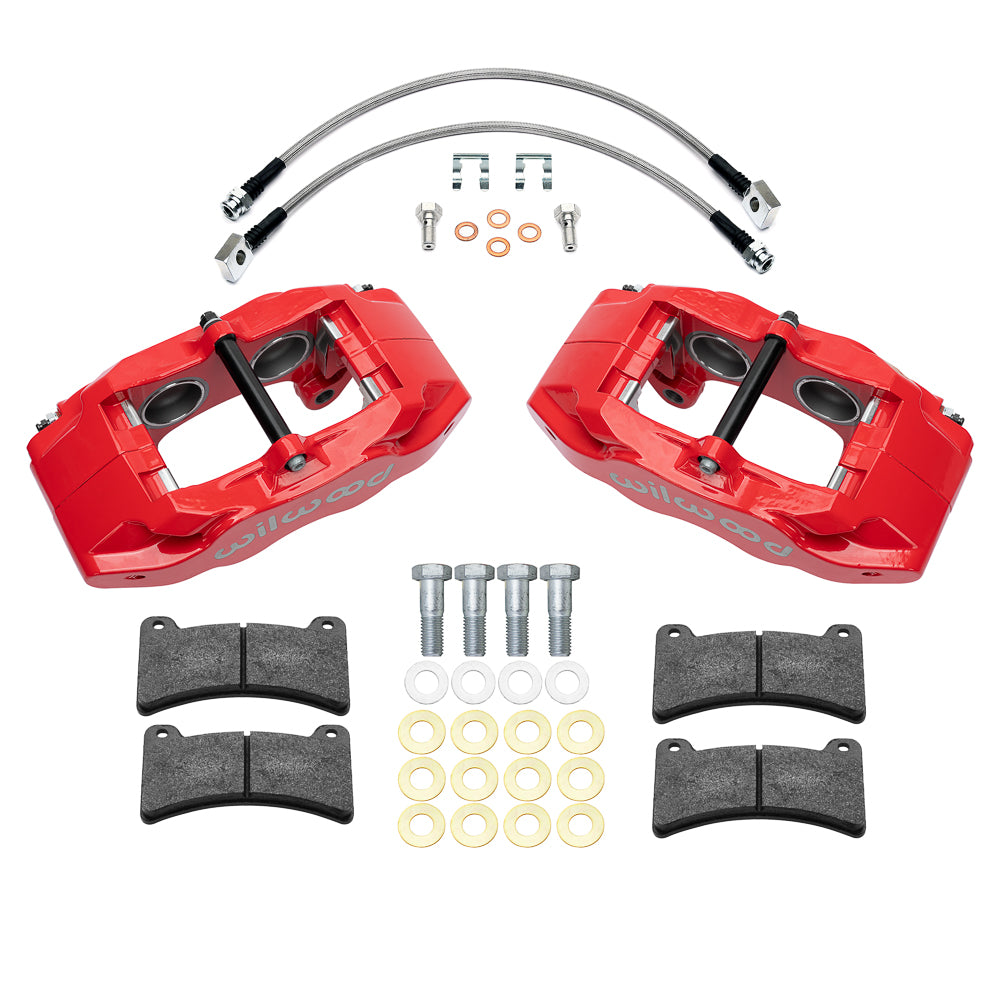

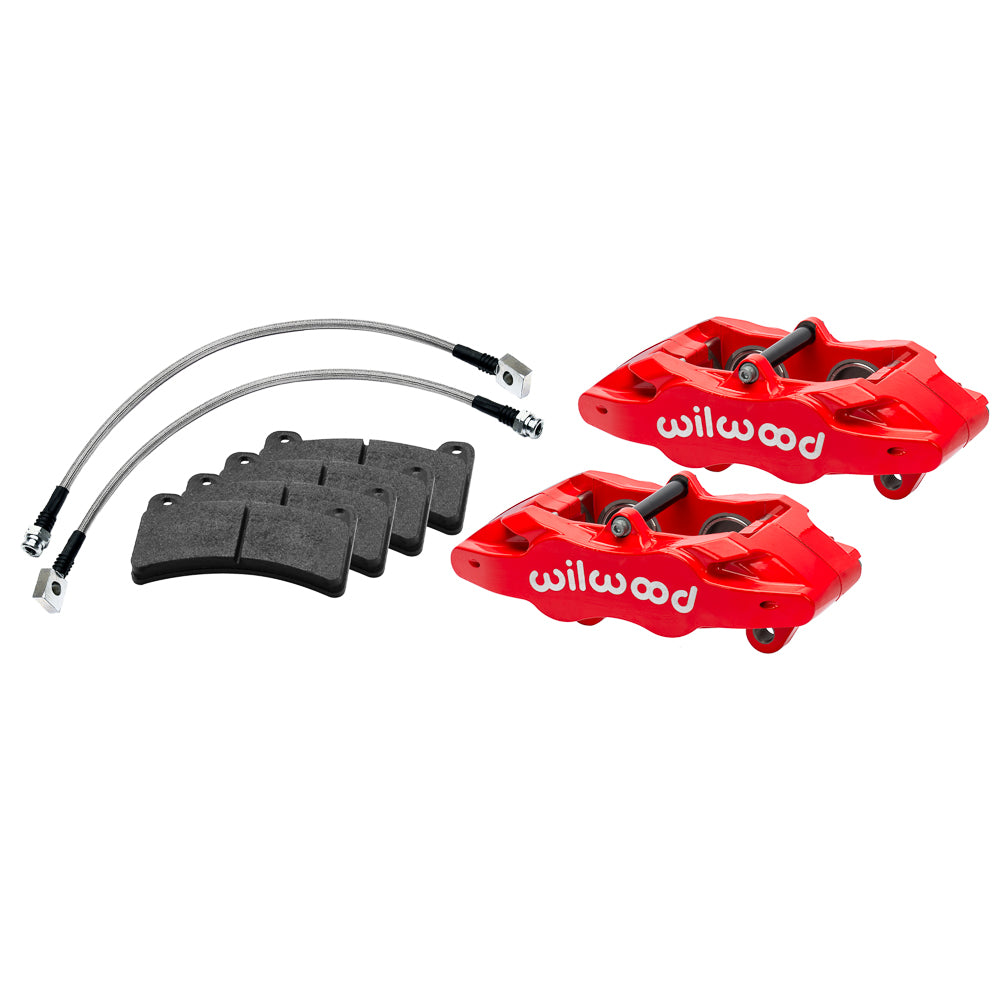

Red DPC56 four-piston rear calipers suit the Corvette C5 and Z06 brake layout. Rotors stay separate; verify their size and spoke clearance. This package replaces the calipers and pads while retaining the specified original-size rotor arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17666-R
• Application and supplied quantity: rear conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: DPC56; 4 pistons per caliper; Red Powder Coat
• Caliper attachment: Lug
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: M10 x 1.00
• Rotors: 12.00-inch rear rotor package retained; rotors are not included
• Wheel envelope: 17 in; the complete wheel-clearance drawing determines fit
• Hydraulic hose selection: Included; confirm correct routing and hard-line connection

Fitment & Compatibility

This rear conversion is for 1997–2004 Chevrolet Corvette C5, including the listed Z06 applications. Retain serviceable rotors of the specified factory diameter and thickness; this caliper kit does not supply replacement rotors. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
