Wilwood Black DPC56 Rear Caliper and Brake Pad Kit with Hoses for Chevrolet Corvette C5 and Z06 (1997–2004)

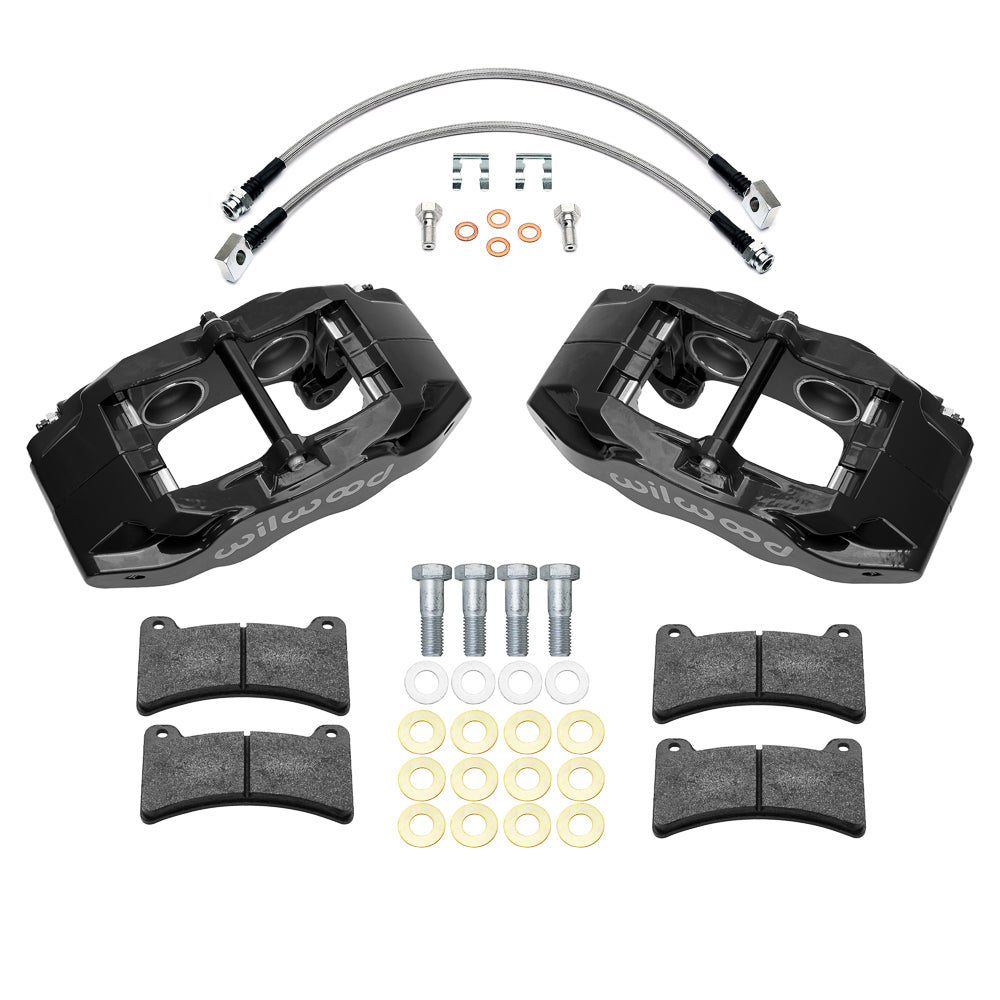

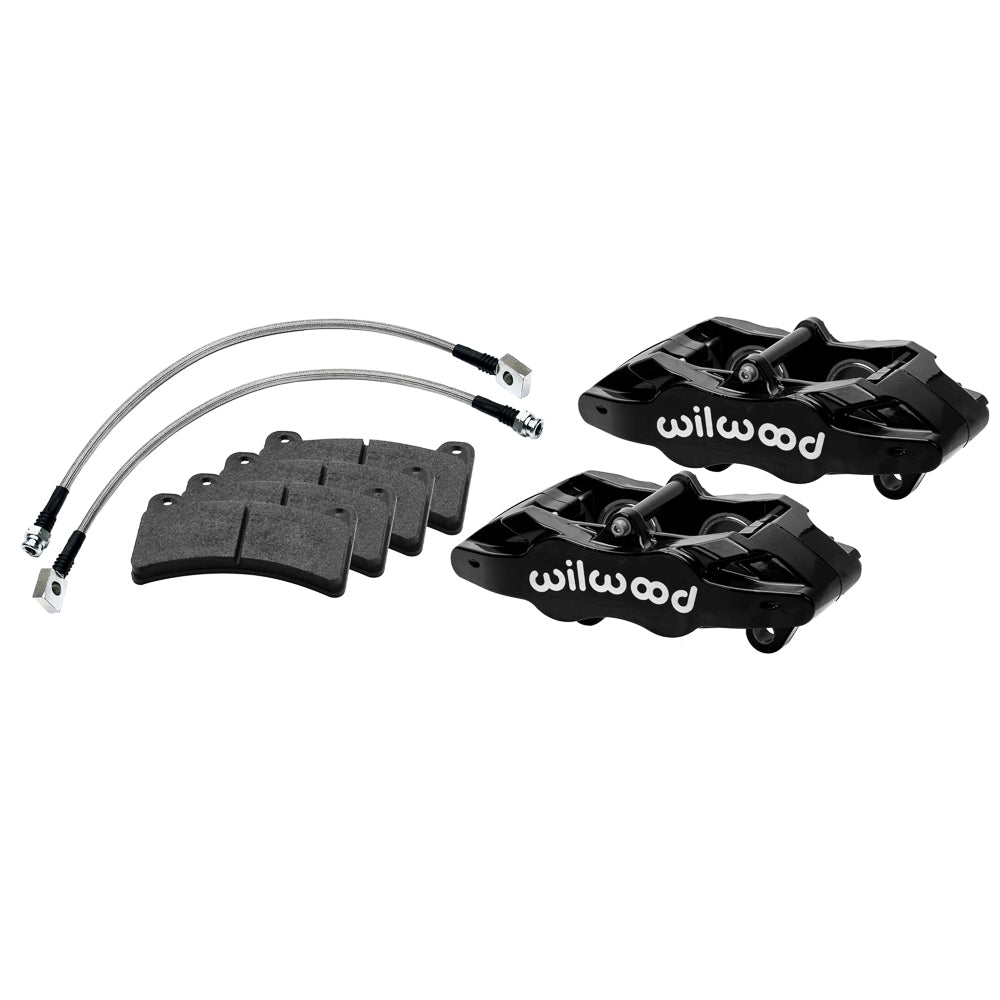

Renew Corvette C5 and Z06 rear calipers with black DPC56 units, BP-10 pads and flexlines. Check the retained 12-inch rotor arrangement and wheels. This package replaces the calipers and pads while retaining the specified original-size rotor arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

• Service-caliper port: M10 x 1.00
• Rotors: 12.00-inch rear rotor package retained; rotors are not included
• Wheel envelope: 17 in; the complete wheel-clearance drawing determines fit
• Hydraulic hose selection: Included; confirm correct routing and hard-line connection
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17666-BK
• Application and supplied quantity: rear conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: DPC56; 4 pistons per caliper; Black Powder Coat
• Caliper attachment: Lug
• Brake pads supplied: BP-10
• Piston type: Stainless

Fitment & Compatibility

This rear conversion is for 1997–2004 Chevrolet Corvette C5, including the listed Z06 applications. Retain serviceable rotors of the specified factory diameter and thickness; this caliper kit does not supply replacement rotors. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
