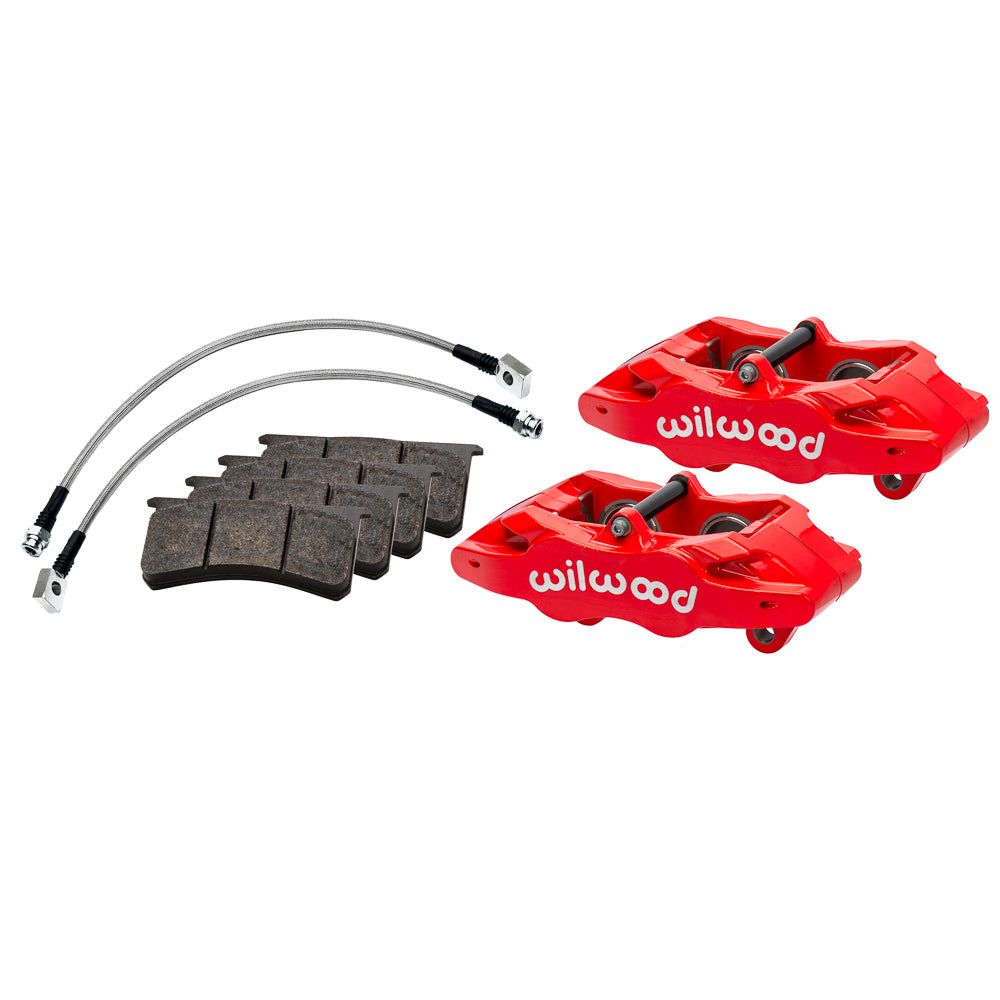

Wilwood Red SLC56 Front Brake Caliper Replacement Kit with Hoses for Chevrolet Corvette C5 and Z06 (1997–2004)

Retain the Corvette C5 and Z06 front rotor size while fitting red four-piston calipers and braided hoses. Compare the wheel envelope before ordering. This package replaces the calipers and pads while retaining the specified original-size rotor arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

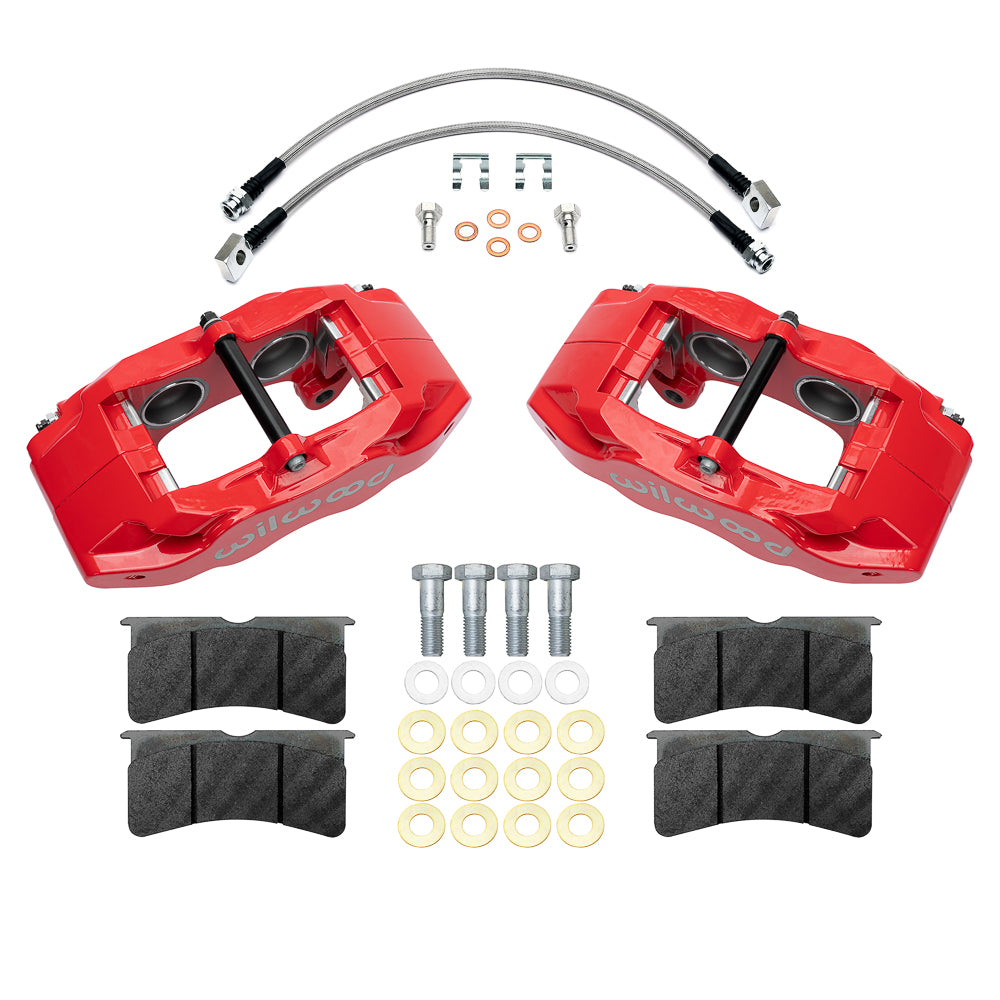

Technical Details

• Wheel-size reference: 17 in; the complete wheel-clearance drawing determines fit
• Hydraulic flexlines: Included; confirm correct routing and hard-line connection
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17665-R
• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: SLC56; 4 pistons per caliper; Red Powder Coat
• Caliper mounting: Lug
• Included pad compound: BP-10
• Piston material: Stainless
• Hydraulic caliper inlet: M10 x 1.00
• Rotors: 12.80-inch front rotor package retained; rotors are not included

Fitment & Compatibility

This front conversion is for 1997–2004 Chevrolet Corvette C5, including the listed Z06 applications. Retain serviceable rotors of the specified factory diameter and thickness; this caliper kit does not supply replacement rotors. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
