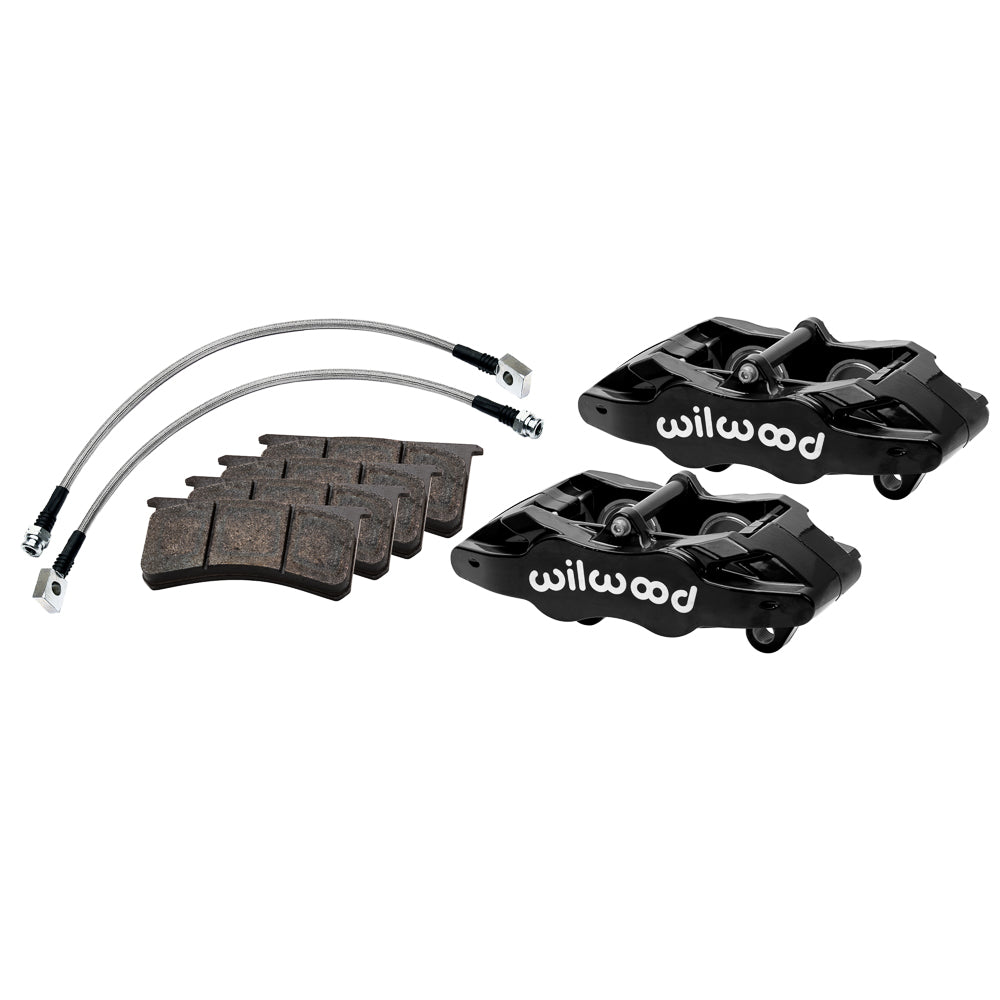

Wilwood Front SLC56 Caliper and Pad Kit with Flexlines, Black, Chevrolet Corvette C5 and Z06 (1997–2004)

Black SLC56 front calipers, pads and hoses replace the Corvette C5 and Z06 calipers. Retain suitable 12.80-inch rotors and verify wheel clearance. This package replaces the calipers and pads while retaining the specified original-size rotor arrangement. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977. Its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications; each part must suit the requirements of the complete braking system.

Technical Details

• Included pad compound: BP-10
• Piston material: Stainless
• Hydraulic caliper inlet: M10 x 1.00
• Rotors: 12.80-inch front rotor package retained; rotors are not included
• Wheel-size reference: 17 in; the complete wheel-clearance drawing determines fit
• Hydraulic flexlines: Included; confirm correct routing and hard-line connection
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17665-BK

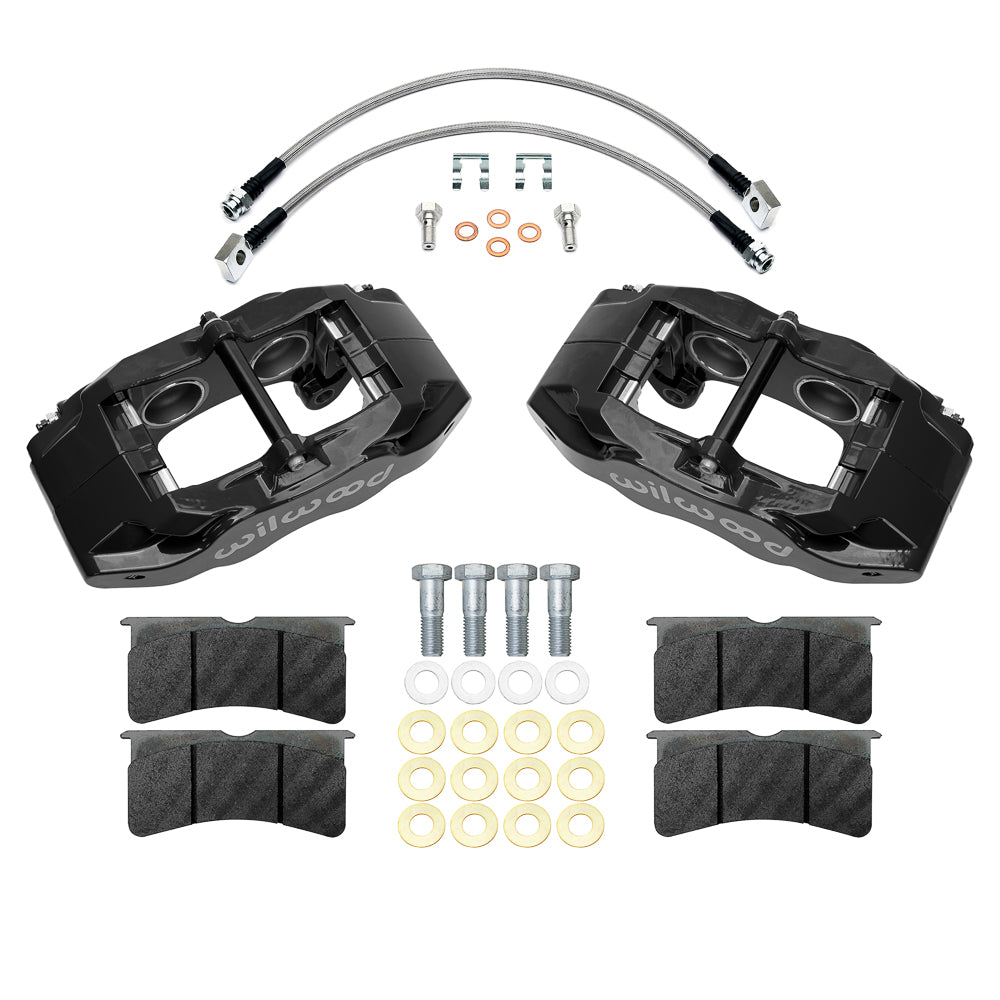

• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: SLC56; 4 pistons per caliper; Black Powder Coat
• Caliper mounting: Lug

Fitment & Compatibility

This front conversion is for 1997–2004 Chevrolet Corvette C5, including the listed Z06 applications. Retain serviceable rotors of the specified factory diameter and thickness; this caliper kit does not supply replacement rotors. Wilwood has checked these calipers with Z06 wheels; that wheel-clearance statement does not make a C6 Z06 brake package compatible. Other factory and aftermarket wheels require the drawing check, and some applications may need spacers. Route the supplied flexlines clear of steering, suspension and rotating parts. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
