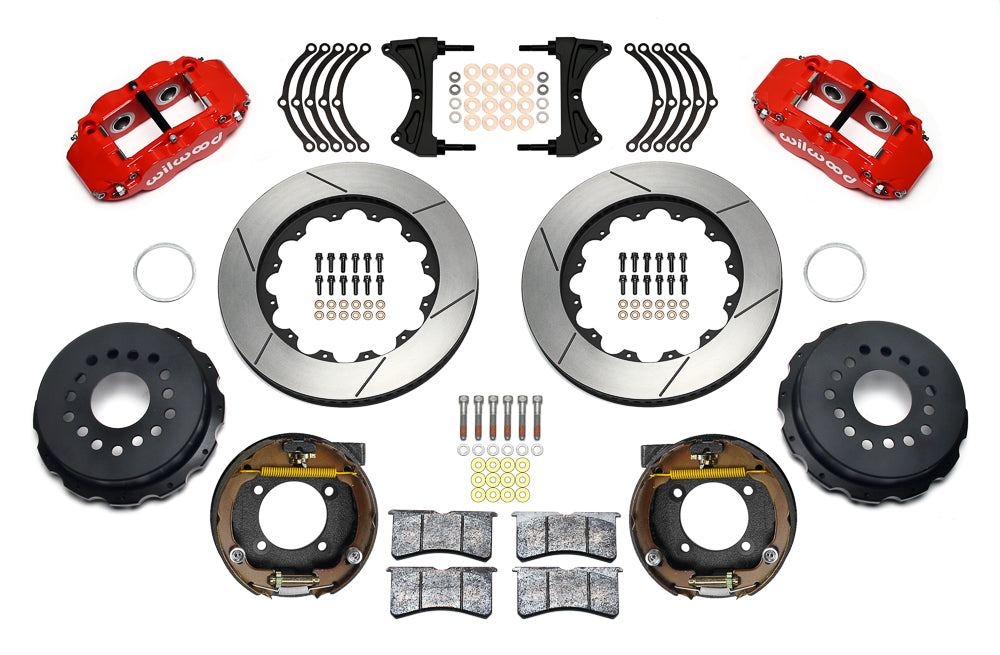

Wilwood GM G-Body 2.62-inch-offset rear brake kit with red Superlite 4R calipers and 14.00-inch slotted rotors, laid out with internal parking-shoe assemblies, hats, pads, brackets and hardware

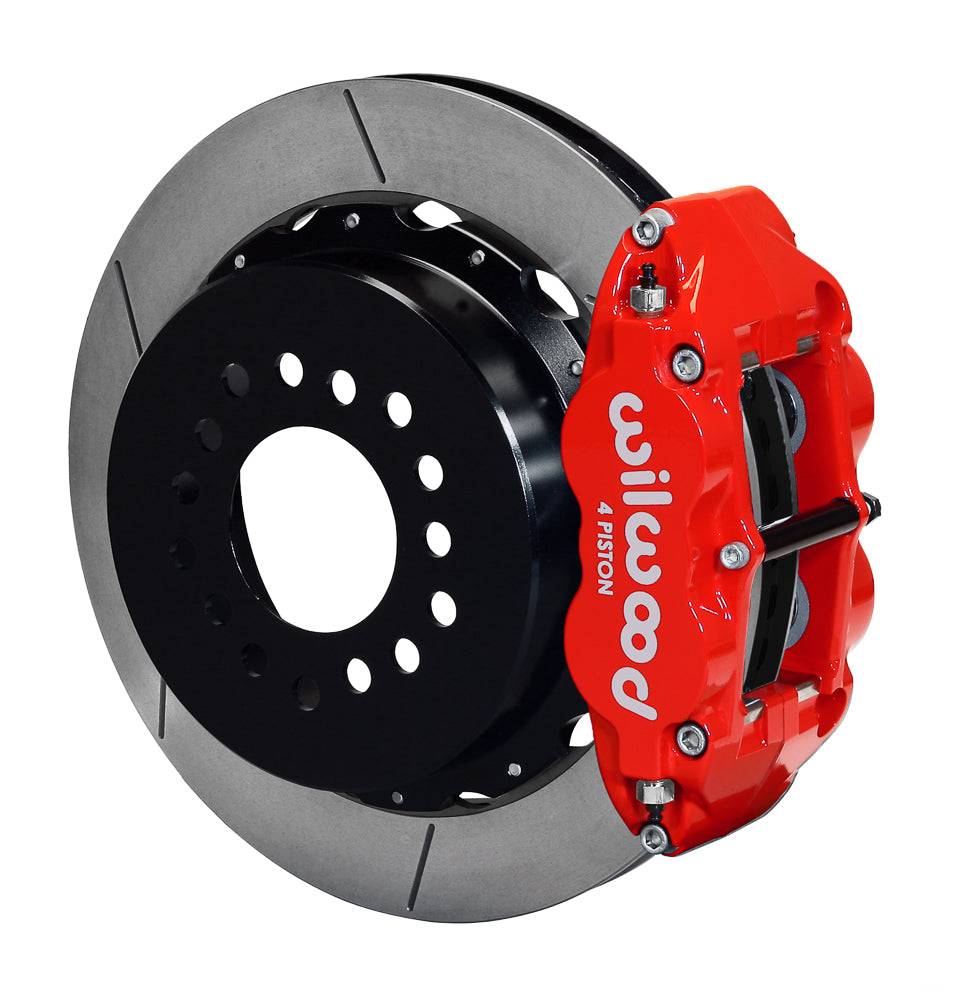

Wilwood red Superlite 4R rear caliper beside the assembled 14.00-inch slotted rotor and internal-parking-brake hat for GM G-Body 2.62-inch-offset
Wilwood GM G-Body 2.62-inch-offset rear brake kit with red Superlite 4R calipers and 14.00-inch slotted rotors, laid out with internal parking-shoe assemblies, hats, pads, brackets and hardware
Wilwood red Superlite 4R rear caliper beside the assembled 14.00-inch slotted rotor and internal-parking-brake hat for GM G-Body 2.62-inch-offset

Wilwood GM G-Body 2.62-Inch Offset Rear Brake Kit, Red Superlite Calipers, 14-Inch Slotted Rotors and Parking Brake

SKU: 140-17659-R

$2,494.08 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Fit rear hydraulic braking and internal parking shoes to a verified GM G-Body axle. This red-caliper GT package needs wheel and flange checks. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

  • Manufacturer identification: 140-17659-R
  • Application and supplied quantity: rear conversion kit; Sold as a kit.
  • Hydraulic service-caliper specification: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat
  • Caliper attachment: Radial
  • Brake pads supplied: BP-10
  • Piston type: Stainless
  • Service-caliper port: 1/8-27 NPT
  • Rotor assembly specification: 14.00 × 1.10 inches; Spec-37 Iron; GT Slotted
  • Wheel envelope: 18 in; the complete wheel-clearance drawing determines fit
  • Rear housing interface: G-Body; measured axle offset 2.62 in
  • Rotor hat bolt-circle specification: 5 x 4.50; 5 x 4.75; 5 x 5.00 inches; this does not change the retained hub or axle wheel pattern
  • Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
  • Hardware provision: Included; verify the installed fastener engagement
  • Not included: spindles, wheel hubs, master cylinder or brake booster
  • Parking system: Internal shoe parking brake; cable connection must be configured for the vehicle

Fitment & Compatibility

Select this rear conversion by the GM G-Body housing flange and measured 2.62-inch axle offset. Installation requires substantial housing-flange material removal and drilling two holes as shown in DS-1571; a qualified machine shop is recommended. Parking-brake cables and their connection hardware are separate. Check shock-mount interference, axle registration and clearance around the 14-inch rotors and calipers.

Wilwood product specifications · Wilwood installation and compatibility information · Axle measurement worksheet · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the actual housing flange, axle offset, rotor registration and parking or hydraulic arrangement. We have over 20 years of experience working through parts and fitment details.
