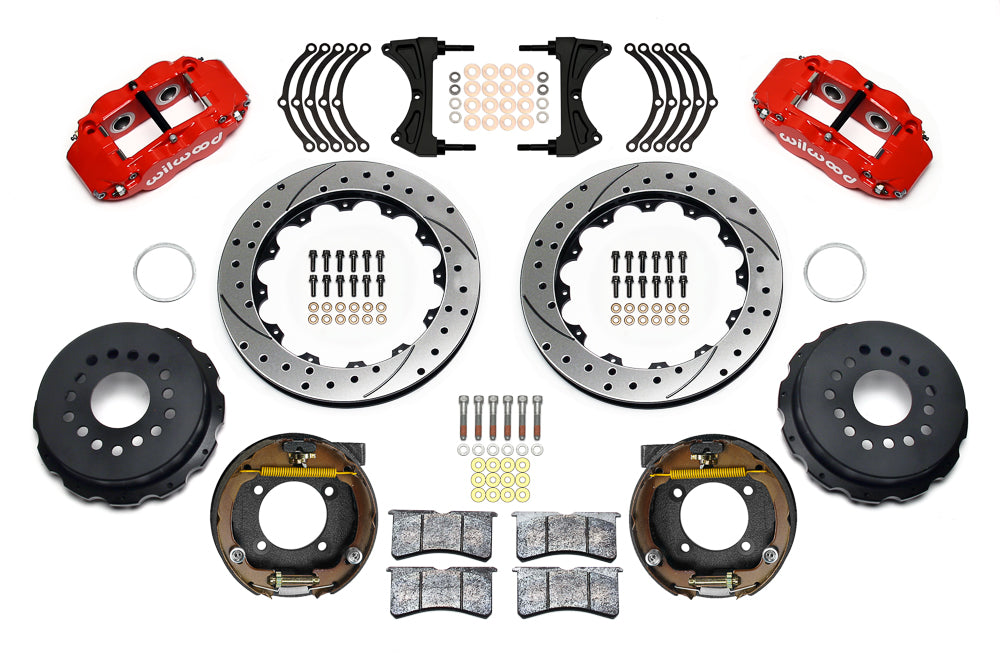

Wilwood GM G-Body 2.62-inch-offset rear brake kit with red Superlite 4R calipers and 14.00-inch drilled and slotted rotors, laid out with internal parking-shoe assemblies, hats, pads, brackets and hardware

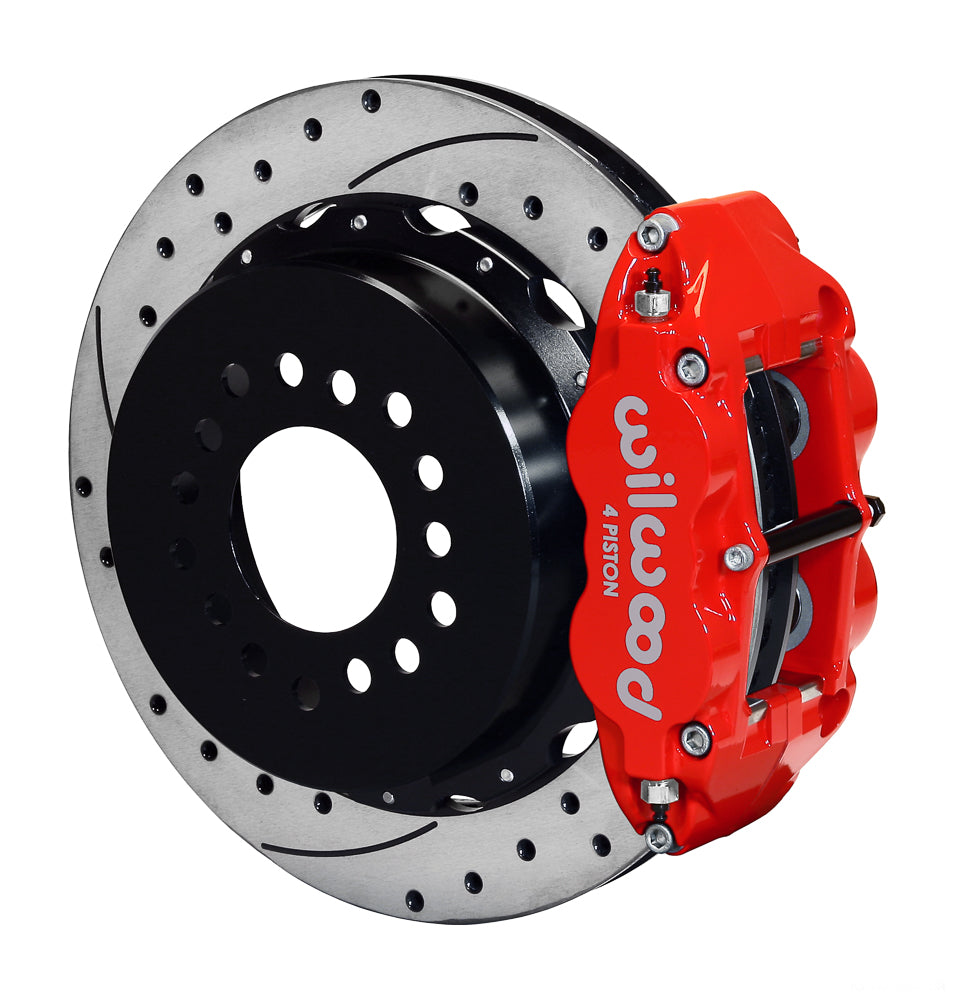

Wilwood red Superlite 4R rear caliper beside the assembled 14.00-inch drilled and slotted rotor and internal-parking-brake hat for GM G-Body 2.62-inch-offset
Wilwood GM G-Body 2.62-inch-offset rear brake kit with red Superlite 4R calipers and 14.00-inch drilled and slotted rotors, laid out with internal parking-shoe assemblies, hats, pads, brackets and hardware
Wilwood red Superlite 4R rear caliper beside the assembled 14.00-inch drilled and slotted rotor and internal-parking-brake hat for GM G-Body 2.62-inch-offset

Wilwood Red FNSL4R Rear Brake and Parking Shoe Kit for GM G-Body, 14-Inch Drilled Rotors and 2.62-Inch Offset

SKU: 140-17659-DR

$2,494.08 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red four-piston calipers clamp 14-inch SRP rear rotors on the measured G-Body flange. Plan the required housing work and parking cable connection. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

  • Piston material: Stainless
  • Hydraulic caliper inlet: 1/8-27 NPT
  • Rotor dimensions and construction: 14.00 × 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted
  • Wheel-size reference: 18 in; the complete wheel-clearance drawing determines fit
  • Axle mounting interface: G-Body; measured axle offset 2.62 in
  • Rotor / hat axle-flange drilling: 5 x 4.50; 5 x 4.75; 5 x 5.00 inches; this does not change the retained hub or axle wheel pattern
  • Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
  • Mounting hardware: Included; verify the installed fastener engagement
  • Not included: spindles, wheel hubs, master cylinder or brake booster
  • Parking system: Internal shoe parking brake; cable connection must be configured for the vehicle
  • Manufacturer part number: 140-17659-DR
  • Brake assembly: rear conversion kit; Sold as a kit.
  • Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat
  • Caliper mounting: Radial
  • Included pad compound: BP-10

Fitment & Compatibility

Select this rear conversion by the GM G-Body housing flange and measured 2.62-inch axle offset. Installation requires substantial housing-flange material removal and drilling two holes as shown in DS-1571; a qualified machine shop is recommended. Parking-brake cables and their connection hardware are separate. Check shock-mount interference, axle registration and clearance around the 14-inch rotors and calipers.

Wilwood product specifications · Wilwood installation and compatibility information · Axle measurement worksheet · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the actual housing flange, axle offset, rotor registration and parking or hydraulic arrangement for that review.
