Product details

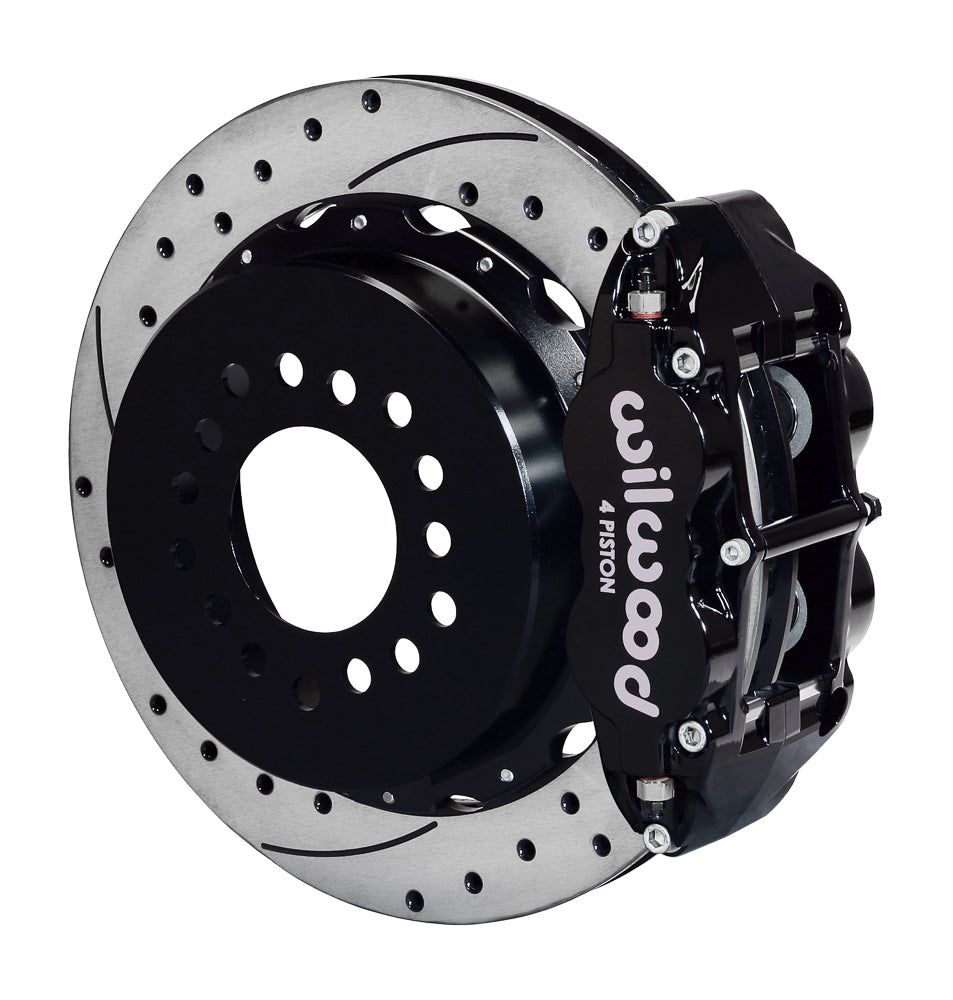

Drilled and slotted rear rotors pair with black Superlite calipers and internal parking shoes. Measure the G-Body axle offset before purchase. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977. Its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications; each part must suit the requirements of the complete braking system.
Technical Details
- Rotor hat bolt-circle specification: 5 x 4.50; 5 x 4.75; 5 x 5.00 inches; this does not change the retained hub or axle wheel pattern
- Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
- Hardware provision: Included; verify the installed fastener engagement
- Not included: spindles, wheel hubs, master cylinder or brake booster
- Parking system: Internal shoe parking brake; cable connection must be configured for the vehicle
- Manufacturer identification: 140-17659-D

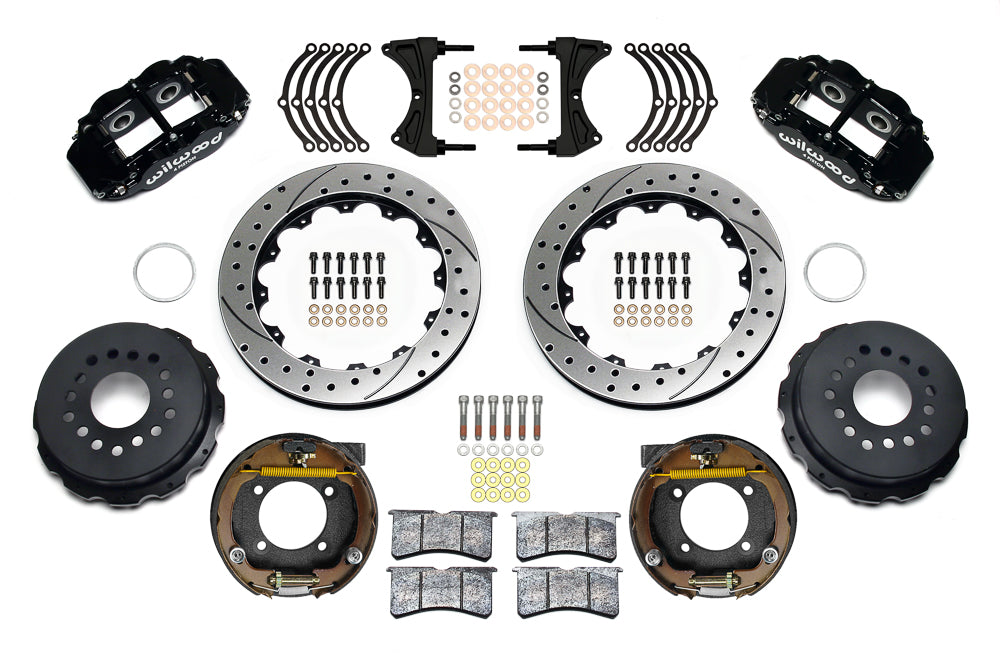

- Application and supplied quantity: rear conversion kit; Sold as a kit.
- Hydraulic service-caliper specification: Forged Narrow Superlite 4R; 4 pistons per caliper; Black Powder Coat
- Caliper attachment: Radial
- Brake pads supplied: BP-10
- Piston type: Stainless
- Service-caliper port: 1/8-27 NPT
- Rotor assembly specification: 14.00 × 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted
- Wheel envelope: 18 in; the complete wheel-clearance drawing determines fit
- Rear housing interface: G-Body; measured axle offset 2.62 in
Fitment & Compatibility
Select this rear conversion by the GM G-Body housing flange and measured 2.62-inch axle offset. Installation requires substantial housing-flange material removal and drilling two holes as shown in DS-1571; a qualified machine shop is recommended. Parking-brake cables and their connection hardware are separate. Check shock-mount interference, axle registration and clearance around the 14-inch rotors and calipers.
Wilwood product specifications · Wilwood installation and compatibility information · Axle measurement worksheet · Wilwood installation and compatibility information
Before purchase, send PMB Performance the actual housing flange, axle offset, rotor registration and parking or hydraulic arrangement. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
