Wilwood Front 15.00-Inch GT Rotor & Red Caliper Kit, Chevrolet Silverado HD / GMC Sierra HD / Suburban 3500 HD (2011–2019)

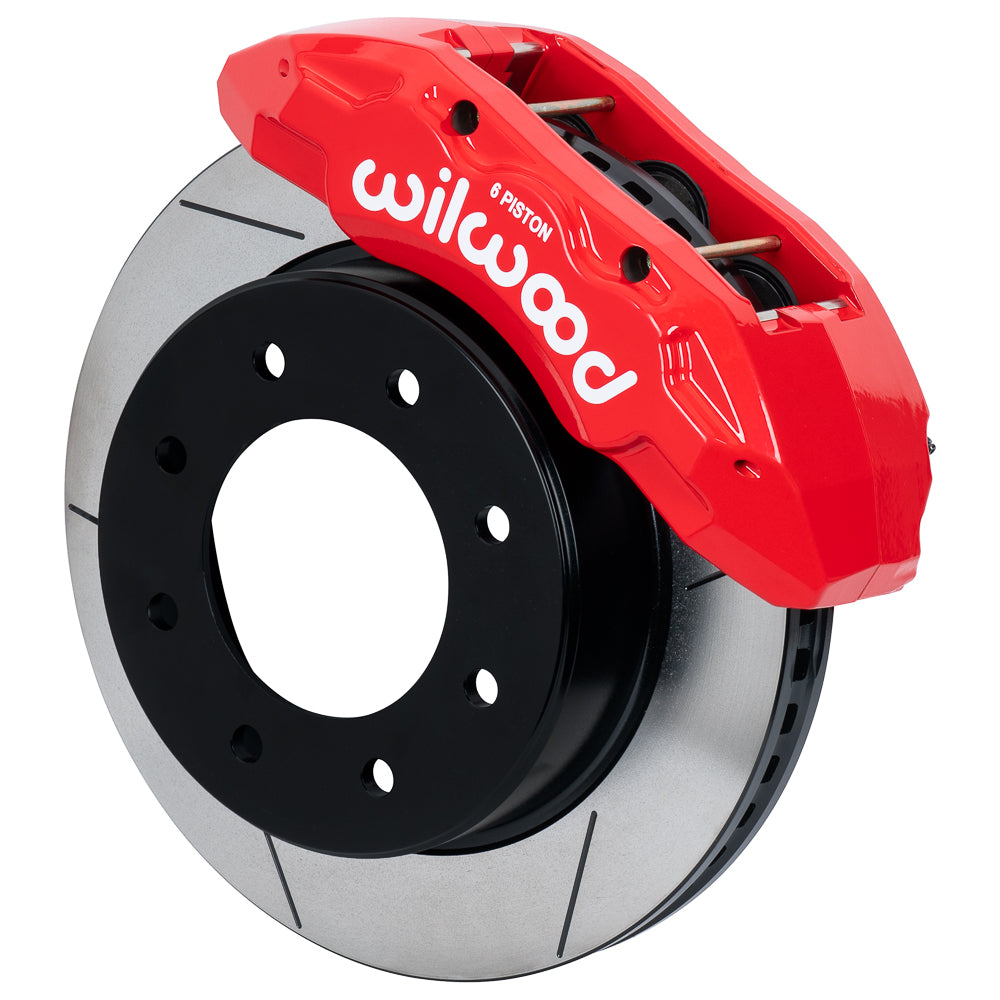

For Chevrolet Silverado HD / GMC Sierra HD / Suburban 3500 HD (2011–2019), this front TX6-DM kit uses red Wilwood calipers and gt slotted rotors. Its 6-piston hydraulic layout and 15.00-inch rotor diameter need to be checked against the actual hub, upright and wheel arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company makes disc-brake systems for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected around the demands of the complete braking installation.

Technical Details

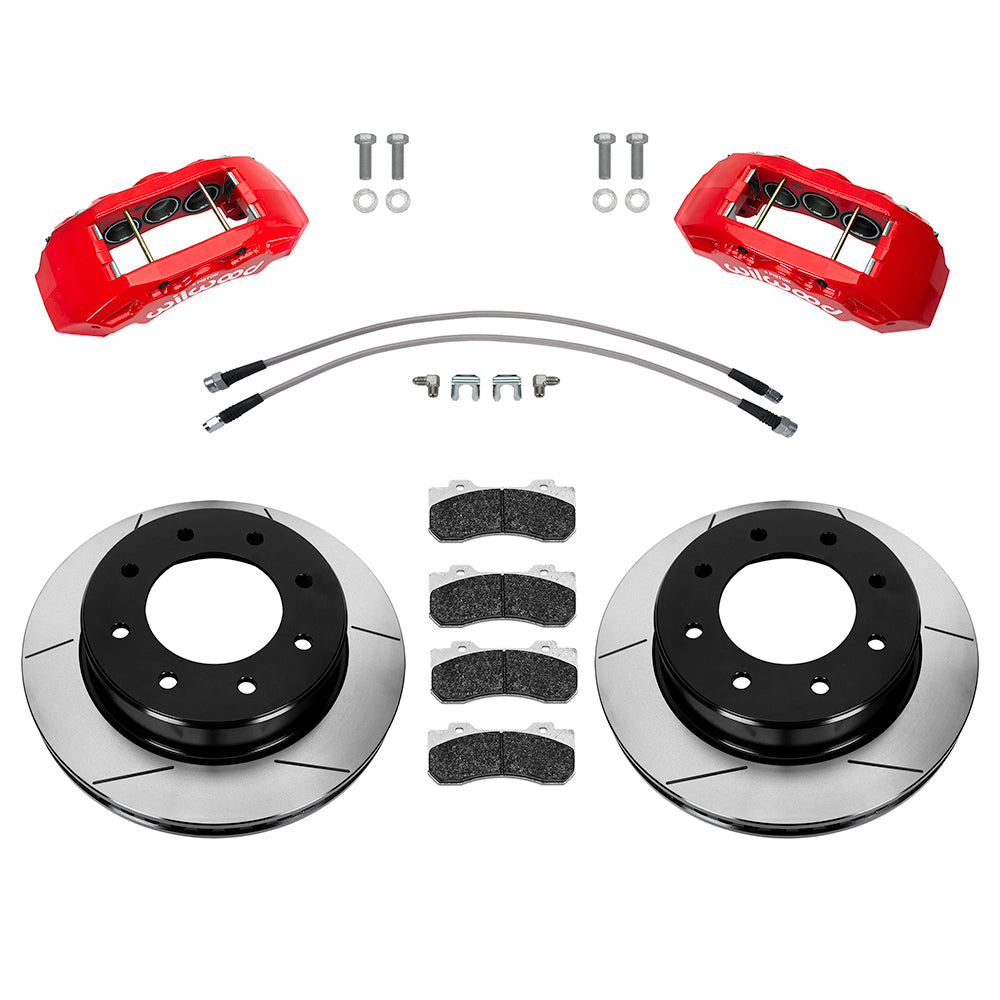

• Manufacturer part number: 140-17643-R; supplied as an axle kit.
• Rotor/hat mounting-hole pattern: 8 x 7.087 in; 8 x 180.01 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Wheel envelope: 20-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Brake rotor size: 15.00-inch outside diameter × 1.50-inch thickness; vented friction section.
• Service calipers: TX6-DM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Hydraulic sizing: cataloged bore sizes 2.00, 1.88, 1.88 inches; piston area 8.70 square inches; inlet 1/8-27 NPT.

Fitment & Compatibility

The table below includes Silverado and Sierra 2500/3500 HD trucks plus the specified 2016–2019 Chevrolet Suburban 3500 HD. Check the actual year, drive arrangement and single-rear-wheel qualification where listed. DS1585 documents the factory upright, eight-lug hub interface and included hoses for this generation. Confirm the rotor register and full 20-inch wheel drawing; this is not a general half-ton SUV kit.

Talk to PMB Performance about the installed brake arrangement if you need a fitment check. Over 20 years of parts experience informs our review of your VIN, photos and component dimensions.

Review Installation instructions for the complete installation and clearance requirements.
