Wilwood Front TX6-DM Brake Kit, Black, Chevrolet Silverado HD / GMC Sierra HD / Suburban 3500 HD (2011–2019)

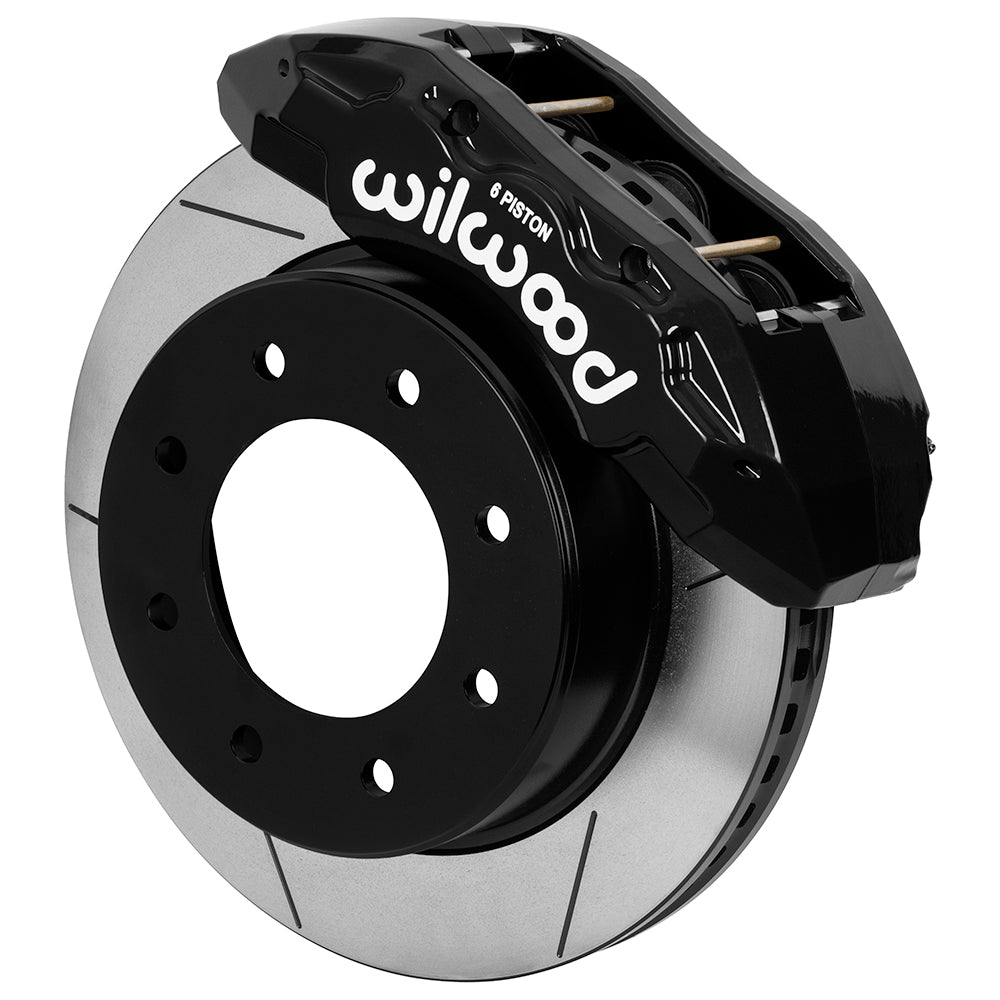

The 15.00 × 1.50-inch gt slotted rotors define this TX6-DM front brake package for Chevrolet Silverado HD / GMC Sierra HD / Suburban 3500 HD (2011–2019). Wilwood supplies black 6-piston calipers for the specified installation, with the rotor width and mounting hardware selected as a system. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc-brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support motorsport, street-performance and specialized uses, with each component chosen in relation to the complete brake system.

Technical Details

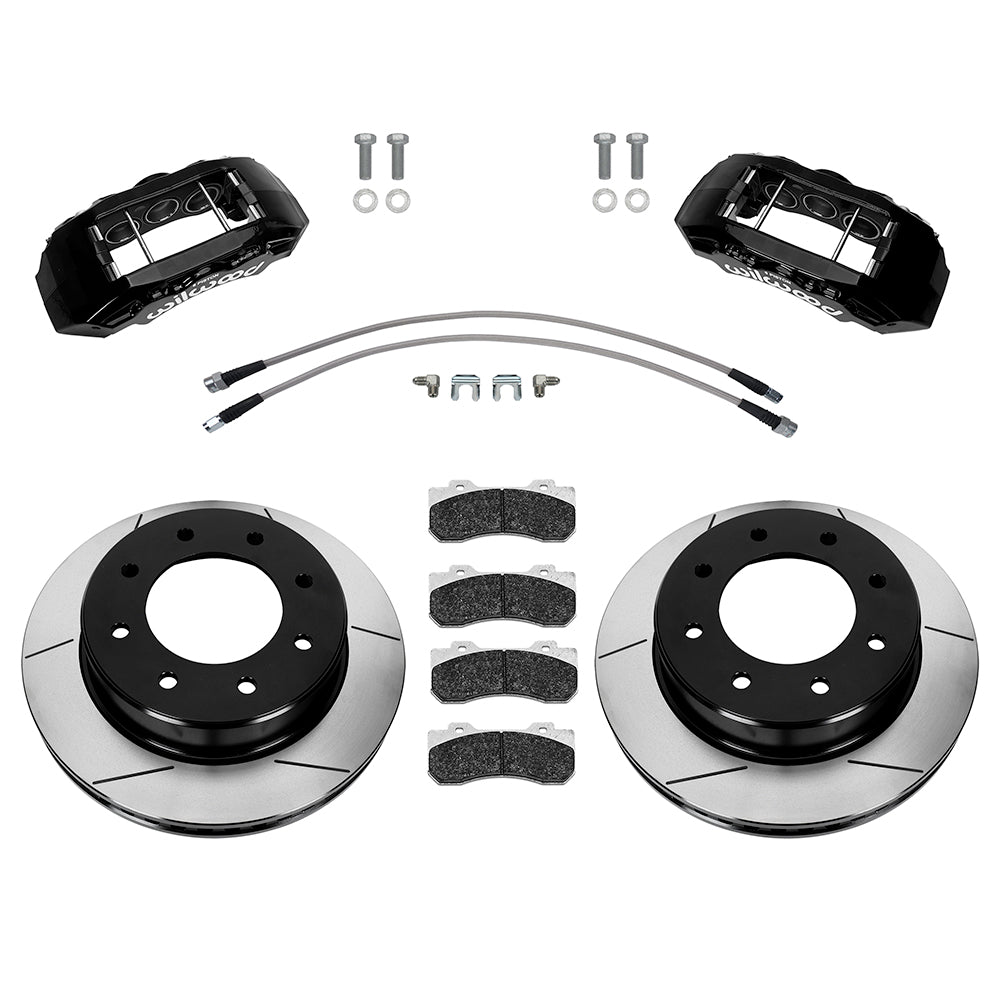

• Manufacturer part number: 140-17643; supplied as an axle kit.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Wheel envelope: 20-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Service calipers: TX6-DM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Brake rotor size: 15.00-inch outside diameter × 1.50-inch thickness; vented friction section.
• Rotor/hat mounting-hole pattern: 8 x 7.087 in; 8 x 180.01 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic sizing: cataloged bore sizes 2.00, 1.88, 1.88 inches; piston area 8.70 square inches; inlet 1/8-27 NPT.

Fitment & Compatibility

The table below includes Silverado and Sierra 2500/3500 HD trucks plus the specified 2016–2019 Chevrolet Suburban 3500 HD. Check the actual year, drive arrangement and single-rear-wheel qualification where listed. DS1585 documents the factory upright, eight-lug hub interface and included hoses for this generation. Confirm the rotor register and full 20-inch wheel drawing; this is not a general half-ton SUV kit.

PMB Performance has over 20 years of parts experience. Share the VIN and any changes to the axle, upright or wheels before ordering if the brake configuration is uncertain.

Review Installation instructions for the complete installation and clearance requirements.
