Wilwood Front Six-Piston GT Brake Conversion, Red, Ford F-250 / F-350 Super Duty 4WD (2005–2010)

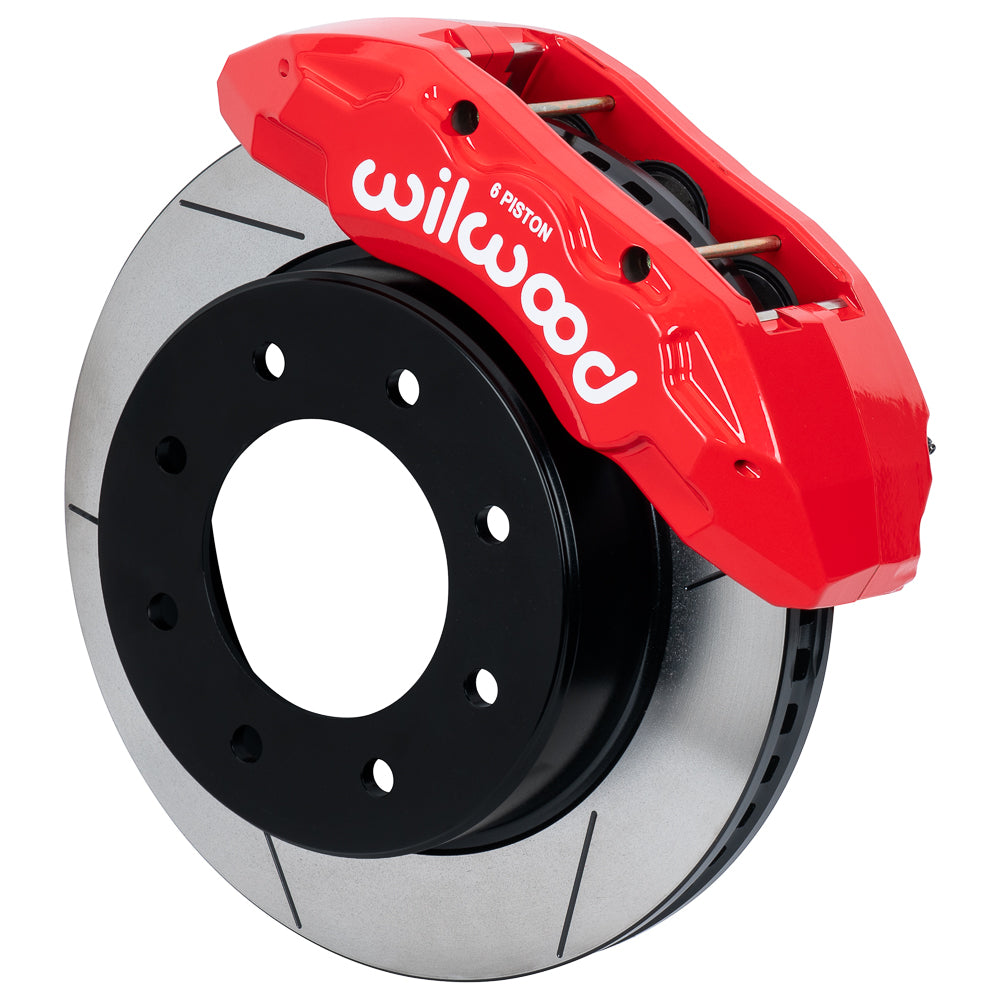

This Wilwood TX6-DM front brake kit pairs red 6-piston calipers with 15.00-inch gt slotted brake rotors for Ford F-250 / F-350 Super Duty 4WD (2005–2010). The package must match the documented mounting arrangement and wheel clearance before the original brakes are removed. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components serve motorsport, street-performance and specialized applications. The range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the requirements of the complete system.

Technical Details

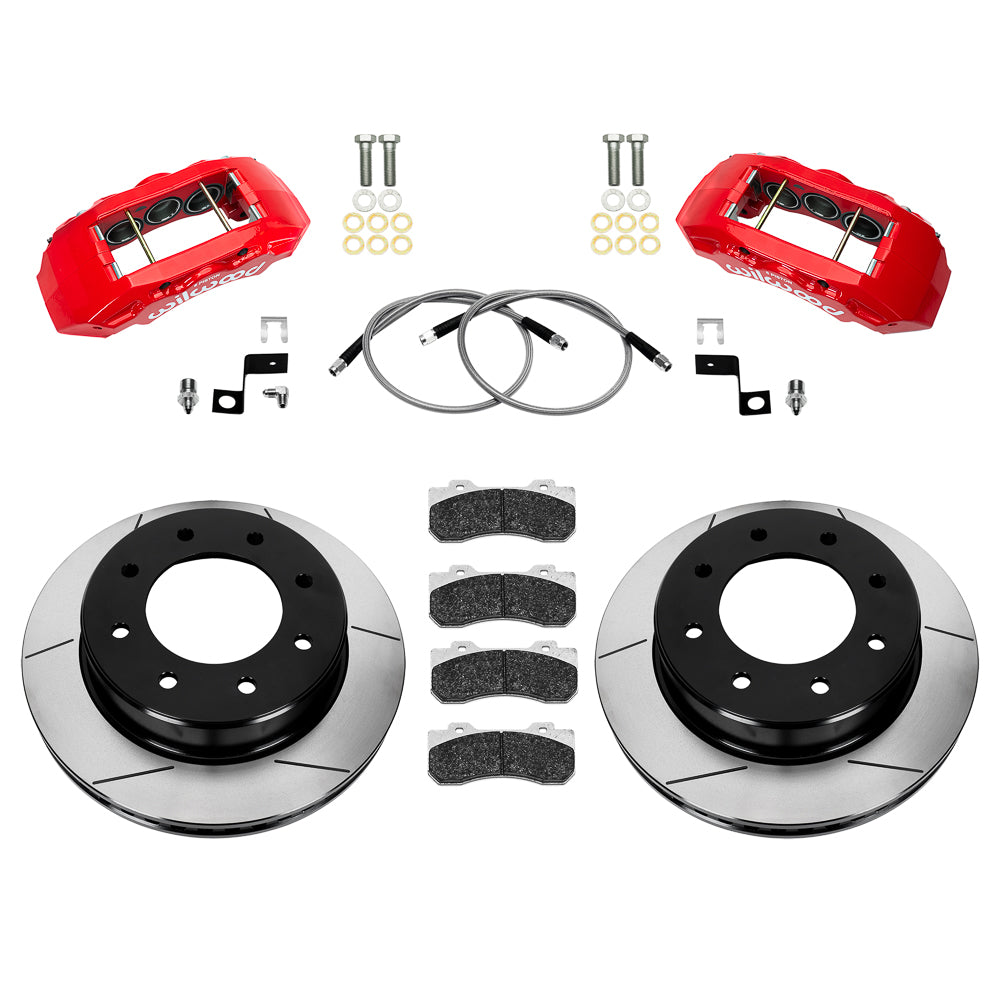

• Manufacturer part number: 140-17610-R; supplied as an axle kit.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Service calipers: TX6-DM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Wheel envelope: 20-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Hydraulic sizing: cataloged bore sizes 2.00, 1.88, 1.88 inches; piston area 8.70 square inches; inlet 1/8-27 NPT.
• Rotor/hat mounting-hole pattern: 8 x 6.693 in; 8 x 170 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Brake rotor size: 15.00-inch outside diameter × 1.50-inch thickness; vented friction section.

Fitment & Compatibility

This is the 2005–2010 front package in DS1582. The table below requires 4WD for F-250 Super Duty and 4WD/single rear wheels for F-350 Super Duty, with a 2008 F-250 production split noted. Match that row, the factory upright and 20-inch wheel envelope; do not infer fitment for 2WD or dual-rear-wheel configurations. Included 30-inch flexlines must be routed for full travel.

A VIN helps identify the original specification; measured hardware matters after a conversion. PMB Performance draws on more than 20 years of experience when reviewing those details.

Review Installation instructions for the complete installation and clearance requirements.
