Wilwood Front Black Six-Piston Calipers, 15.00-Inch GT Rotors & Lines, Ford F-250 / F-350 Super Duty 4WD (2005–2010)

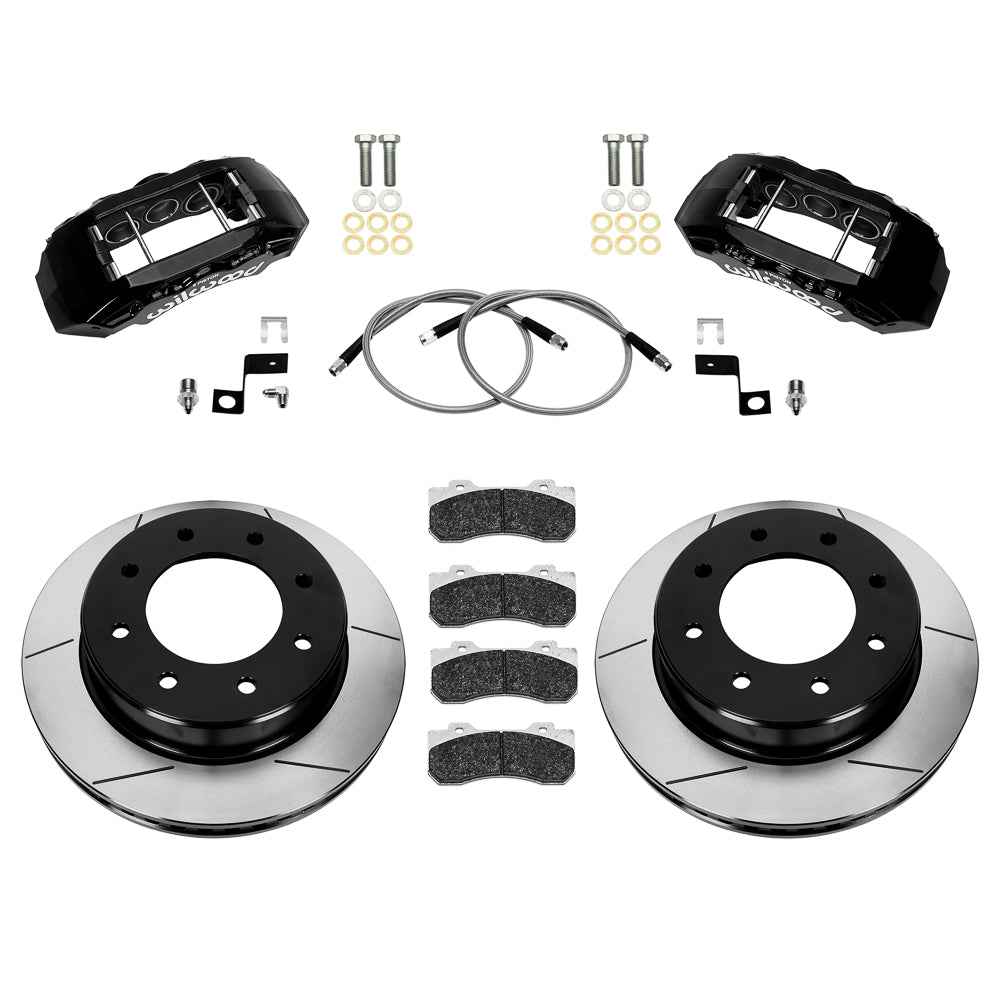

Ford F-250 / F-350 Super Duty 4WD (2005–2010) applications using the specified mounting arrangement can use this Wilwood TX6-DM front brake conversion. It combines black 6-piston calipers, pads and gt slotted 15.00-inch rotors, with the exact fitment qualifications set out below. Wilwood Engineering designs and manufactures disc-brake systems and components in Camarillo, California, where the company founded by Bill Wood in 1977 is based. Its range serves specialized applications, motorsport and street-performance vehicles, including calipers, brake rotors, master cylinders, valves, fittings and brake lines chosen to match a complete system.

Technical Details

• Manufacturer part number: 140-17610; supplied as an axle kit.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Brake rotor size: 15.00-inch outside diameter × 1.50-inch thickness; vented friction section.

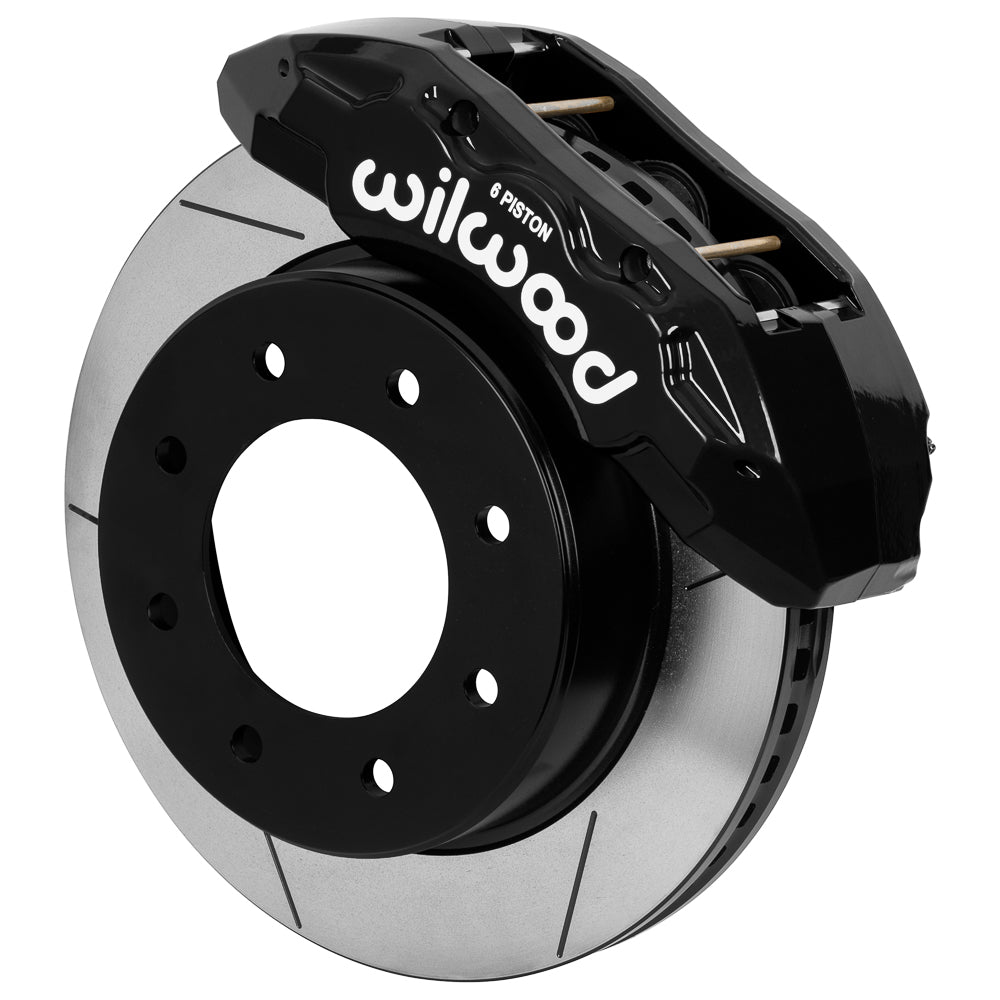

• Service calipers: TX6-DM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Rotor/hat mounting-hole pattern: 8 x 6.693 in; 8 x 170 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Wheel envelope: 20-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Hydraulic sizing: cataloged bore sizes 2.00, 1.88, 1.88 inches; piston area 8.70 square inches; inlet 1/8-27 NPT.

Fitment & Compatibility

This is the 2005–2010 front package in DS1582. The table below requires 4WD for F-250 Super Duty and 4WD/single rear wheels for F-350 Super Duty, with a 2008 F-250 production split noted. Match that row, the factory upright and 20-inch wheel envelope; do not infer fitment for 2WD or dual-rear-wheel configurations. Included 30-inch flexlines must be routed for full travel.

For help matching the brake hardware, contact PMB Performance with your VIN, photographs and measurements. Our team has over 20 years of experience with parts and fitment details.

Review Installation instructions for the complete installation and clearance requirements.
