Wilwood Front 15.00-Inch GT Rotor & Red TX6-DM Caliper Kit, Ford F-250 / F-350 Super Duty 4WD (2013–2022)

Convert the documented Ford F-250 / F-350 Super Duty 4WD (2013–2022) front brake arrangement with Wilwood TX6-DM calipers and gt slotted rotors. This selection has red calipers, 6 pistons per service caliper and 15.00-inch rotor diameter, with fit determined by the installed hardware. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Bill Wood founded the company in 1977. Motorsport, specialized applications and street-performance vehicles use its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines, with component selection matched to the finished brake system.

Technical Details

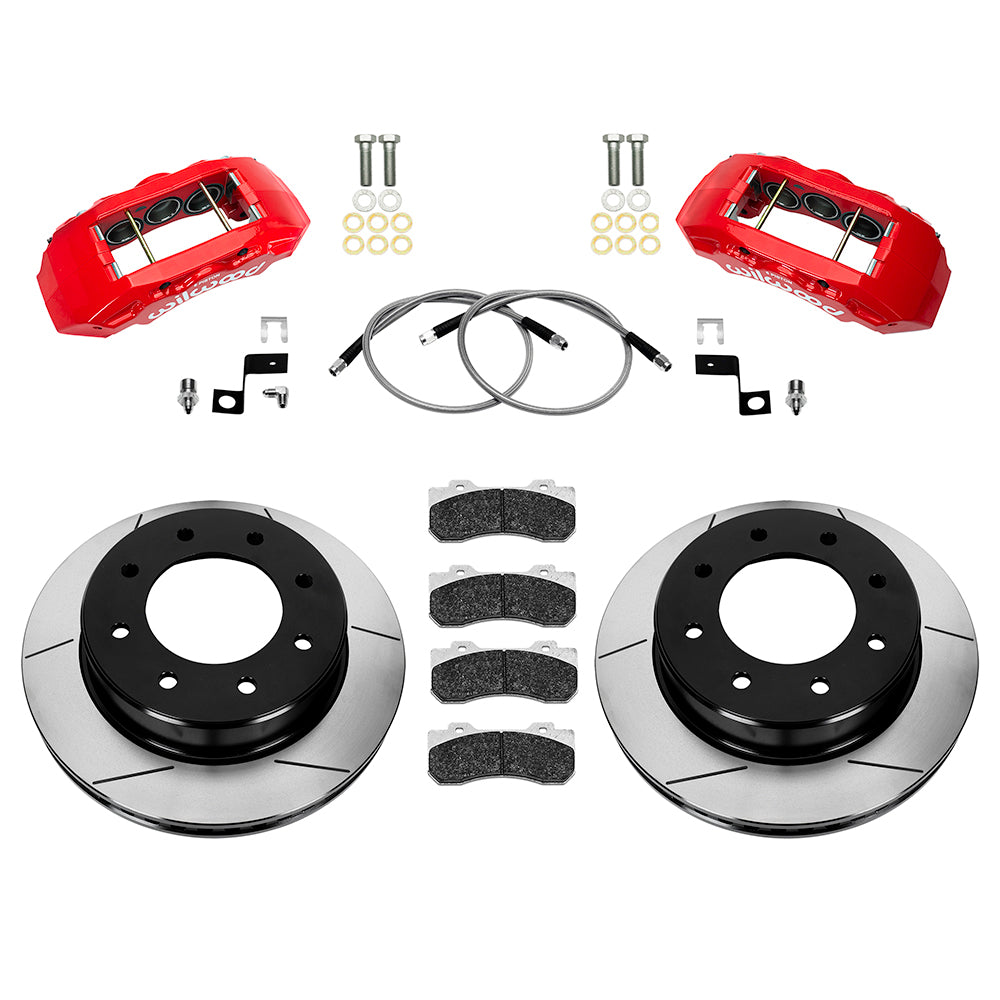

• Manufacturer part number: 140-17596-R; supplied as an axle kit.
• Wheel envelope: 20-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Brake rotor size: 15.00-inch outside diameter × 1.50-inch thickness; vented friction section.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Rotor/hat mounting-hole pattern: 8 x 6.693 in; 8 x 170 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic sizing: cataloged bore sizes 2.00, 1.88, 1.88 inches; piston area 8.70 square inches; inlet 1/8-27 NPT.

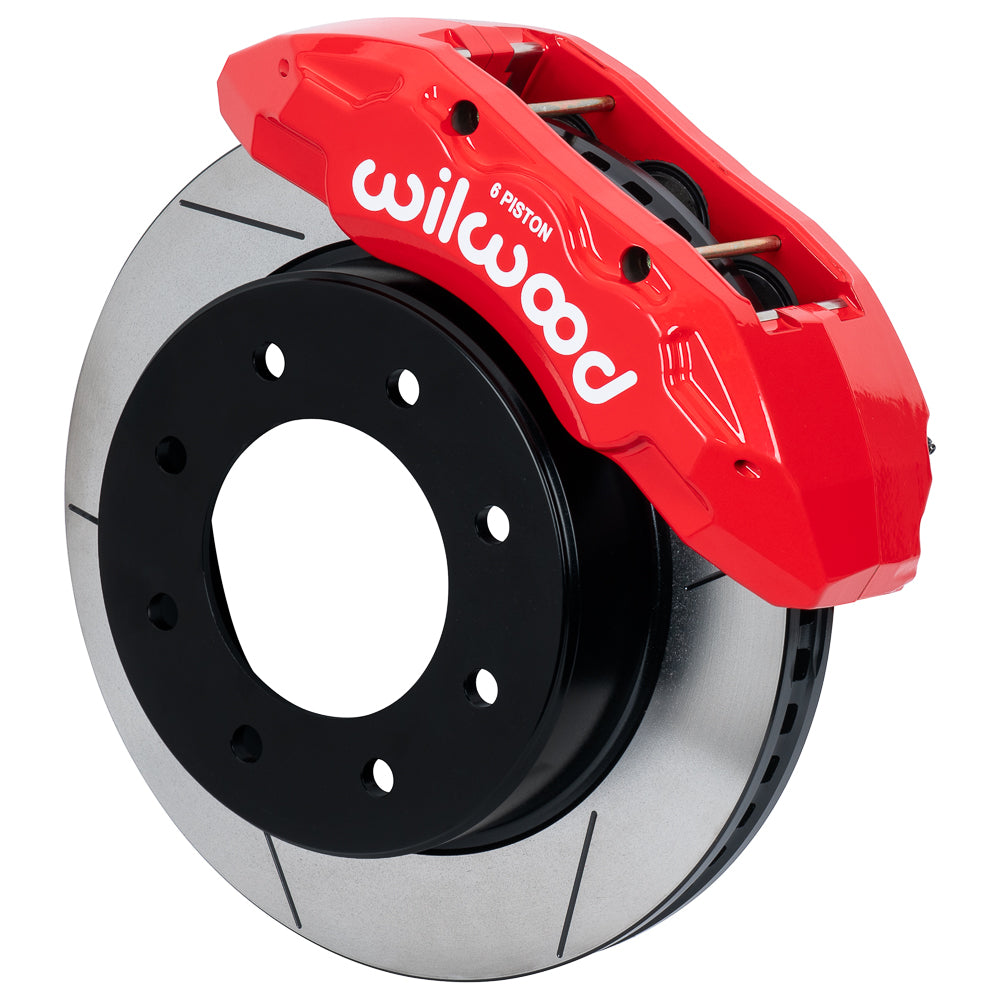

• Service calipers: TX6-DM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.

Fitment & Compatibility

DS1582 documents this 2013–2022 front package. The F-250 Super Duty rows below require 4WD; F-350 Super Duty applications require 4WD and single rear wheels. Confirm axle/upright and wheel configuration rather than ordering for all F-Series trucks. Retained hubs, 15 × 1.50-inch rotors and braided hoses must clear the full 20-inch wheel template and suspension travel. Use the fitment table below to check the complete application and option notes.

Send PMB Performance the VIN and the relevant brake measurements for help with selection. We have over 20 years of experience working through parts and compatibility details.

Review Installation instructions for the complete installation and clearance requirements.
