Wilwood Front TX6-DM Brake Kit for Ford F-250 / F-350 Super Duty 4WD (2013–2022), Black, 15.00-Inch GT Rotors

Black TX6-DM calipers provide the hydraulic service braking in this Wilwood front conversion for Ford F-250 / F-350 Super Duty 4WD (2013–2022). They work with 15.00 × 1.50-inch gt slotted rotors; the vehicle designation must be considered together with the mounting details below. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. Its work covers the design and manufacture of disc-brake systems and components for specialized vehicles, motorsport and street-performance use. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines; compatibility depends on the complete system.

Technical Details

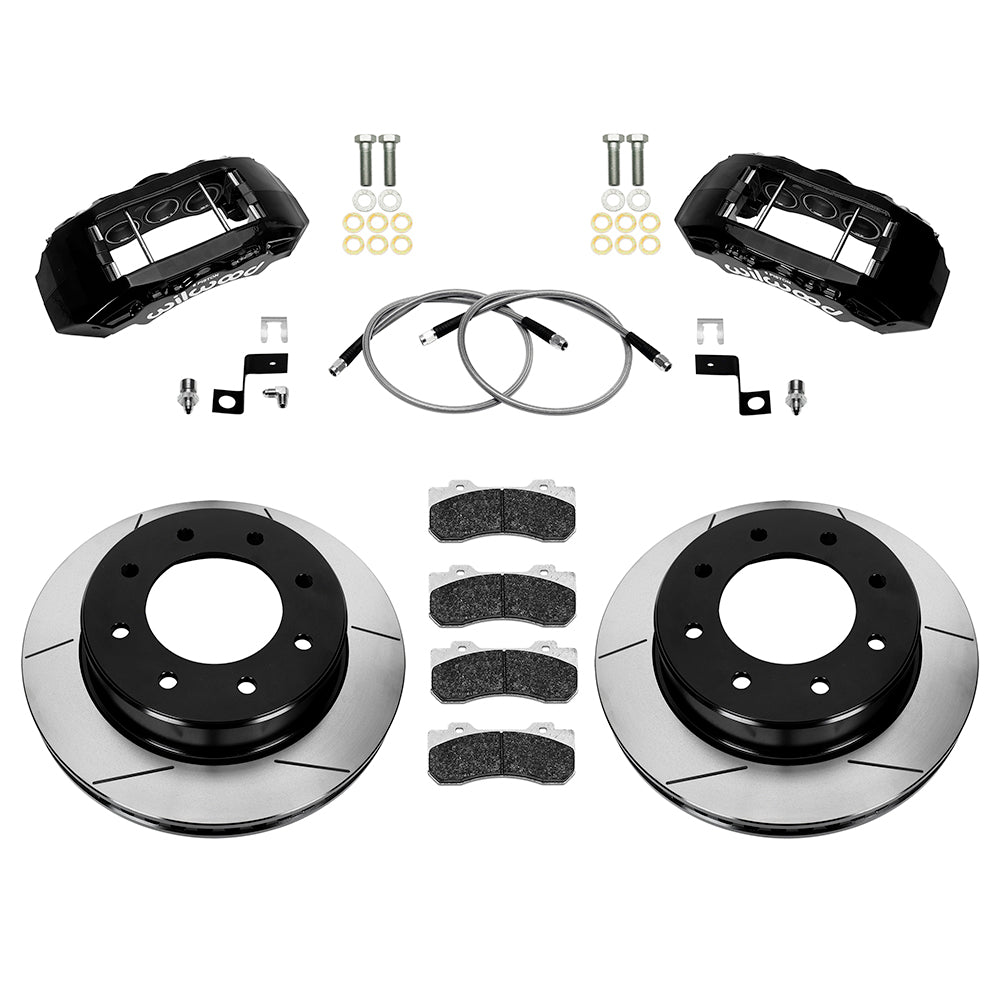

• Manufacturer part number: 140-17596; supplied as an axle kit.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Hydraulic sizing: cataloged bore sizes 2.00, 1.88, 1.88 inches; piston area 8.70 square inches; inlet 1/8-27 NPT.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Wheel envelope: 20-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Rotor/hat mounting-hole pattern: 8 x 6.693 in; 8 x 170 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Brake rotor size: 15.00-inch outside diameter × 1.50-inch thickness; vented friction section.

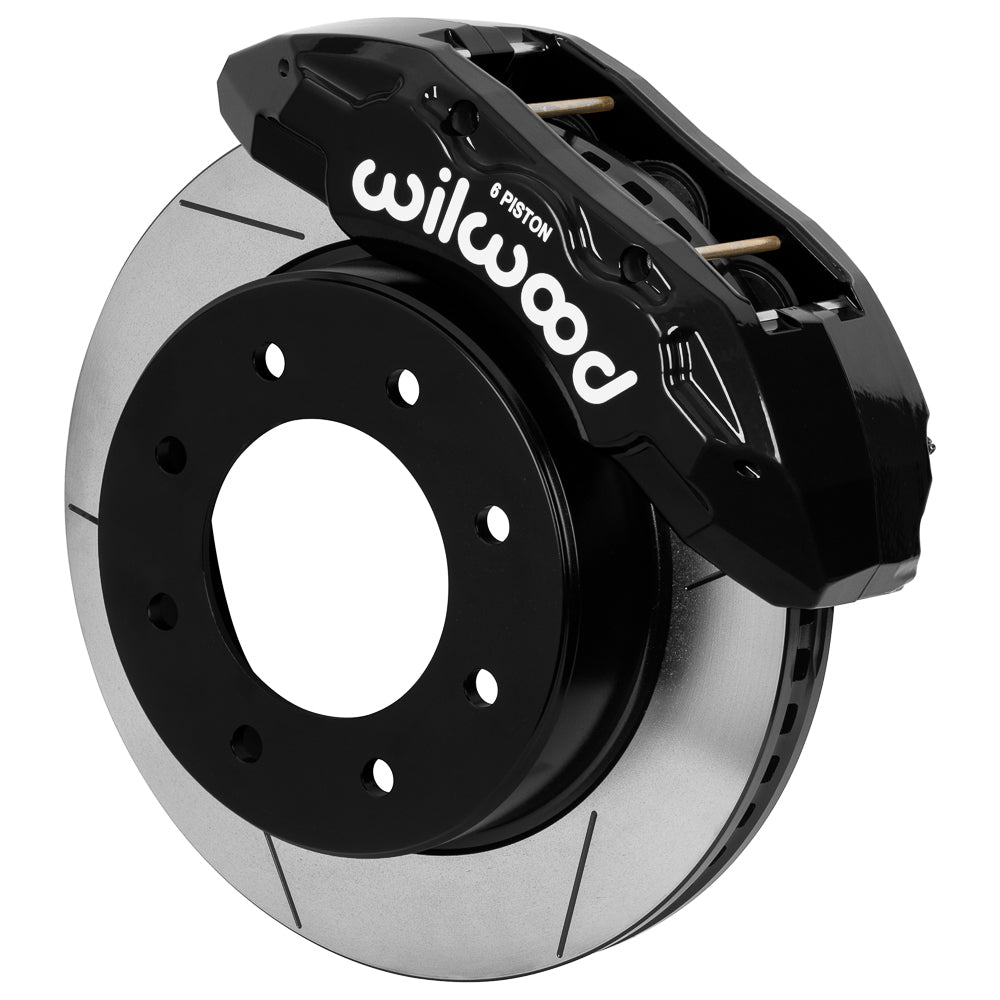

• Service calipers: TX6-DM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.

Fitment & Compatibility

DS1582 documents this 2013–2022 front package. The F-250 Super Duty rows below require 4WD; F-350 Super Duty applications require 4WD and single rear wheels. Confirm axle/upright and wheel configuration rather than ordering for all F-Series trucks. Retained hubs, 15 × 1.50-inch rotors and braided hoses must clear the full 20-inch wheel template and suspension travel. Use the fitment table below to check the complete application and option notes.

With more than 20 years of parts experience, PMB Performance can help compare your VIN and installed hardware with the required configuration. Include any suspension, wheel or axle changes.

Review Installation instructions for the complete installation and clearance requirements.
