Wilwood Front AERO6-DM Conversion with Red Calipers & SRP Rotors for Ford Ranger (2019–2025)

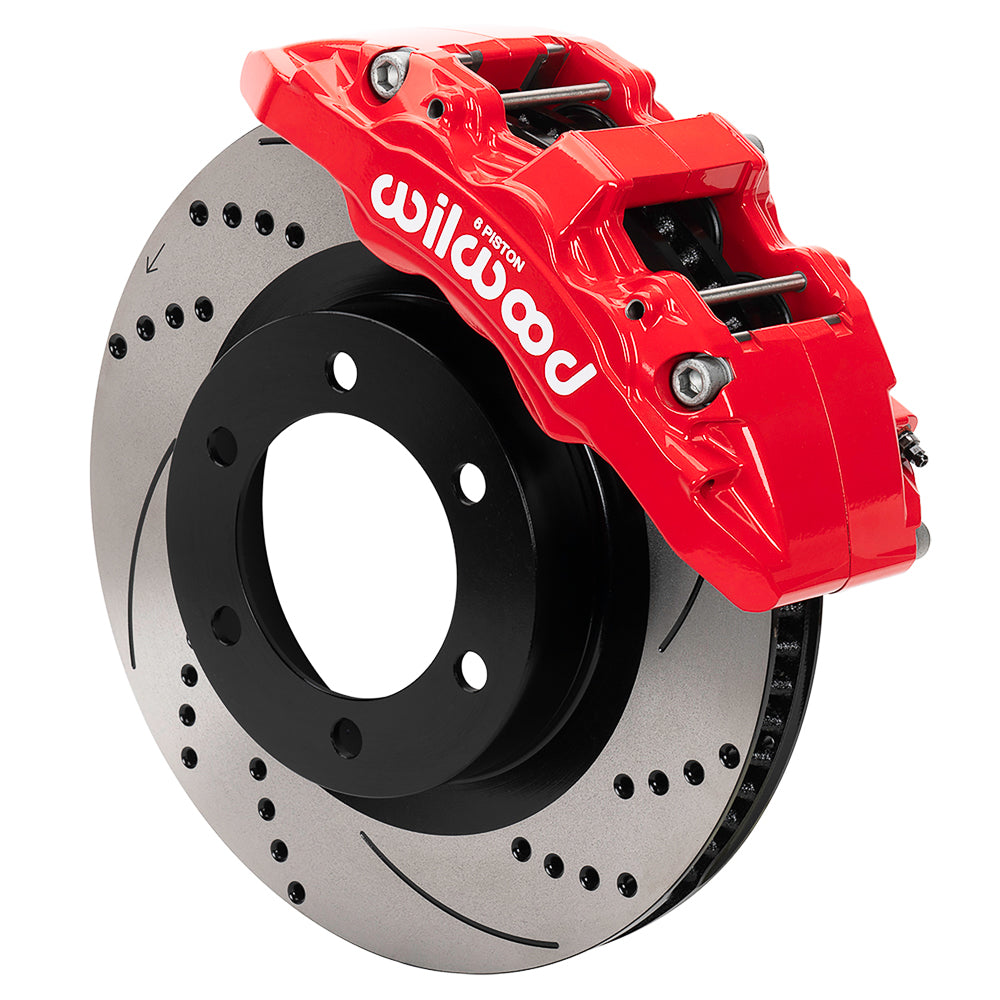

The 13.38 × 1.25-inch srp drilled & slotted rotors define this AERO6-DM front brake package for Ford Ranger (2019–2025). Wilwood supplies red 6-piston calipers for the specified installation, with the rotor width and mounting hardware selected as a system. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc-brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support motorsport, street-performance and specialized uses, with each component chosen in relation to the complete brake system.

Technical Details

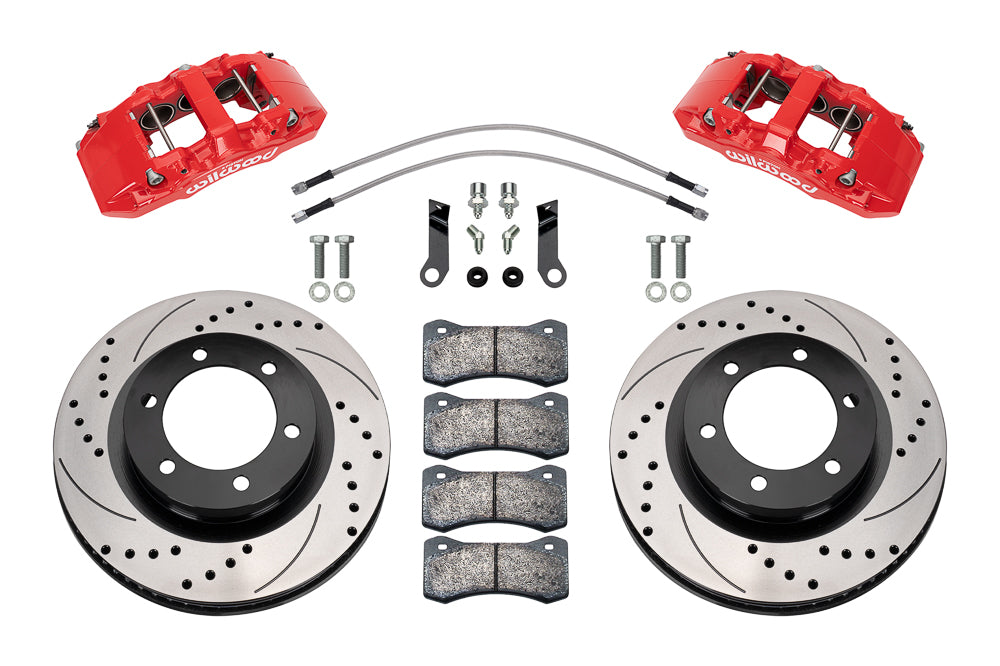

• Manufacturer part number: 140-17557-DR; supplied as an axle kit.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Brake rotor size: 13.38-inch outside diameter × 1.25-inch thickness; vented friction section.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.52 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.

Fitment & Compatibility

The current compatibility chart lists 2019–2025 Ford Ranger Lariat, XL and XLT, as shown below; DS1565 details the 2019–2022 installation. For later production, compare the installed factory upright, hub and hose route to that drawing before assembly. These six-piston calipers and one-piece 13.38-inch rotors require the full 17-inch wheel-envelope check. Use the fitment table below to check the complete application and option notes.

PMB Performance has over 20 years of parts experience. Share the VIN and any changes to the axle, upright or wheels before ordering if the brake configuration is uncertain.

Review Installation instructions for the complete installation and clearance requirements.
