Wilwood Front AERO6-DM Brake Kit for Ford Ranger (2019–2025), Black, 13.38-Inch GT Rotors & Hoses

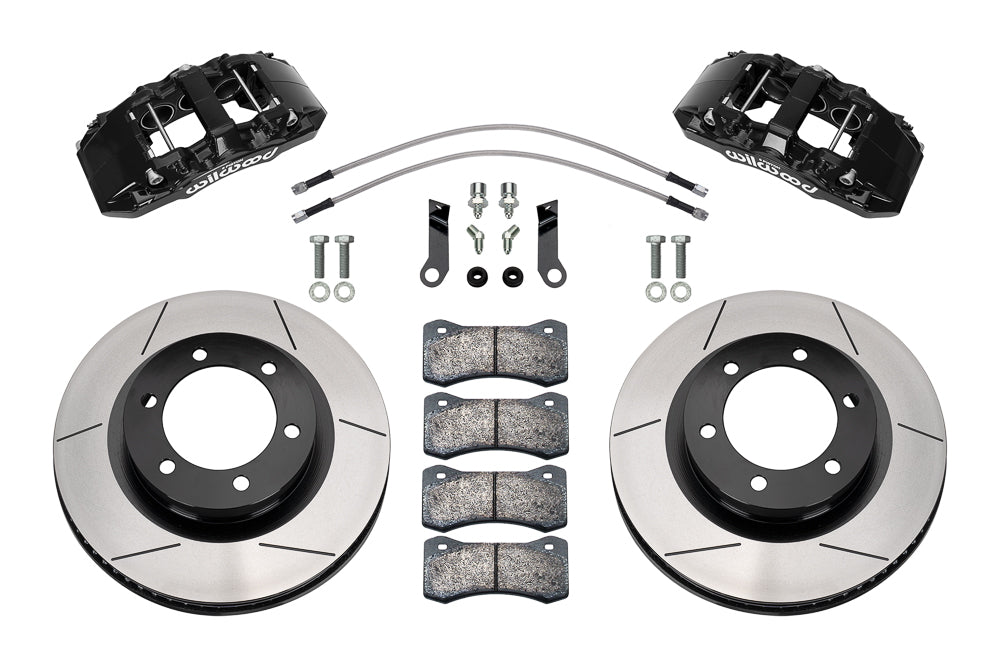

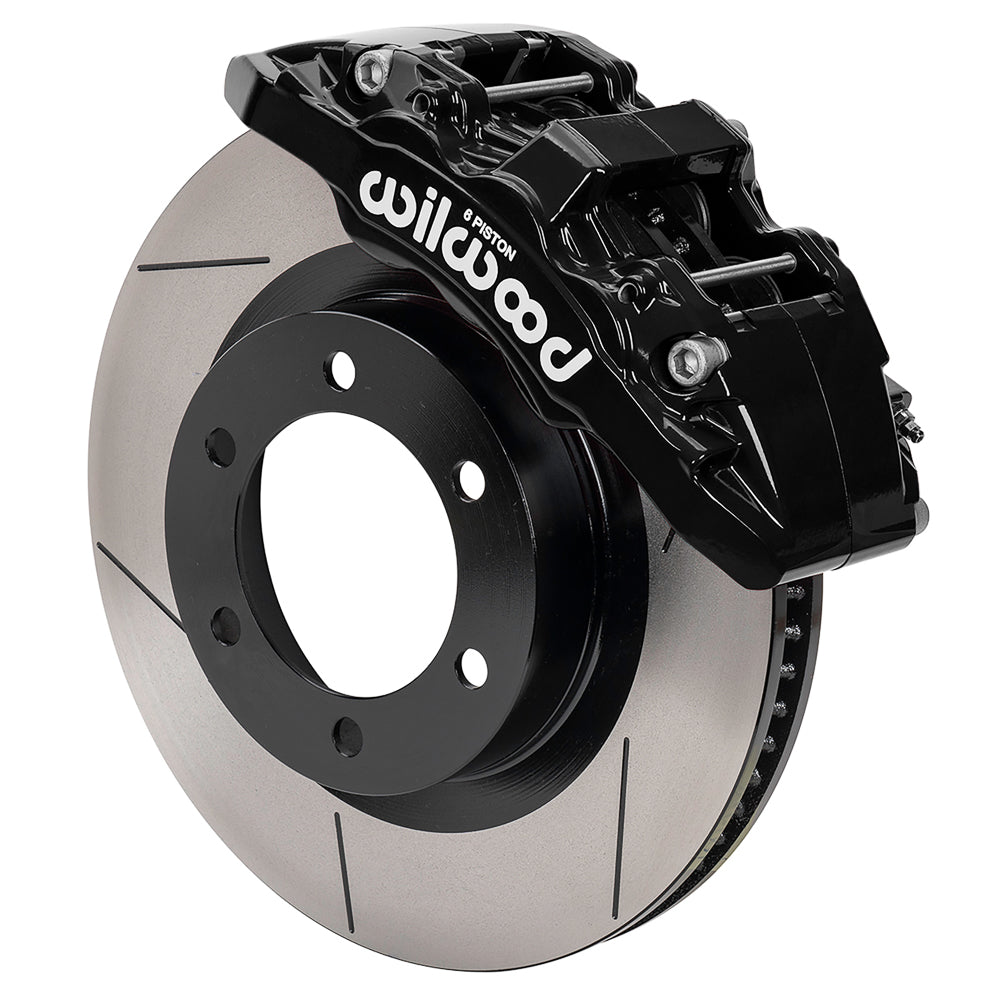

Ford Ranger (2019–2025) applications using the specified mounting arrangement can use this Wilwood AERO6-DM front brake conversion. It combines black 6-piston calipers, pads and gt slotted 13.38-inch rotors, with the exact fitment qualifications set out below. Wilwood Engineering designs and manufactures disc-brake systems and components in Camarillo, California, where the company founded by Bill Wood in 1977 is based. Its range serves specialized applications, motorsport and street-performance vehicles, including calipers, brake rotors, master cylinders, valves, fittings and brake lines chosen to match a complete system.

Technical Details

• Manufacturer part number: 140-17557; supplied as an axle kit.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.52 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Brake rotor size: 13.38-inch outside diameter × 1.25-inch thickness; vented friction section.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.

Fitment & Compatibility

The current compatibility chart lists 2019–2025 Ford Ranger Lariat, XL and XLT, as shown below; DS1565 details the 2019–2022 installation. For later production, compare the installed factory upright, hub and hose route to that drawing before assembly. These six-piston calipers and one-piece 13.38-inch rotors require the full 17-inch wheel-envelope check. Use the fitment table below to check the complete application and option notes.

For help matching the brake hardware, contact PMB Performance with your VIN, photographs and measurements. Our team has over 20 years of experience with parts and fitment details.

Review Installation instructions for the complete installation and clearance requirements.
