Wilwood Rear 12.19-Inch Plain-Rotor Parking Brake Package, Red, Chevrolet / GMC C1500 (1988–1998)

Wilwood configures this rear Dynalite kit around 12.19 × 0.81-inch rotors for Chevrolet / GMC C1500 (1988–1998). The selected red calipers use 4 service pistons each; matching the factory or specified conversion hardware is essential to the complete installation. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc-brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must match the complete braking system.

Technical Details

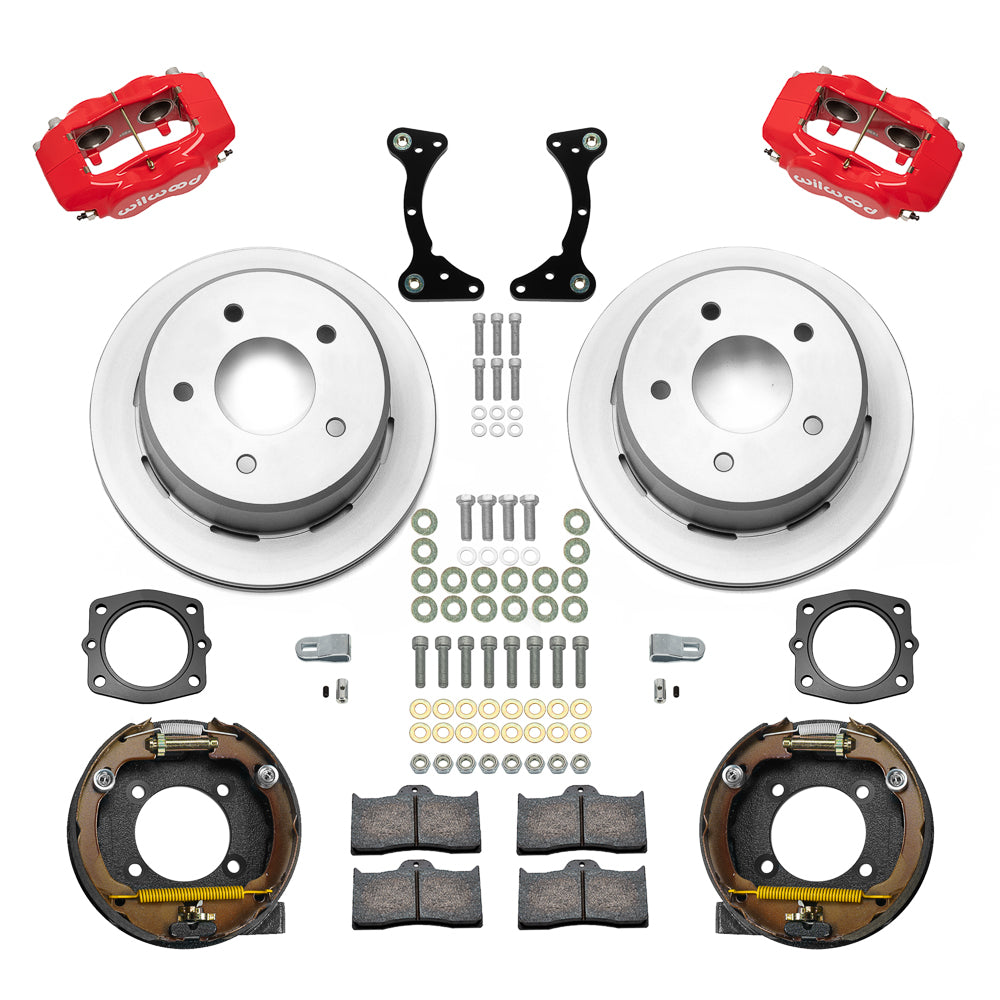

• Manufacturer part number: 140-17541-R; supplied as an axle kit.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Hydraulic sizing: cataloged bore sizes 1.38, 1.38 inches; piston area 3.00 square inches; inlet 1/8-27 NPT.
• Supplied friction pads: Pad compound should be confirmed with the supplied kit; the current component specification and installation parts list differ.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Parking brake: Internal shoe parking brake supplied; modify the original cable with included cable-end adapter kit 330-17540.

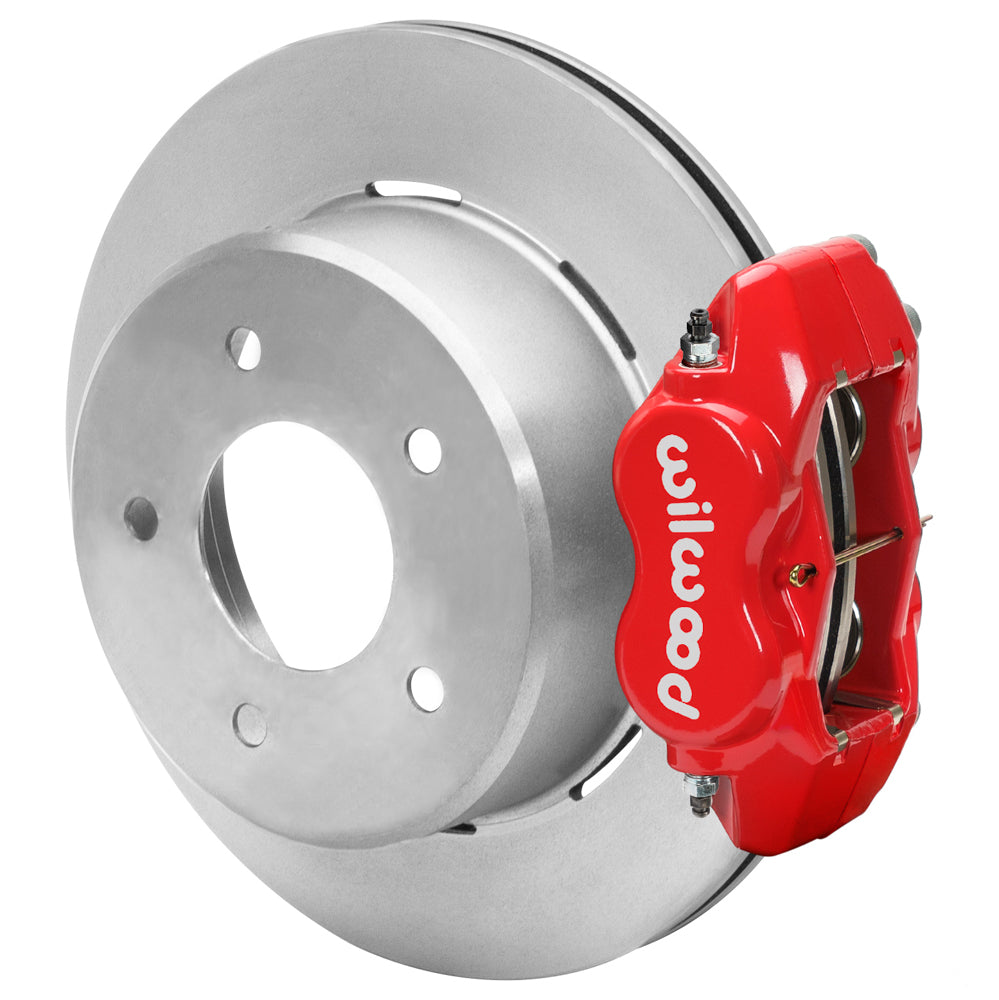

• Service calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Rotor specification: Material: Iron; Type: Ultralite HP 32 & Hat; Style: Plain Face; Surface Finish: Plain.
• Housing-flange requirement: 88-98 C1500 flange; 3.25-inch axle offset, measured using the manufacturer worksheet.
• Rotor/hat mounting-hole pattern: 5 x 5 in; 5 x 127 mm; cataloged hole clearances 0.58 in; 14.73 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.

Fitment & Compatibility

For the five-lug 1988–1998 Chevrolet and GMC C1500 axle flange documented in DS1563. Verify the housing pattern, 3.25-inch measured axle offset and the specific wheel clearance. The supplied internal parking-brake assembly uses the OE cable only after modification with the included cable-end adapter kit. Cable cutting, fitting and adjustment are required; hydraulic hoses are separate. Use the fitment table below to check the complete application and option notes.

PMB Performance brings more than 20 years of parts experience to fitment questions. Send your VIN and details of the installed brakes so we can help check the application.

Review Installation instructions, Technical bulletin for the complete installation and clearance requirements.
