Wilwood Front GT Rotor Brake Package, Red Direct-Mount Calipers, Toyota Tundra / Sequoia (2022–2025)

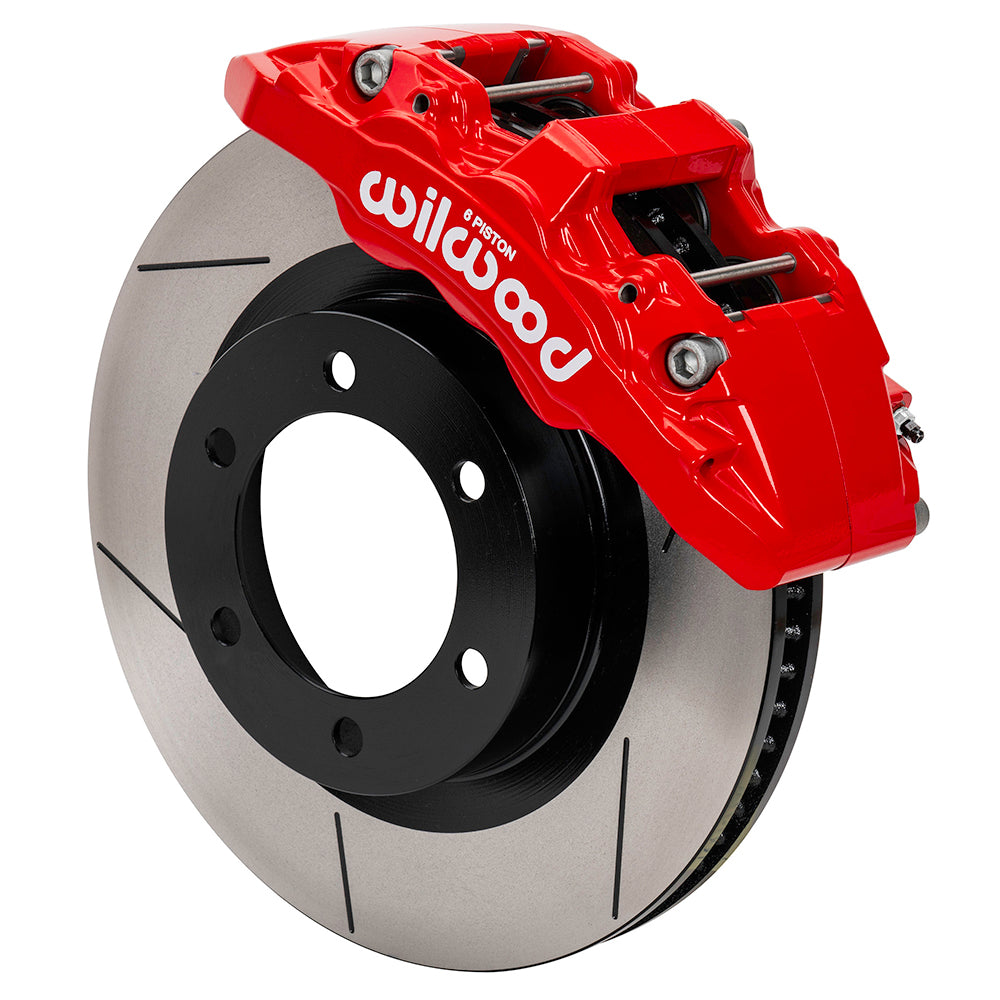

For Toyota Tundra / Sequoia (2022–2025), this front AERO6-DM kit uses red Wilwood calipers and gt slotted rotors. Its 6-piston hydraulic layout and 13.56-inch rotor diameter need to be checked against the actual hub, upright and wheel arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company makes disc-brake systems for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected around the demands of the complete braking installation.

Technical Details

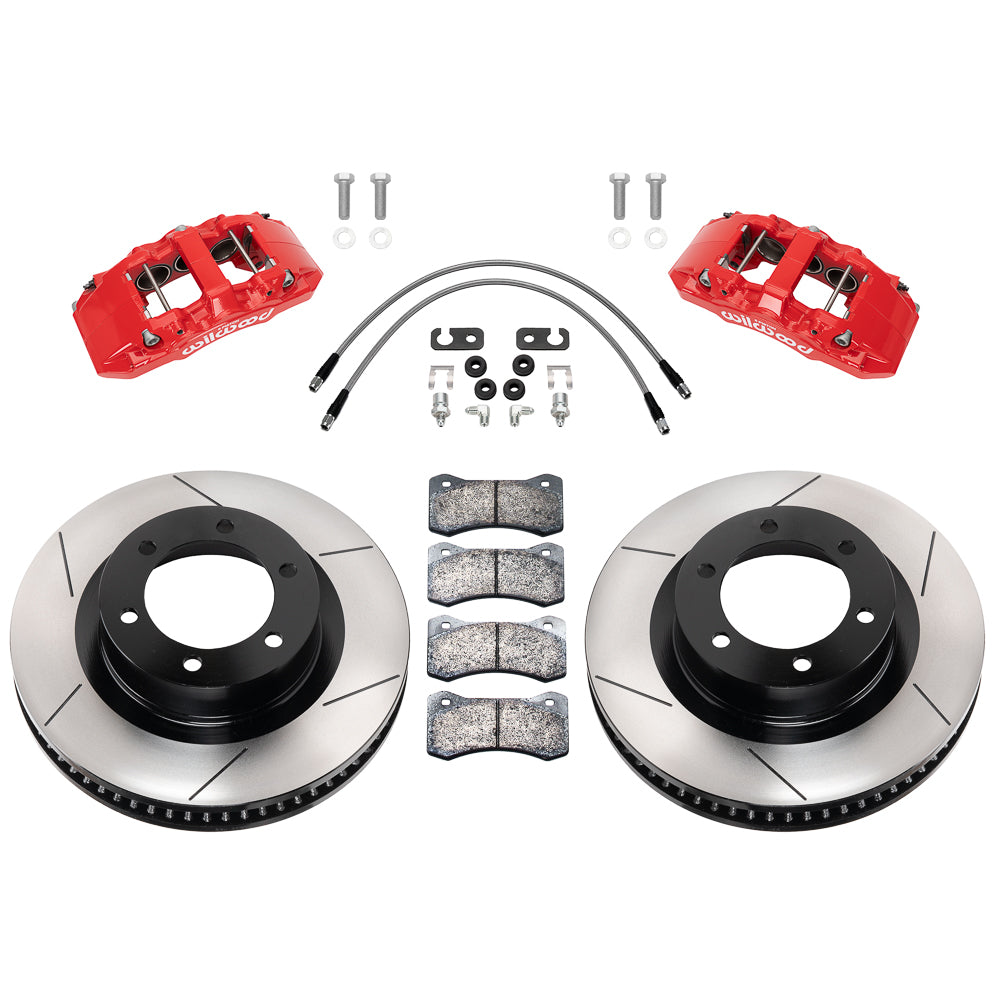

• Manufacturer part number: 140-17528-R; supplied as an axle kit.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Brake rotor size: 13.56-inch outside diameter × 1.30-inch thickness; vented friction section.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.61 in; 15.49 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.

Fitment & Compatibility

Tundra applications start in 2022 and Sequoia in 2023 in the table below. Match the trim and factory upright; DS1562 requires trimming the dust shield for the rotor/caliper assembly. The selected rotors measure 13.56 × 1.30 inches, with their hub register and six-lug drilling checked against the existing hub. Use the full 17-inch wheel template and verify the included line routing.

Talk to PMB Performance about the installed brake arrangement if you need a fitment check. Over 20 years of parts experience informs our review of your VIN, photos and component dimensions.

Review Installation instructions for the complete installation and clearance requirements.
