Wilwood Front AERO6-DM Conversion with Red Calipers & Drilled Rotors for Toyota Tundra / Sequoia (2022–2025)

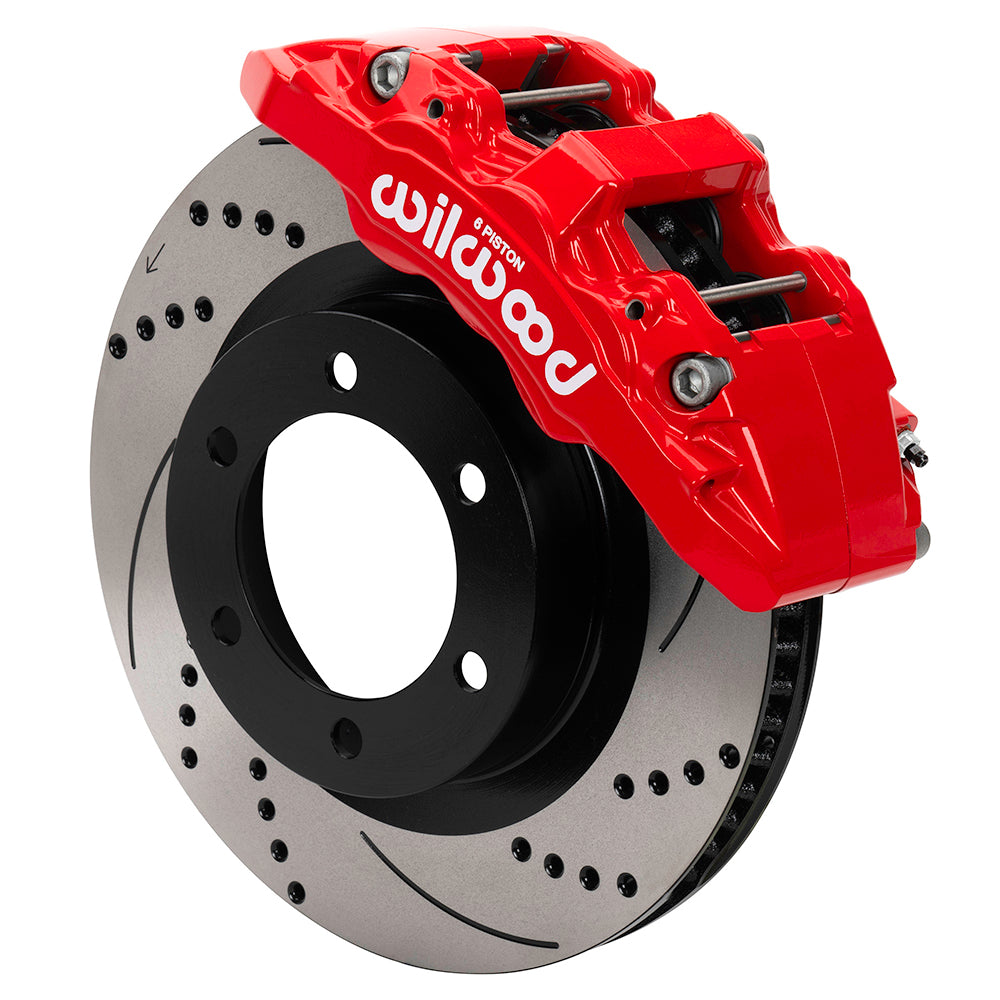

The 13.56 × 1.30-inch srp drilled & slotted rotors define this AERO6-DM front brake package for Toyota Tundra / Sequoia (2022–2025). Wilwood supplies red 6-piston calipers for the specified installation, with the rotor width and mounting hardware selected as a system. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc-brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support motorsport, street-performance and specialized uses, with each component chosen in relation to the complete brake system.

Technical Details

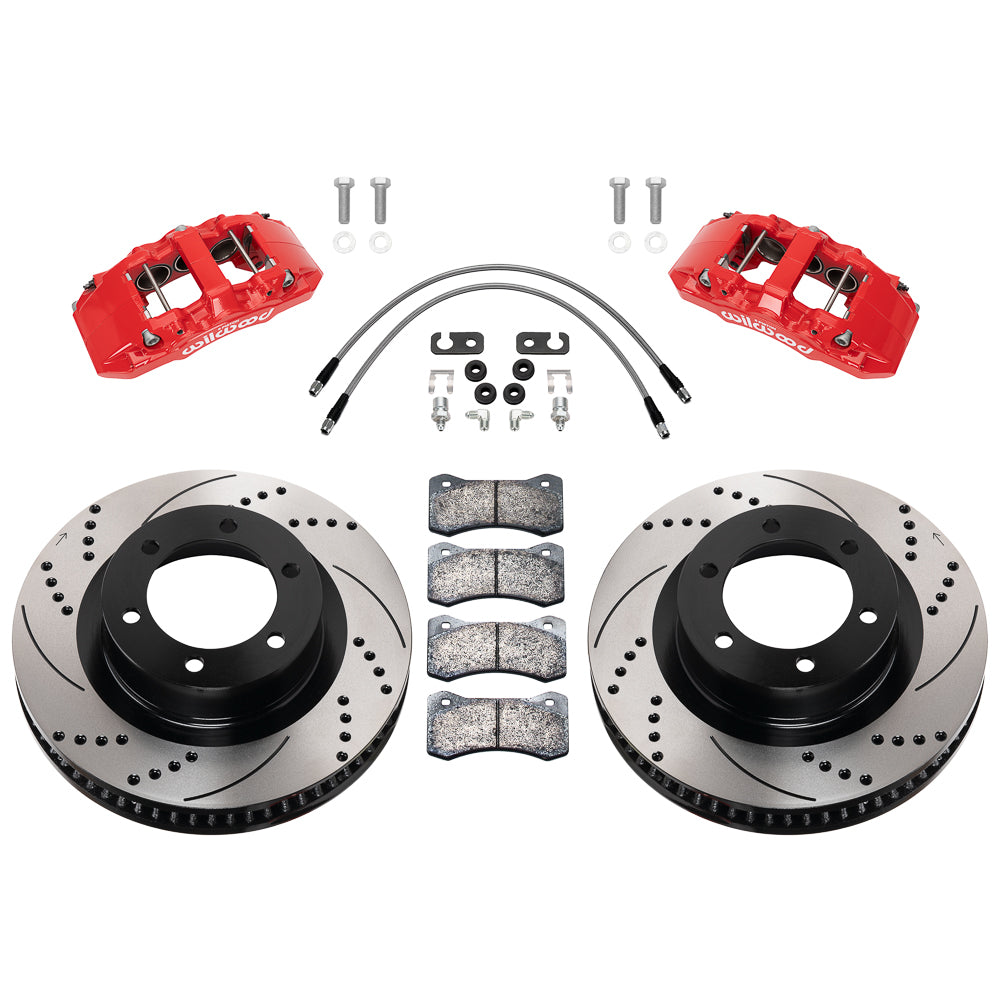

• Manufacturer part number: 140-17528-DR; supplied as an axle kit.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.61 in; 15.49 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Brake rotor size: 13.56-inch outside diameter × 1.30-inch thickness; vented friction section.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.

Fitment & Compatibility

Tundra applications start in 2022 and Sequoia in 2023 in the table below. Match the trim and factory upright; DS1562 requires trimming the dust shield for the rotor/caliper assembly. The selected rotors measure 13.56 × 1.30 inches, with their hub register and six-lug drilling checked against the existing hub. Use the full 17-inch wheel template and verify the included line routing.

PMB Performance has over 20 years of parts experience. Share the VIN and any changes to the axle, upright or wheels before ordering if the brake configuration is uncertain.

Review Installation instructions for the complete installation and clearance requirements.
