Wilwood Front 13.56-Inch SRP Rotor & Black Caliper Kit, Toyota Tundra / Sequoia (2022–2025)

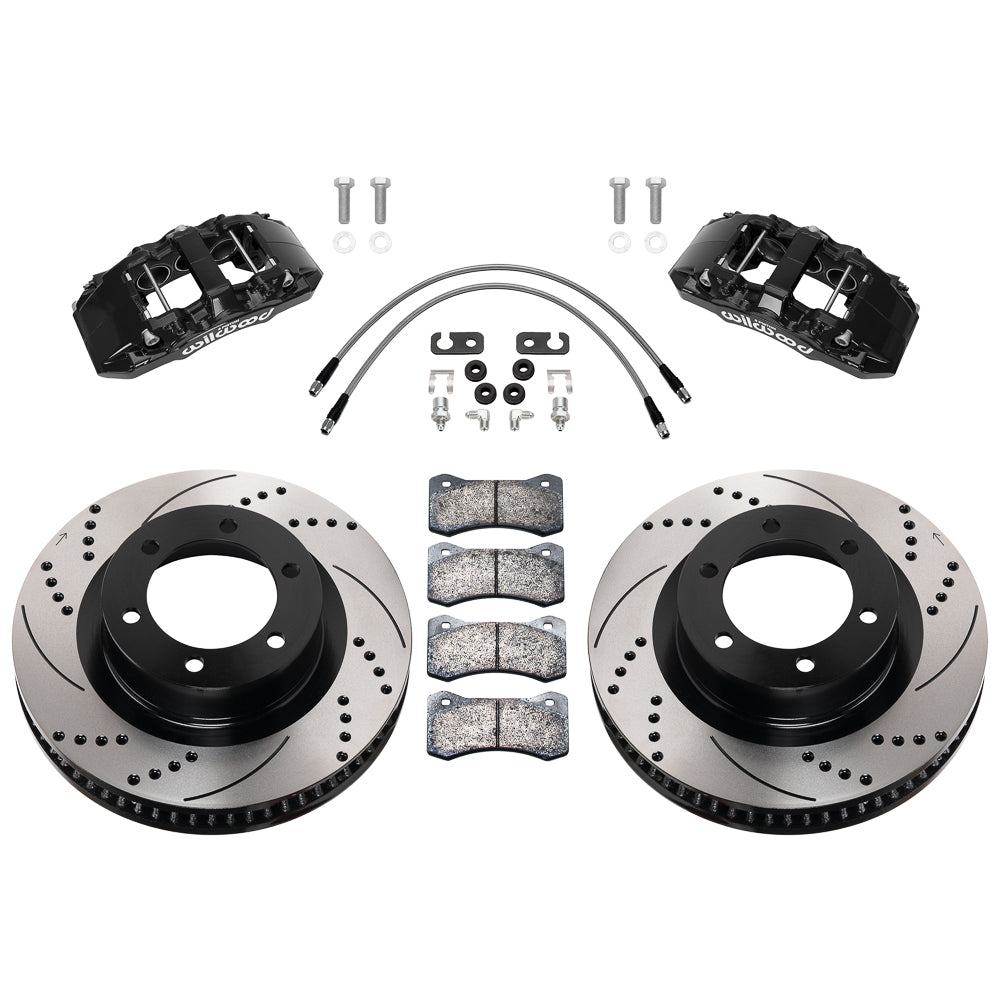

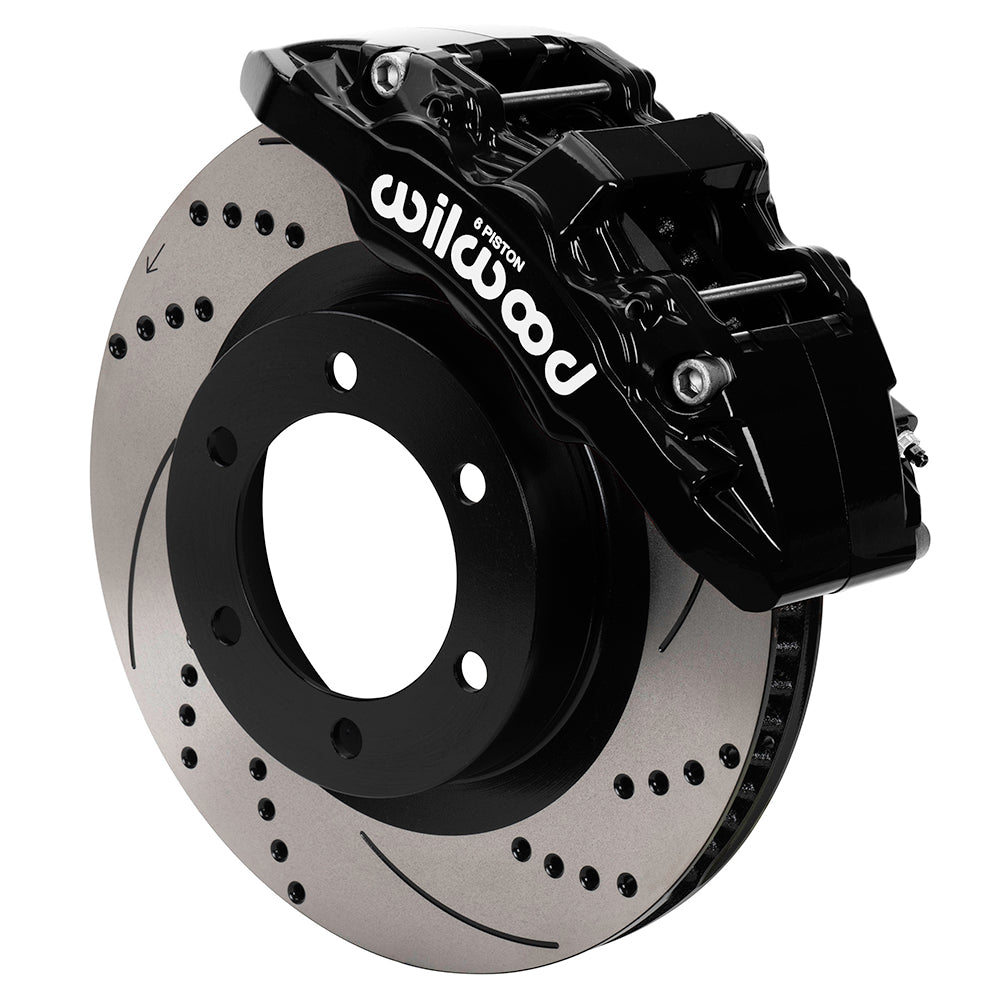

This Wilwood AERO6-DM front brake kit pairs black 6-piston calipers with 13.56-inch srp drilled & slotted brake rotors for Toyota Tundra / Sequoia (2022–2025). The package must match the documented mounting arrangement and wheel clearance before the original brakes are removed. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components serve motorsport, street-performance and specialized applications. The range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the requirements of the complete system.

Technical Details

• Manufacturer part number: 140-17528-D; supplied as an axle kit.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.61 in; 15.49 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Brake rotor size: 13.56-inch outside diameter × 1.30-inch thickness; vented friction section.

Fitment & Compatibility

Tundra applications start in 2022 and Sequoia in 2023 in the table below. Match the trim and factory upright; DS1562 requires trimming the dust shield for the rotor/caliper assembly. The selected rotors measure 13.56 × 1.30 inches, with their hub register and six-lug drilling checked against the existing hub. Use the full 17-inch wheel template and verify the included line routing.

A VIN helps identify the original specification; measured hardware matters after a conversion. PMB Performance draws on more than 20 years of experience when reviewing those details.

Review Installation instructions for the complete installation and clearance requirements.
