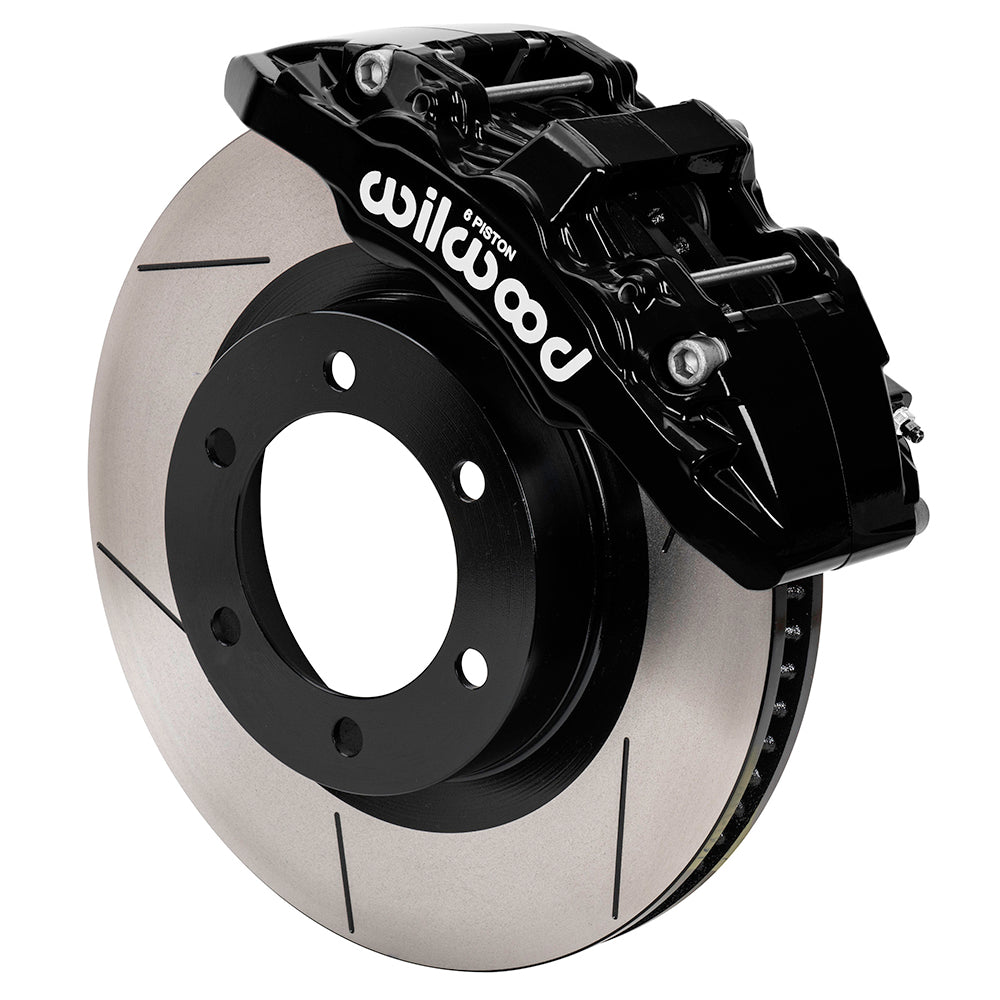

Wilwood Front Black AERO6-DM Calipers, GT Rotors & Lines for Toyota Tundra / Sequoia (2022–2025), 13.56-Inch

Toyota Tundra / Sequoia (2022–2025) applications using the specified mounting arrangement can use this Wilwood AERO6-DM front brake conversion. It combines black 6-piston calipers, pads and gt slotted 13.56-inch rotors, with the exact fitment qualifications set out below. Wilwood Engineering designs and manufactures disc-brake systems and components in Camarillo, California, where the company founded by Bill Wood in 1977 is based. Its range serves specialized applications, motorsport and street-performance vehicles, including calipers, brake rotors, master cylinders, valves, fittings and brake lines chosen to match a complete system.

Technical Details

• Manufacturer part number: 140-17528; supplied as an axle kit.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.

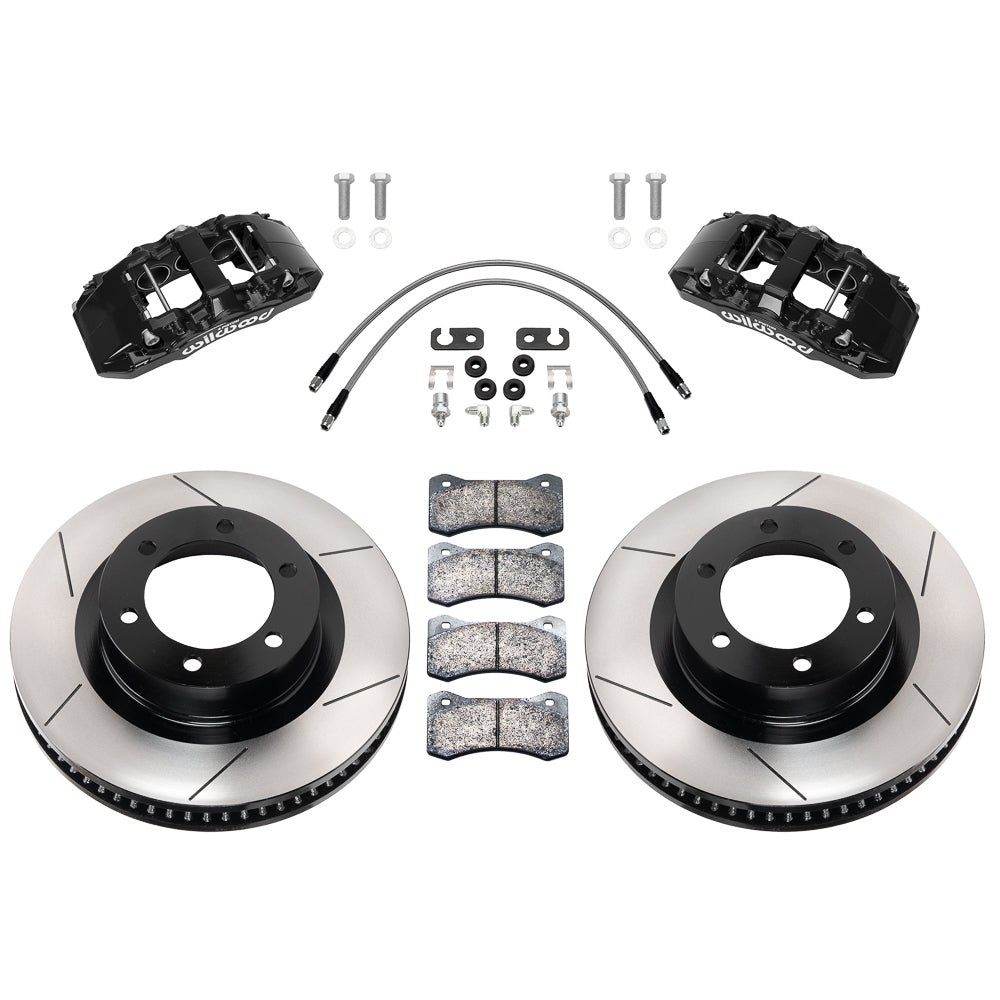

• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.61 in; 15.49 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Brake rotor size: 13.56-inch outside diameter × 1.30-inch thickness; vented friction section.

Fitment & Compatibility

Tundra applications start in 2022 and Sequoia in 2023 in the table below. Match the trim and factory upright; DS1562 requires trimming the dust shield for the rotor/caliper assembly. The selected rotors measure 13.56 × 1.30 inches, with their hub register and six-lug drilling checked against the existing hub. Use the full 17-inch wheel template and verify the included line routing.

For help matching the brake hardware, contact PMB Performance with your VIN, photographs and measurements. Our team has over 20 years of experience with parts and fitment details.

Review Installation instructions for the complete installation and clearance requirements.
